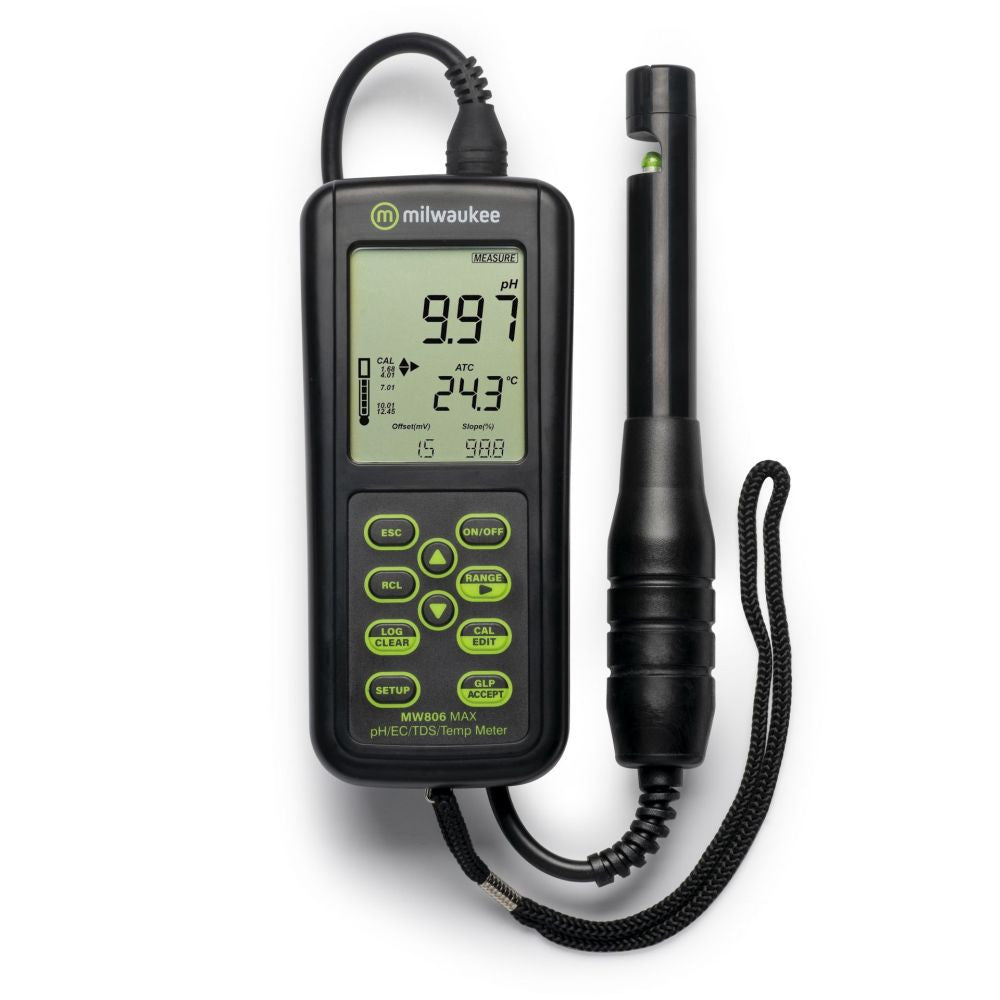

Milwaukee MW806, pH/EC/TDS/Temperature

This combination device Milwaukee MW806 MAX pH/EC/TDS/Temp. 4 in 1 allows you to measure pH, EC (conductivity), TDS and temperature with a single device and a single probe. The dimensions of the device are 20x8.5x5 cm.

This combined device Milwaukee MW806 MAX pH/EC/TDS/Temp. 4 in 1 allows the measurement of pH, EC (conductivity), TDS and temperature with a single device and a single probe.

Specification:

• pH range: -2.00 to 20.00 pH
• EC range: 0.00 to 20.00 mS/cm
• TDS range: 0.5 m/s 0.00 to 10.00 ppt (g/l)
• Temperature range: -20.0 to 120.0 °C (-4.0 to 248 °F)
• pH resolution: 0.01 pH
• EC resolution: 0.01 pH 0.01 mS/cm
• TDS resolution: 0.5 mS/ml TDS resolution: 0.5 mS/ml 0.01 ppt (g/L)
• Temperature resolution: 0.5 pb (PDS) 0.1°C / 0.1°F
• pH accuracy: ±0.01
• EC/TDS accuracy: ±2% of full range
• Temperature accuracy: ±0.5°C / ±0.9°F
• pH Calibration: Standard buffer solutions: pH1.68; 4.01; 6.86; 7.01; 9.18, 10.01; 12.45 and 2 user-defined buffers.
• EC/TDS calibration: One-point calibration; 3 standards: 1413 μS/cm; 5.00 mS/cm; 12.88 mS/cm / One-point shift: 0.00 mS/cm.
• Temperature calibration: Factory calibration
• Temperature compensation: Automatic (ATC) from -20 to 120 °C | Manual (MTC) from -20 to 120 °C
• Conductivity temperature coefficient: 0.00 to 6.00 % /ºC (EC and TDS only) | Default value: 1.9 %/ºC
• TDS coefficient: 0.40 to 0.80; default value: 0.50
• Logging memory: Up to 1,000 log entries (stored in up to 100 batches) | On demand, up to 200 entries | On stability, up to 200 entries | Interval logging, up to 1,000 entries | Log storage location by parameters
• Connection to the computer: 1 micro USB port
• Battery type: USB 2.0: Alkaline batteries AA 3 X 1.5 V (included) | Approx. 200 hours operating time
• Environment: Battery operation during operation: 0 to 50 °C; maximum relative humidity 95 %.
• Meter dimensions: 7.9 x 3.3 x 2 inches (200 x 85 x 50 mm)
• Automatic shutdown: After 10 minutes of non-use
• Housing: Can be used when the device is switched off: Protection class IP67
• Weight of the meter: 260 g (0.57 lb)
• Packaging dimensions: 12 x 11 x 4.5 inches (305 x 280 x 115 mm)
• Package Weight: Package: 3.2 lbs. (1.44 kg)
• Probe Specifications: MA852D/1 Enhanced pH/EC/TDS/Temp Sensor (included)
• Range: pH 0 to 13 | Temperature 0.0 to 60.0 °C (32.0 to 140.0 °F)
• EC electrodes: 2 X graphite
• Reference: Single, Ag/AgCl
• Compound: Agg/Agc: Tissue:
• Electrolyte (pH): Gel (electrolyte):
• Body: Gel (Gel)
• Connection: DIN
• Cable: 1 m (3.3')
