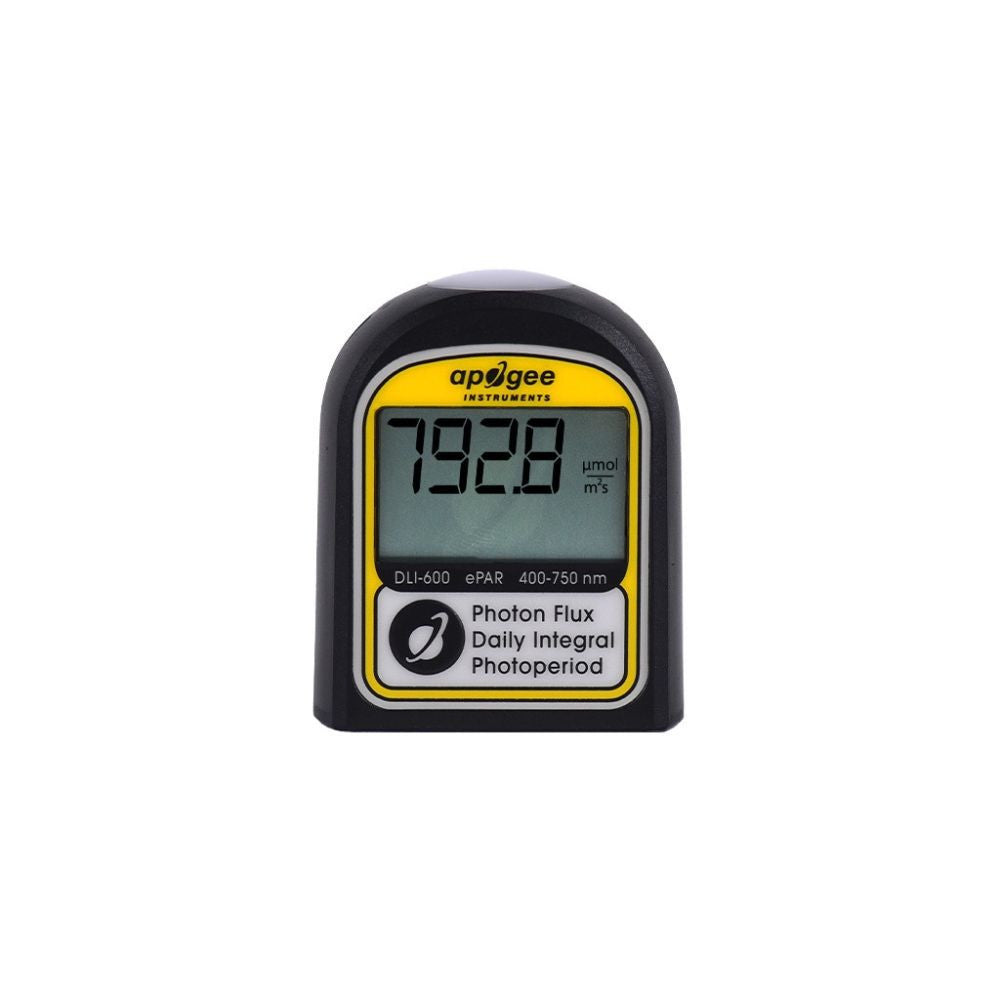

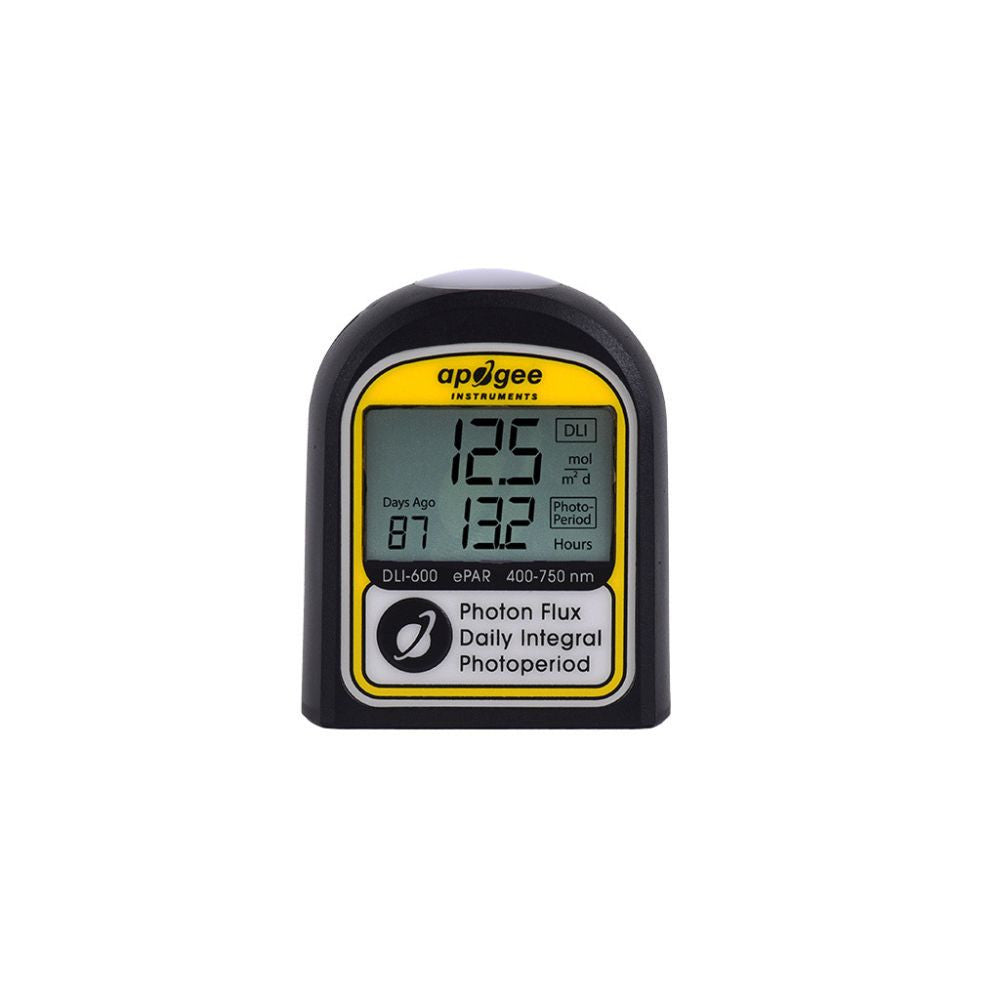

Apogee Instruments DLI-600 ePAR METER

Elegant, easy-to-use device for spot control of the photosynthetically active radiation range (PAR) outside the traditional range of 400-700 nm. The DLI-600 device measures the newly defined radiation range ePAR 400-750 nm, which has been proven to have extended photosynthetically active properties.

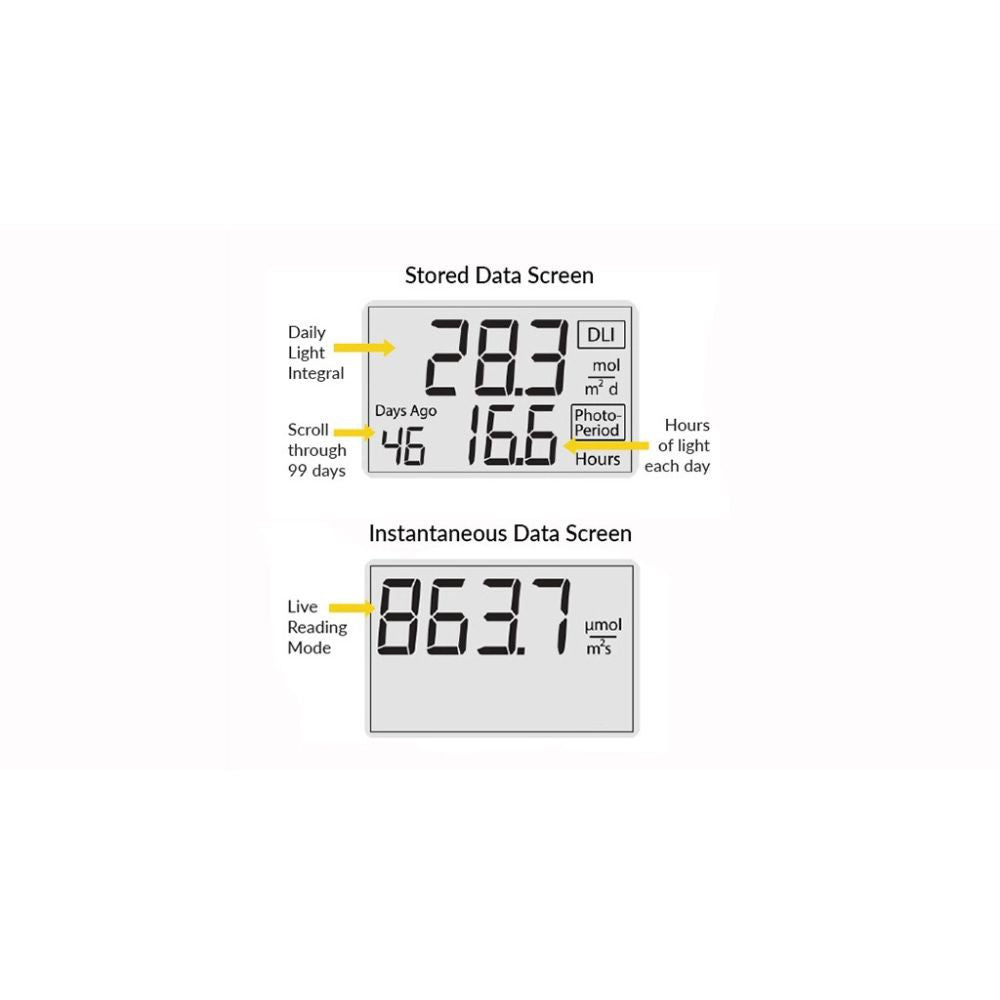

New for 2022, Apogee Instruments' DLI-600 is a sleek, easy-to-use device for spot measurement of photosynthetically active radiation (PAR) outside the traditional 400-700 nm range. The DLI-600 measures the newly defined ePAR 400-750 nm radiation range, which has been shown to have extended photosynthetically active properties. In addition to measuring ePAR, the DLI-600 also measures daily light integral (DLI) and photoperiod. DLI is the total amount of PAR or ePAR hitting the plane within 24 hours, expressed in moles per square meter per day (mol m-2 d-1). Photoperiod is the total time that PAR or ePAR hits the plane within 24 hours and is measured in hours (h). ePAR, DLI and photoperiod affect plant growth and development and are often measured in greenhouses and growth chambers to help with lighting control and decision making.

• Calibration uncertainty ± 5 %
• Repeatability of measurement Less than 0.5%
• Measuring range 0 to 4000 µmol mˉ² sˉ¹
• Long-term drift Less than 2% per year
• field of view 180˚

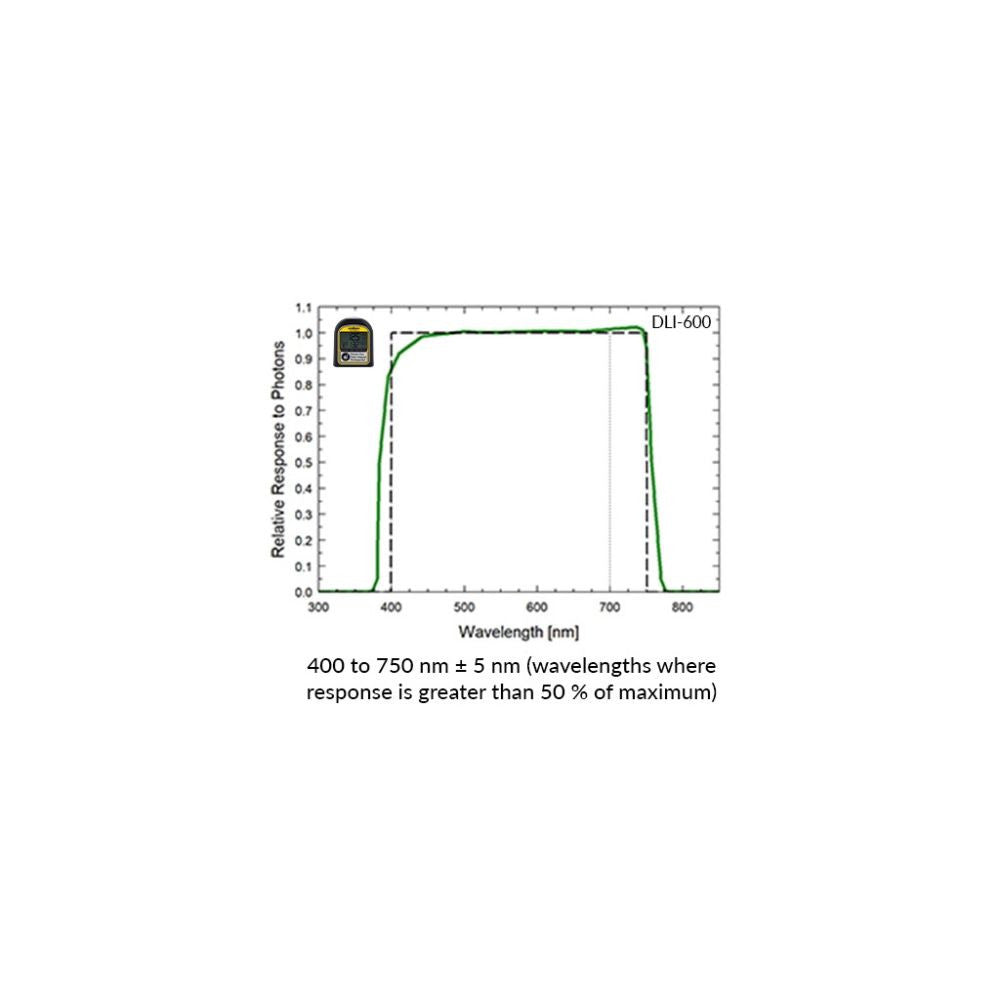

• Spectral measuring range (± 5 nm) 383 to 757 nm
• Directional (cosinal) response ± 5% at a zenith angle of 75˚
• Temperature response -0.11 ± 0.04 % per C
• reaction time 2.5 seconds
• measurement frequency 3 minutes
• Data recording capacity 99 days (DLI and photoperiod), 10 days (30-minute average PPFD/ePPFD)
• Nonlinearity Less than 1% (up to 4000 µmol mˉ² sˉ¹)
• Data resolution (PPFD) 0.1 µmol mˉ² sˉ¹ (if ≥ 1000 no decimal number is displayed on the screen)
• Data resolution (DLI) 0.1 mol mˉ² dayˉ¹
• Data resolution (photoperiod) 0.1 hours
• Connection CSV file via USB-C data transfer
• ADC resolution 24 bit
• Operating environment -40 to 70 C; relative humidity 0 to 100 %.
• protection against ingress IP65
• Compatibility for mounting brass bracket with 1/4-20 thread
• Battery life Approximately 6 months
• dimensions 5x6x2.5 cm
• Weight 67 g
• 4-year warranty on material and processing defects
• Made in the USA
