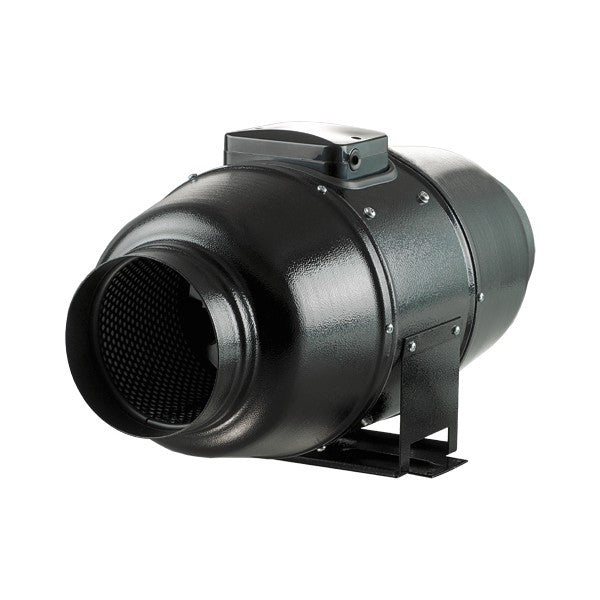

Dalap AP Quiet 125 mm, 230/340 m3/hr

Quiet duct fan TT AP with a diameter of 125mm and a capacity of 230/340 cubic meters per hour. Two-stage motor with ball bearings.

smoked TT -AP tube fan with a diameter of 125 mm and 230/340 cubic meters per hour. Two-speed motor with ball bearing.

Extremely quiet fan for TT Stille/Dalap AP 125 is compatible with all types of 125 mm air pipe. It is suitable for pipes with a higher pressure drop. TT Stille AP sound fans combine quality parameters and a wide range of axial and radial fans.

Main advantages of the soundproof fan TT Silent/Dalap AP 125, 230/340M3/H
strong> Two-speed motor with thermal fuse & nbsp;
Up to 40,000 hours of operation & nbsp;
span> < span style = "background-co-acor: initial;">Semi-radial metal blades guarantee increased airflow: initial; ">Outer steel cover is coated with black polymer & nbsp;
=" background-color: initial; "> covered. Extremely quiet operation without vibrations & nbsp;
span> Allows both horizontal and vertical cabling & nbsp;
/ h & nbsp;
< / span> Low power consumption (power) 25/30W & nbsp; "> 1650/2310 revolutions per minute & nbsp;
-Color: initial;"> Optimal pipeline with a maximum length of 17 meters & nbsp;
IP x4 & nbsp; Operating temperature 60 degrees & nbsp; span> p>

All piping is designed for wide use in kitchens, apartments, offices, growing areas and greenhouses. They will also do their job in workshops, basements and other rooms to require active ventilation. The TT AP 125 soundproof fan can be attached to the wall or ceiling thanks to the mounting plate. A 2-phase motor and ball bearings guarantee maximum performance in both horizontal and vertical positions. The speed of the fan can be set either fixed before the fan starts or using an external switch, which is not included and must be purchased. Detailed instructions on wiring and use can be found in the Czech instructions.
