GSE Step transformer 2.5A - temp/hysteresis for 1 fan

The step transformer controller has the special feature that the ventilators make no noise in the lower rotation. The step transformer controls the fan speed by itself 6-step up/down according to the temperature. The temperature as hysteresis (sensitivity) can be adjusted by two button.

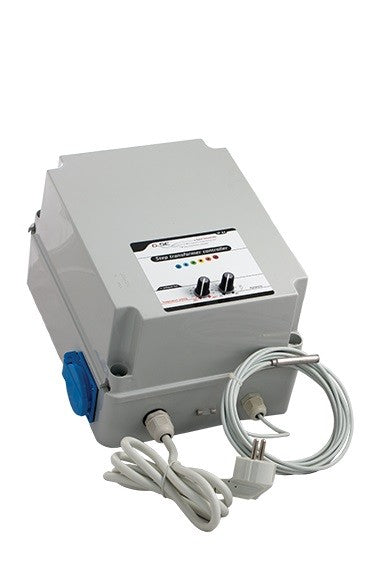

The controller is a finished part and is ready to use. This Relial fan controller comes complete with a sealed waterproof cover, plug with hinged lids and a low voltage sensor, making it perfect for humid rooms. The sensor comes with a long cable and a 4 meter long cable and can be extended up to 50 meters.

Sizes and technical data:

Case: WXHXD = 200x250x180mm

Controller: WXHXD = 265x300x205mm < / p>

designed for: 2a / 600W < / p>

Volt: 230 V / 50 Hz

digital sensor 5V measures temperatures from -55 ° C to +125 ° C (–67 ° F to +257 ° F)

0.5 ° C accuracy from –10 ° C to +85 ° C

Protection class: IP54

Setting range:

Temperature: 20c ° - 30c °

Temperature hysteresis: 2-8c °
