GroLab TankBot

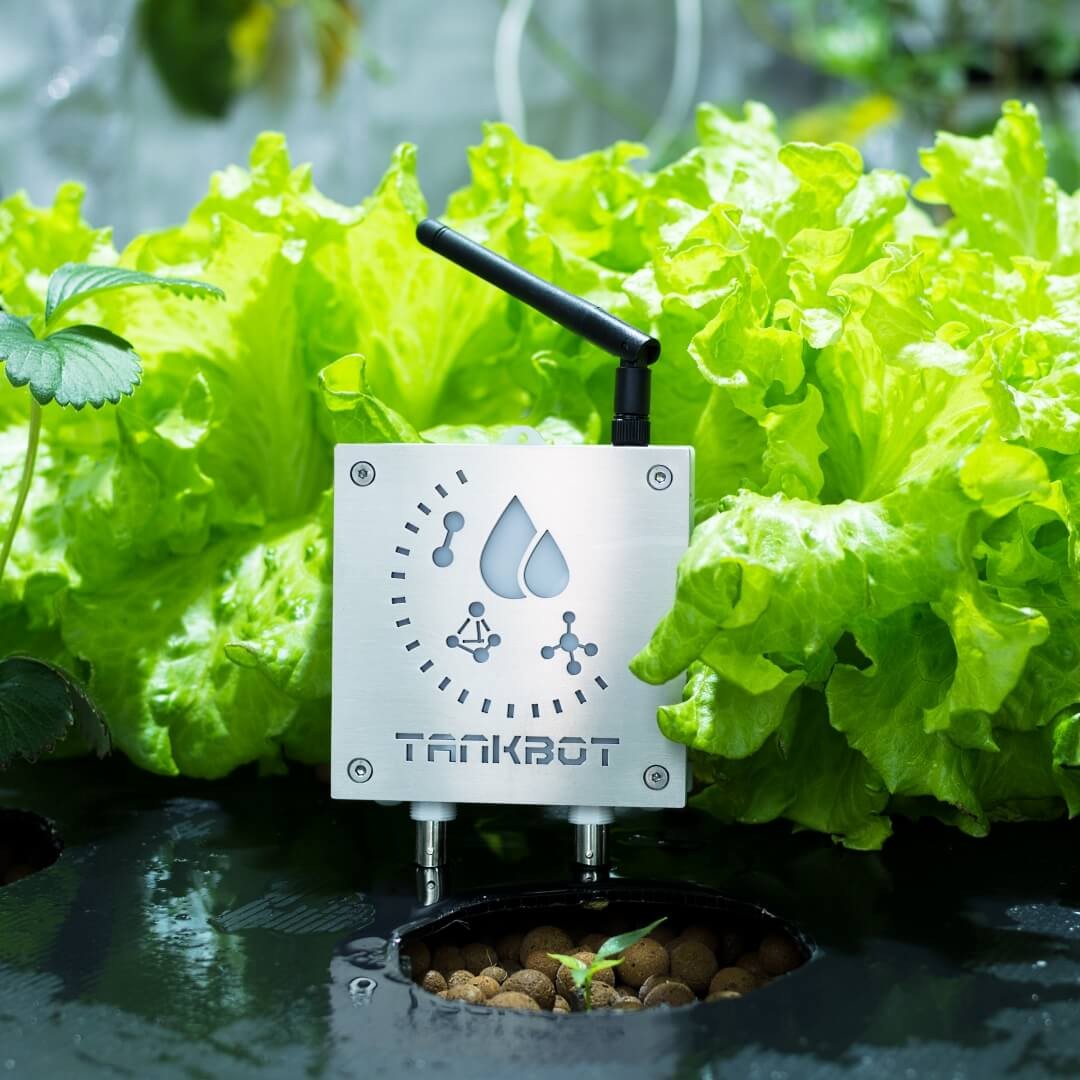

Multifunctional controller not only enables precise control and management of irrigation tanks, but can also automatically control fertilizer dispensers and pumps. It monitors pH value, EC value, water temperature and tank level.

The control unit is the most versatile and precise module in the GroLab series. The device has four adjustable 12V ports for controlling water, air or peristaltic pumps and solenoid valves. Ports for relays and circuit breakers allow the connection and automatic control of irrigation, lighting or ventilation.

The TankBot allows the connection of:
USB 2.1 B
RP-SMA connector
Input: 12V/1A; 24V/2A
Power output: 12V/1A; 24V/2A (2.5mm 4-pin male)
4x 12V actuators (2.5 mm 4-pin male)
4x switch sensor (2.5 mm 4-pin male)
temperature sensor (2.5 mm 4-pin male)
pH connection BNC
EC connector BNC

Specifications:
Voltage: 12V/2A adapter
Plug for connection: 1 m
USB cable: 2 m
Communication frequency: 2.4 GHz
Dimensions: 91x108.9x28.7 mm

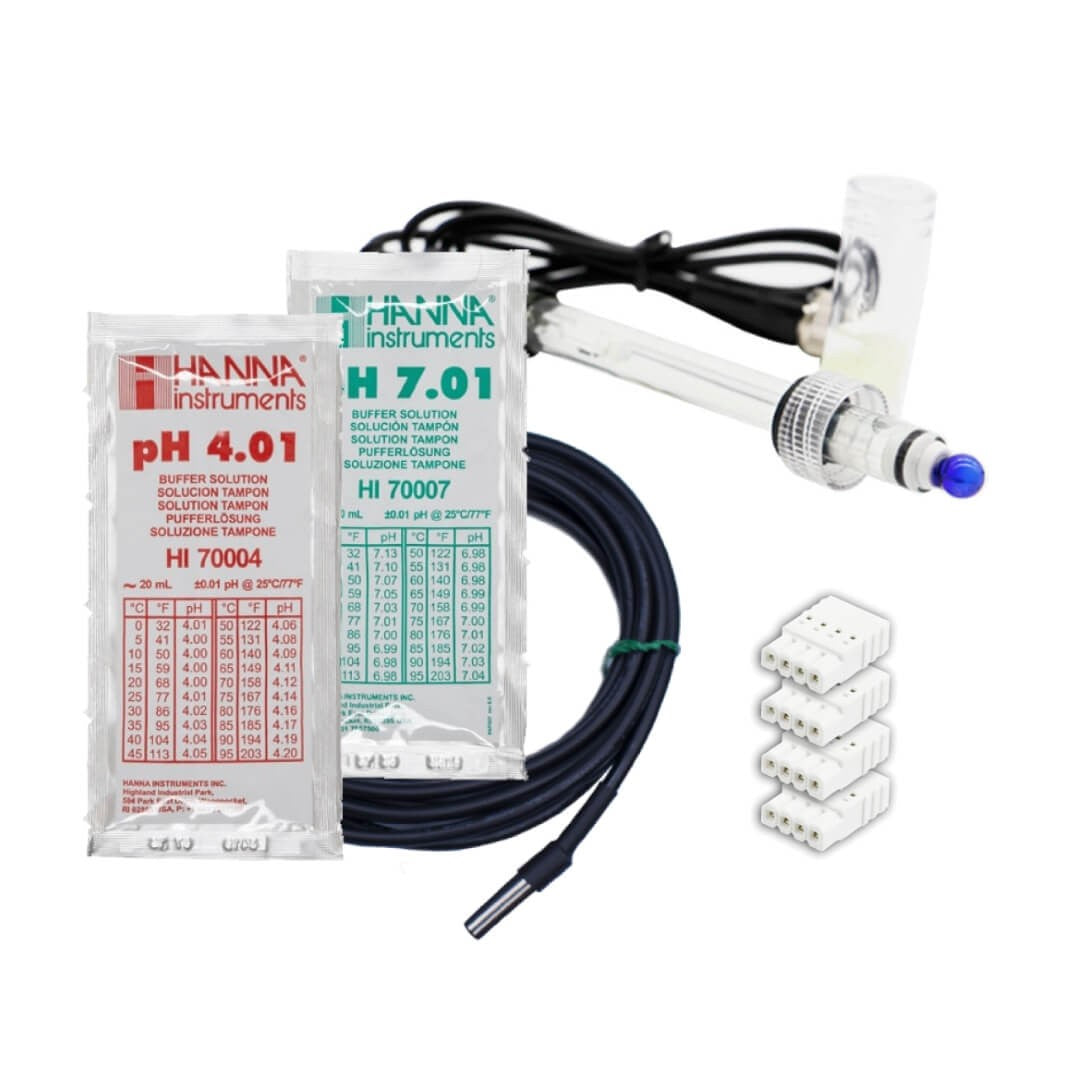

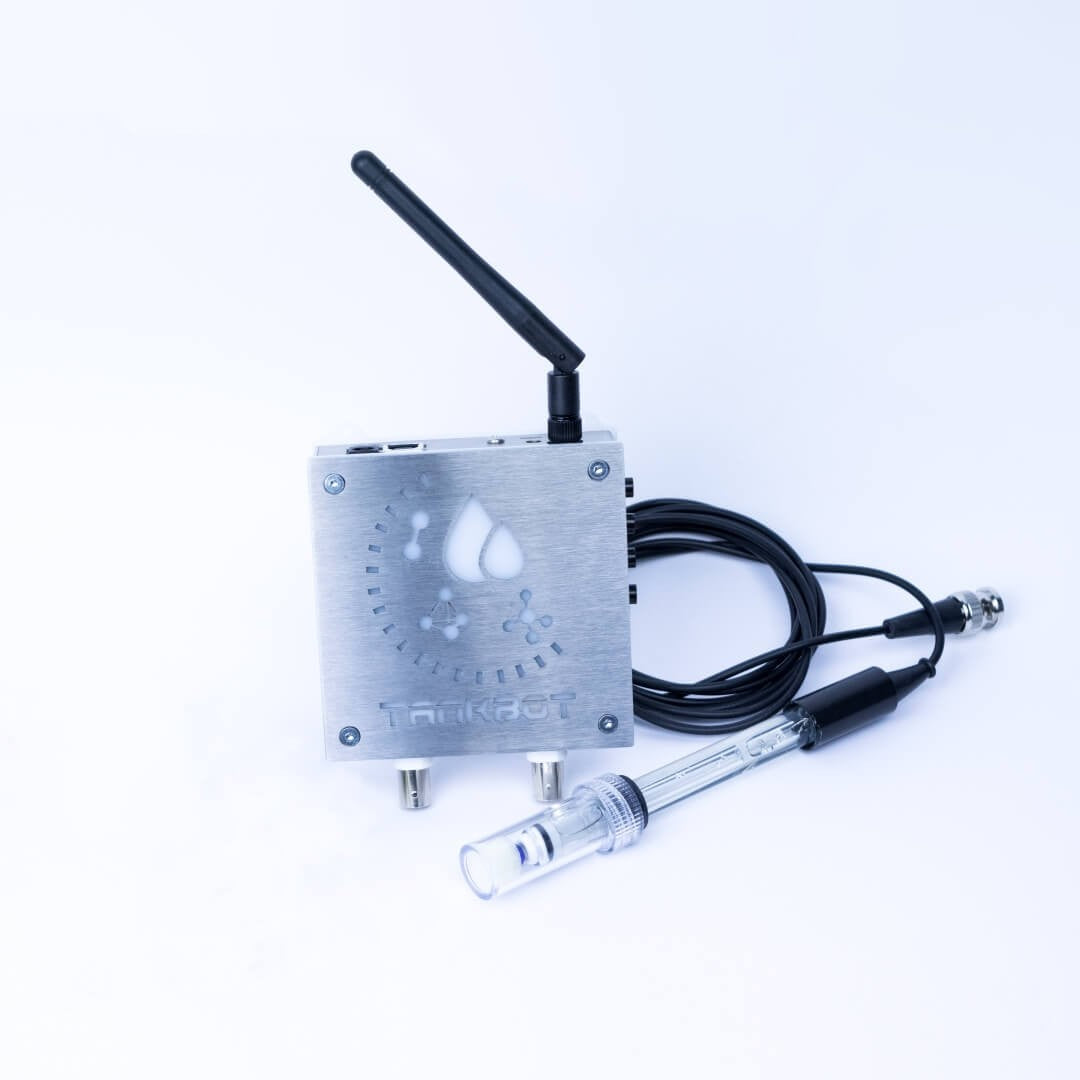

Specifications for pH probe for TankBot
Dimensions: 140x12 mm
Cable: 2 m
Temperature range for pH measurement: 0° to +80° C
pH measuring range: 0 - 14 pH
Resolution pH measurement: 0.01 pH
Accuracy pH measurement: ± 0.01 pH
Response time: < 1 minute

Specifications for Temperature Sensor for TankBot
Dimensions: 50x10 mm
Cable length: 2 m
Temperature measuring range: -40° to +110° C
Accuracy of temperature measurement: ± 0.5º C
