GSE Step transformer 2.5A - humidity/temp/hysteresis for 2 fans

GSE step transformer 2A - humidity/temperature/hysteresis for 2 fans

GSE Humidity and Temperature Step Transformer is designed to control the speeds of the inlet and outlet fan according to the current temperature and humidity. When regulating, the excess noise at start-up or at lower speeds can be minimized.

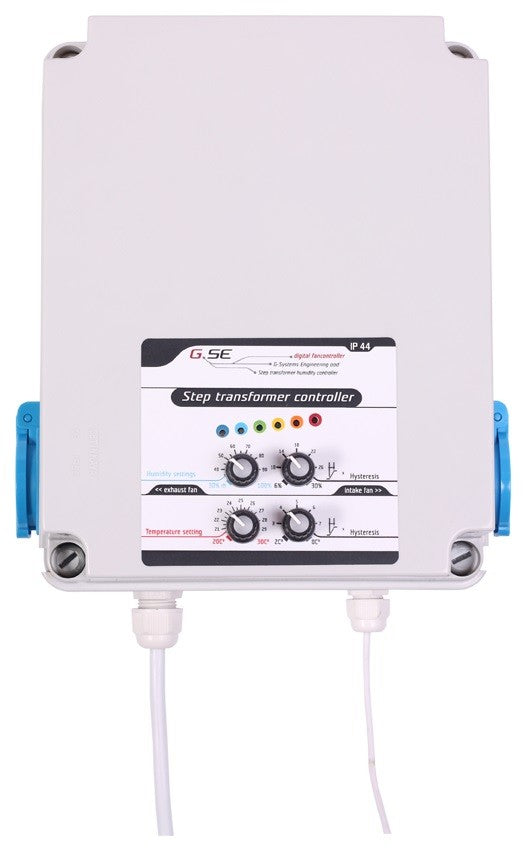

The controller controls the speed in 6 steps. The temperature (20-30°C) and the humidity (30-100%) including their hysteresis (2-8°C / 6-30%) can be easily adjusted with four buttons. The inlet fan always runs one step behind the outlet fan, thus preventing the formation of odors.

The temperature sensor measures the temperature in the range of -55 to +125°C with an accuracy of 0.5° in the range of -10° to +80°C. The sensor measures the humidity with an accuracy of 4.5% relative humidity.

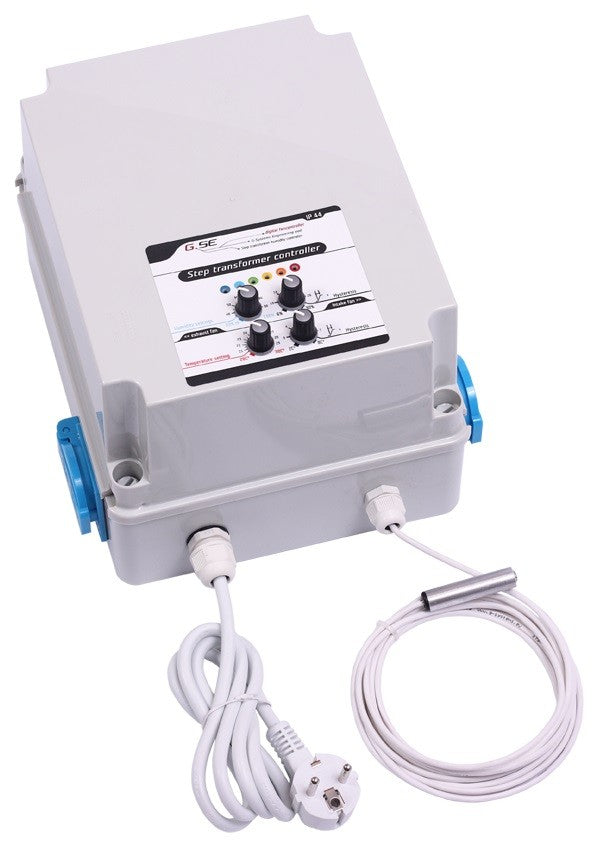

Another advantage is the robust waterproof housing with a protection rating of IP54. In addition to the cable with the power connection, the complete device also contains a temperature and humidity sensor on a four-meter-long cable.

Sizes and technical data:

Housing: WxHxD = 200x250x180mm

Controller: WxHxD = 265x300x205mm

Designed for: 2.5A (for 2 fans)

Prim. Voltage: 230V / 50HZ

Sec. Voltage: 80V, 110V, 140V, 170V, 200V, 230V automatic steps 50HZ

Digital sensor 5V measures temperatures from –55°C to +125°C (–67°F to +257°F)

Accuracy of 0.5°C from –10°C to +85°C

Humidity accuracy ±4.5%rh

protection class IP54

Setting range:

Temperature: 20C° - 30C°

Temperature hysteresis: 2-8C°

Humidity: 30% - 100%

Humidity hysteresis: 6%-30%
