Convenient lighting control is within your reach. By controlling the e-Series lamps through the Gavita Master controller, you easily gain full control of your lighting with maximum safety and easy installation and use.

Convenient lighting control is within your reach. By controlling the e-Series lamps through the Gavita Master control unit, you can achieve full control of your lighting with maximum safety and easy installation and use.

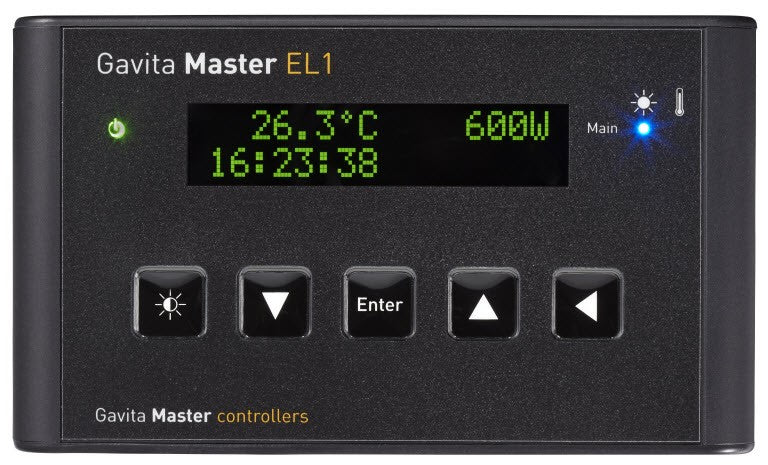

The Gavita Master EL1 control unit

The Gavita Master EL1 control unit is designed for simultaneous switching, regulation and temperature control of one to forty Gavita e-series lamps. It is sufficient to connect the control unit to the lamp. If there are several lamps, use the enclosed distributors (see diagram), set the switch on the lamps to EXT (external control), connect the control unit and individual lamps to the mains and the installation is complete.

The control unit can switch the individual lamps according to built-in clocks, adjust and display their light output (in percentage or absolute power in watts) and even simulate sunrise and sunset to gradually adapt to the climate in the grow room. This control unit replaces expensive timers and contactors and also eliminates the power surge when the lamps are switched on.

The main advantages of this control unit are the functions of automatic power reduction and emergency shutdown. A temperature rise above a certain threshold can irreparably damage your plants. If the temperature sensor registers a rise above the set value, the control unit automatically reduces the power of the lamp to prevent further temperature rise. The display and the warning LED indicate that this condition has occurred and also indicate whether this has happened before while you were away. If for any reason the previous measures fail and the temperature rises to unacceptable values ​​despite automatic control, the system will emergency shut down all connected devices.

Features and Benefits

• No clamps.

• No power surge.

• Easy and safe installation, the control unit is a low voltage device.

• Short circuit protection.

• Double temperature protection (automatic control and emergency shutdown).

• For controlling up to forty ballasts.

• Suitable for e-Series DigiStar and Pro ballasts or complete lamps, including plasma lamps.

• Simulated sunrise and sunset with adjustable duration from 0 to 30 minutes.

• Displays the light output as a percentage of maximum light output or in watts.

• Setting the time format between twelve and twenty-four hours and the temperature units in °C or °F

• Calibrated temperature sensor.

• Meets certification requirements.

specifications

• Twenty-four hour time format: Yes

• Adjustable light output: 50 to 115%

• For ballasts with power: 400/600/750/1000 W

• Display of light output: percentage or absolute in watts

• Automatic dimming when the set temperature is reached: Yes

• Emergency shutdown when the set temperature is reached: Yes

• Setting the duration of simulated sunrise and sunset: Yes

• Outputs: 1 (main)

• Maximum number of ballasts per output: 40

• Total maximum number of ballasts: 40

• Temperature sensors: 1 (main)

• Output terminals alarm NO/NC: -

• External switching modules (ECM): -

• Warranty: 3 years

• EAN code: 8718403051735 (EU) | 8718403051759 (UK) | 8718403051773 (US) | 8718403051797 (AU)
