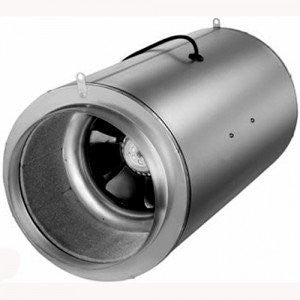

Can-Fan ISO-MAX 250 mm - 1480 m3/hr

The Iso-Max is a completely unique diagonal duct fan designed to be effective, powerful and quiet.

However, the Iso-Max is a special type of fan because the fan is integrated into a silencer. It has a full metal housing and a special foam has been added to reduce noise.

Its light weight, strong performance and quiet operation make the Iso-Max the most advanced choice for air technology applications.

The Max-Fan is a unique product from Can-Fan that no one else on the market offers. This highly efficient fan has a rotor, a stator and two propellers that are able to produce a uniform airflow, unlike a propeller that produces airflow but can swirl it. A uniform airflow comes into contact with the pipe less, so the pressure does not drop and is more efficient.

The market needs a powerful discharge side fan with low noise levels. For this reason, Can-Fan has developed the Iso-Max with an integrated silencer in a metal housing, available in different versions with or without a 3-speed switch.

Both the Max-Fan and the Iso-Max feature an integrated thermal switch and hanging brackets for easier use.

Very important! Can-Fan fans (such as Max-Fan, Iso-Max, Can Fan RK, Can Fan RS, Can Fan RKW, Can Fan RK-4-Speed, Isotex) are optimized to work perfectly with Can filters (Can Original, Can Lite or Can 38 Special). We strongly recommend combining Can-Fan with Can filters for the best possible results.

Fan specifications:

• Nominal voltage: 230V

• Frequency: 50Hz

• Maximum current: 0.9A
• Noise level: 30dB
• Power consumption: 160W
• Maximum operating temperature: 50°C
• Weight of the fan: 10.1kg
• flange size: 250mm
• Air flow: 1480m3/hour
