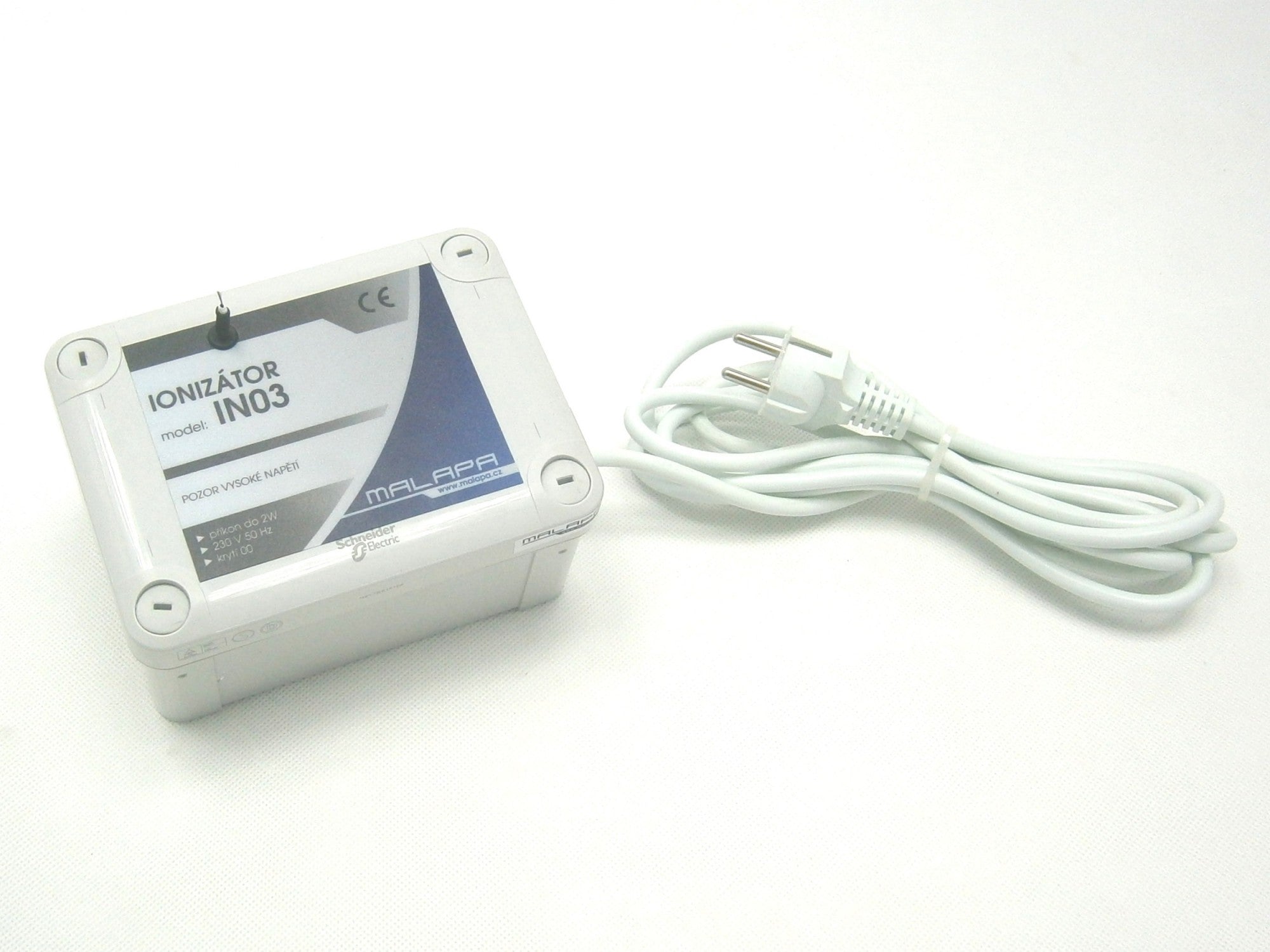

Malapa IN03 Air Ionizer

Use: Neutralization of odors and particles in restaurants, toilets, kitchens, hospitals, food industry, entrance halls, waiting rooms, changing rooms, department stores, low-energy buildings, relaxation rooms, salt caves, sports halls and gyms, dusty environments at home and in industry.

air ionizer IN03

Improved and quiet air ionizer IN03. The negative ion generator IN03 does not produce ozone. Tested by the National Institute of Health.

Enjoy fresh, negative ion-enriched air in rooms without having to use large, noisy devices.

The IN03 air ionizer has been successfully tested by the State Institute of Health. The air ionizer is a device for enriching the air with negative ions. The device is a powerful generator of negative ions and covers even larger rooms up to 150m³. No harmful ozone was detected in the IN03 ionizer. For long-term stays in the room, we recommend staying at least 2.5 m away from the device. Negative ions are released into the room using a special emitter made of carbon fiber. The negative ions (anions) generated are colorless and odorless (note: do not confuse them with ozone).

Wherever electrical and electronic devices are used, electrostatic charges create positive ions (cations) that cause nervousness and fatigue. This air ionizer enriches the air with negative ones (anions). These negative charges balance out the positive charge and thus improve the breathing quality of the air. The device neutralizes electrostatic charges and increases the concentration of negative ions.

The ionizer is not equipped with a fan or filters that need to be replaced (eliminates further unnecessary expenses). The device can be attached to the wall using the hooks provided. Long-term and fault-free operation even in extreme conditions, proven design.

Using the ionizer:

Neutralization of odors and enrichment of the air with negative ions in rooms of restaurants, toilets, kitchens, hospitals, at home, in food processing plants, waiting rooms, changing rooms, department stores, low-energy buildings, relaxation rooms, salt caves, sports halls, fitness studios, anti-static workplaces. At home, in food processing plants, in industry or in science...

Measured concentrations of light negative ions:

• At a distance of 50 cm from the emitter, the average concentration of negative ions is 3.0×105 per cm²
• At a distance of 100 cm from the emitter, the average concentration of negative ions is 8.0×104 per cm²
• At a distance of 150 cm from the emitter, the average concentration of negative ions is 2.8×104 per cm²
• At a distance of 200 cm from the emitter, the average concentration of negative ions is 1.2×104 per cm²
• At a distance of 250 cm from the emitter, the average concentration of negative ions is 4.8×103 per cm²
• At a distance of 300 cm from the emitter, the average concentration of negative ions is 1.3×103 per cm²
• At a distance of 350 cm from the emitter, the average concentration of negative ions is 7.5×102 per cm²
• At a distance of 400 cm from the emitter, the average concentration of negative ions is 5.4×102 per cm²

Installation of the ionizer:

The ionizer generates high voltage but with minimal current. Install the device in a safe and dry place with good air circulation indoors. The device must be installed out of the reach of people and animals. The optimal distance from the device for long-term stay of people and animals is 2.5 m. The device must not come into contact with water or other liquids (do not use in bathrooms).

Maintenance of the ionizer:

Always follow safety precautions when carrying out maintenance. Turn off the device and unplug it before handling it. The emitter (brush) can become dirty over time; it can be cleaned by vacuuming or scraping (or by replacing it with a new one). Do not use this product and its accessories contrary to these instructions! The ionizer does not require any maintenance other than cleaning the brush. Do not use abrasive cleaners or chemical solvents (paint and varnish thinners) as these could damage the surface. The recommended cleaning method is mechanical.

Technical data of the ionizer IN03: Power supply- 230V AC 50Hz

Power consumption - up to 2W

Concentration of negative ions (anions) - average from 3.0×105/ 1cm² (50cm) to 5.4×102/ 1cm² (400cm)

ozone concentration - not detected

Room size - up to 150m³

Main switch with LED display (shows the connection to the power grid)

Power cable with plug - 3 meters

Working temperature -20°C to 70°C Humidity - 10% to 70% RH (non-condensing)

Storage temperature- 0°C to 45°C Emitter material (brush)- Carbon fiber

Size of the emitter (brush)- 12mm, total 31mm

Size of the box- length 170, width 120, height 85mm

Mounting- on the surface/wall (brackets)

total weight- 900g

Box-ABS

protection class - IPXX

RoHS

,
