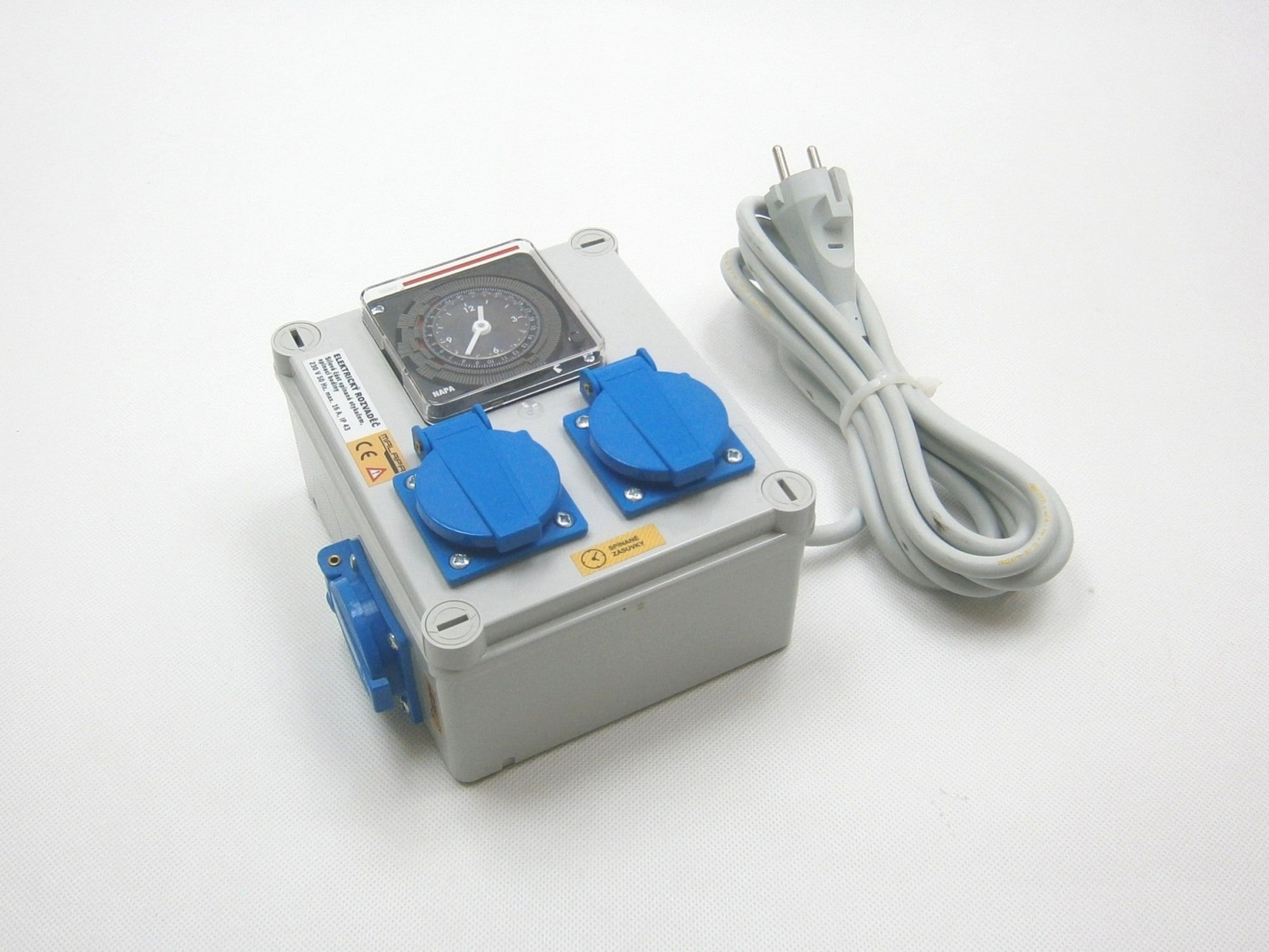

Malapa distribution board 2+1 (230V) controlled by KL00 timer

KL00 distributor 2+1. The smallest wall distributor from the KL series is designed for the power supply and switching of electrical devices. It supplies and switches inductive and resistive loads. KL00 Distributor 2+1. The smallest wall distributor from the KL series is designed for power supply and switching of electrical equipment. It supplies and switches inductive and resistive loads. It can be used for switching lighting or lighting greenhouses, pumps, sewage treatment plant motors, billboards, heating, heating and many other regular activities. Switching the sockets on and off on this device is carried out by a noiseless high-performance relay. The switching contacts made of precious metal alloys can switch inductive loads (eg discharge lamps) up to 1200 W or resistive loads up to 2500 W (eg direct heaters). The distributor has integrated fire protection and forces the contactor (turns off the controlled sockets). The timers with integrated emergency power supply guarantee operation even in the event of a power failure of up to 200 hours. The timers are programmed by pulling out and inserting pins along the dial. The distributor can also be switched manually. Advantages - The timers do not react to electromagnetic waves or magnetic fields. The relay is quiet when switching. Socket designation - Switched sockets - 2 single-phase sockets controlled by timers (ballast - max. 2x 600 W) Unswitched socket - 1 single-phase socket under constant current. Technical data KL00 - supply cable with plug 3 meters, max. load 3500 W (16A), each socket max. - 600W inductive load - 1200W resistive load 230V 50Hz AC, supply cable with plug - 3 meters, protection class - IP 43, environment - normal, outside temperature - +40°C to -10°C, total weight - 1250gr, size - length 165, width 140, height 95mm, housing - ABS. 2 year warranty.
