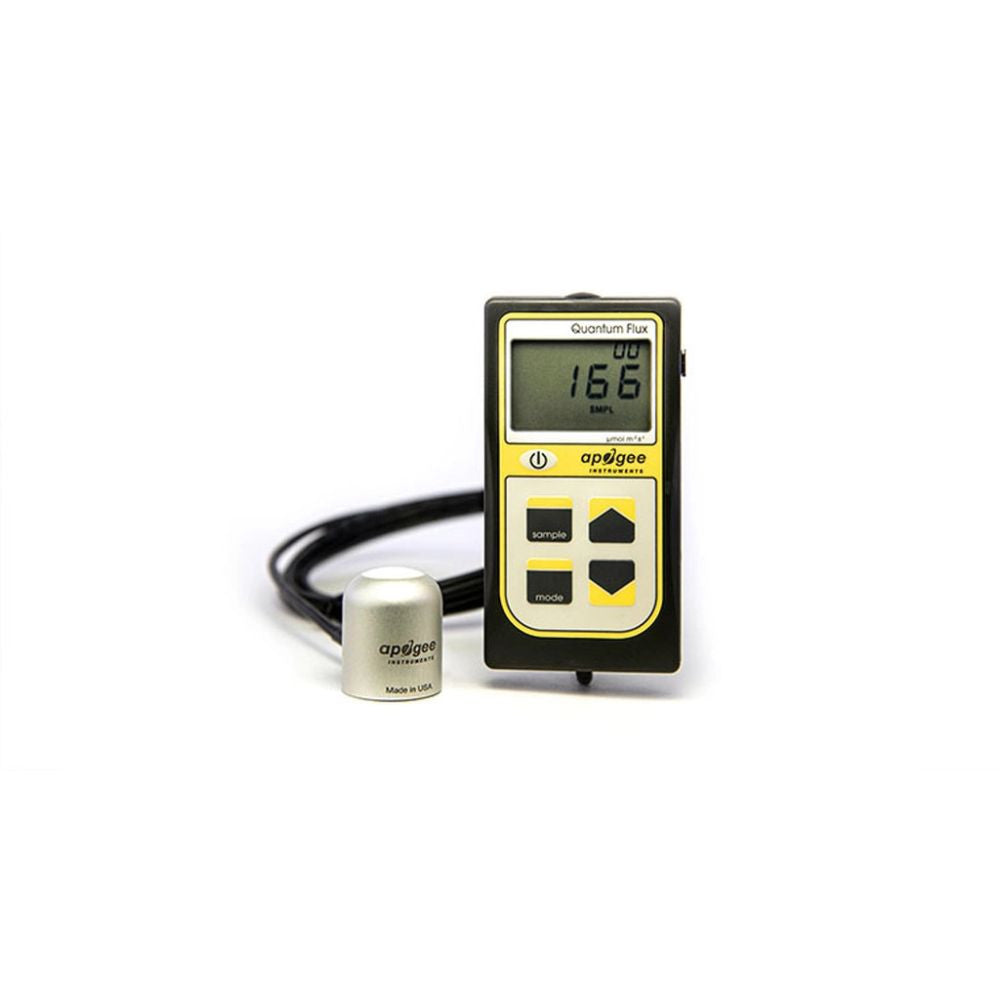

Apogee Instruments MQ-610 400-750nm ePAR Meter

The Apogee MQ-610 ePAR meter is designed to accurately measure the new enhanced photosynthetically active radiation (ePAR) from 400 to 750 nm for all light sources. Suitable for scientists and professional growers.

The laboratory measurement of the newly defined wavelength 400-750 nm (ePAR) has been found to be more photosynthetically active than the traditional wavelength 400-700 nm (PAR). The MQ-610 device can accurately measure the distant red photons (700-750 nm) found in many new generation LED lights, the sun and other light sources, which cannot be measured by conventional PAR meters.

• Calibration uncertainty ± 5 %
• Measuring range 0 to 4000 µmol m-2 s-1
• Measurement repeatability Less than 0.5%
• Long-term drift (instability) Less than 2% per year
• Nonlinearity Less than 1% (up to 4000 µmol m-2 s-1)
• Response time Less than 1 ms
• field of view 180°
• Spectral range 400 to 750 nm ± 5 nm (wavelengths at which the response is greater than 50%)
• Directional (cosine-based) response ± 2% at a zenith angle of 45°, ± 5% at a zenith angle of 75°
• Azimuth error Less than 0.5%
• Slope error Less than 0.5%
• Temperature response -0.11 ± 0.04% per C
• Total daily error Less than 5%
• Housing Housing made of anodized aluminum with acrylic diffuser
• protection class IP68
• Operating environment -40 to 70 C; relative humidity 0 to 100%; waterproof to a depth of 30 m
• Dimensions of the measuring device 126 mm length, 70 mm width, 24 mm height
• Dimensions of the sensor diameter 30.5 mm, height 37 mm
• Weight (with 5 m cable) 140 g
• Cable 2 m shielded twisted pair cable; additional cable available; TPR jacket
• 4-year warranty on material and processing defects
• Made in the USA
