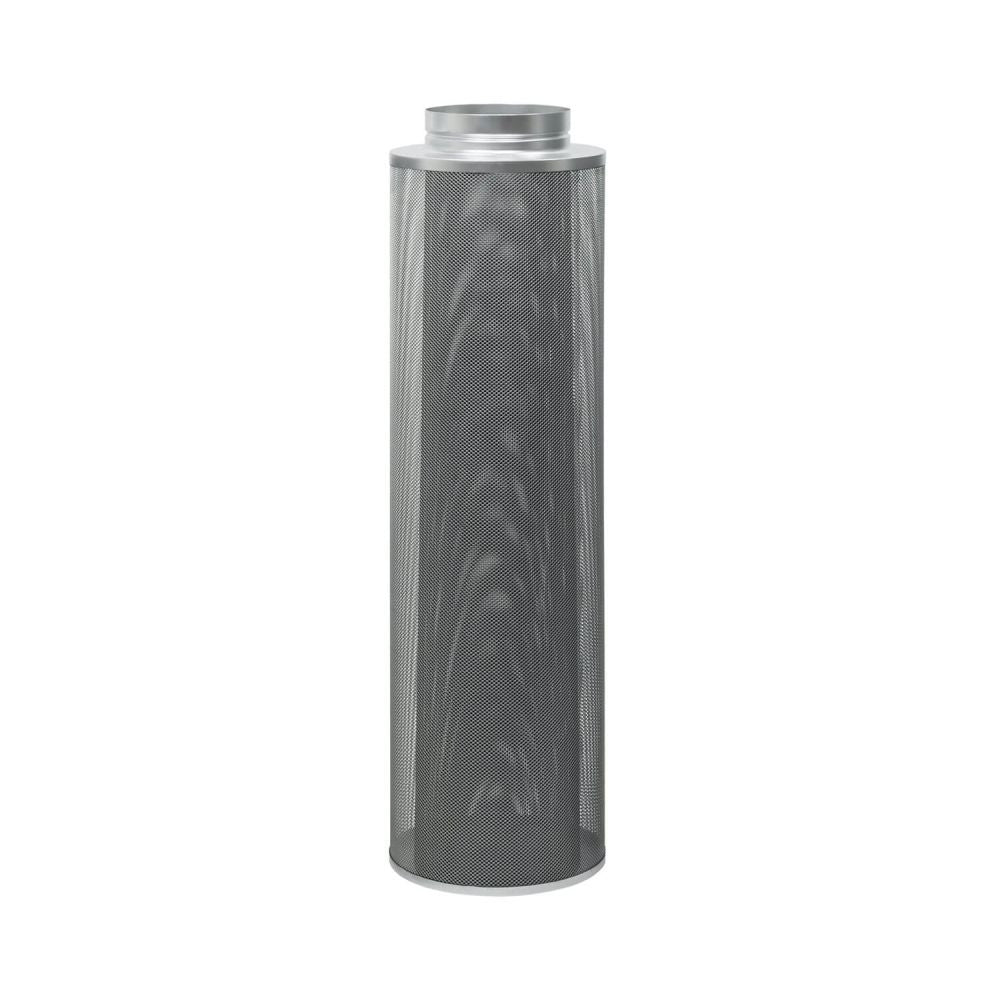

Prima Klima Carbocone CTC75 K3603, 160 mm, 1000 m3/h, length 800 mm

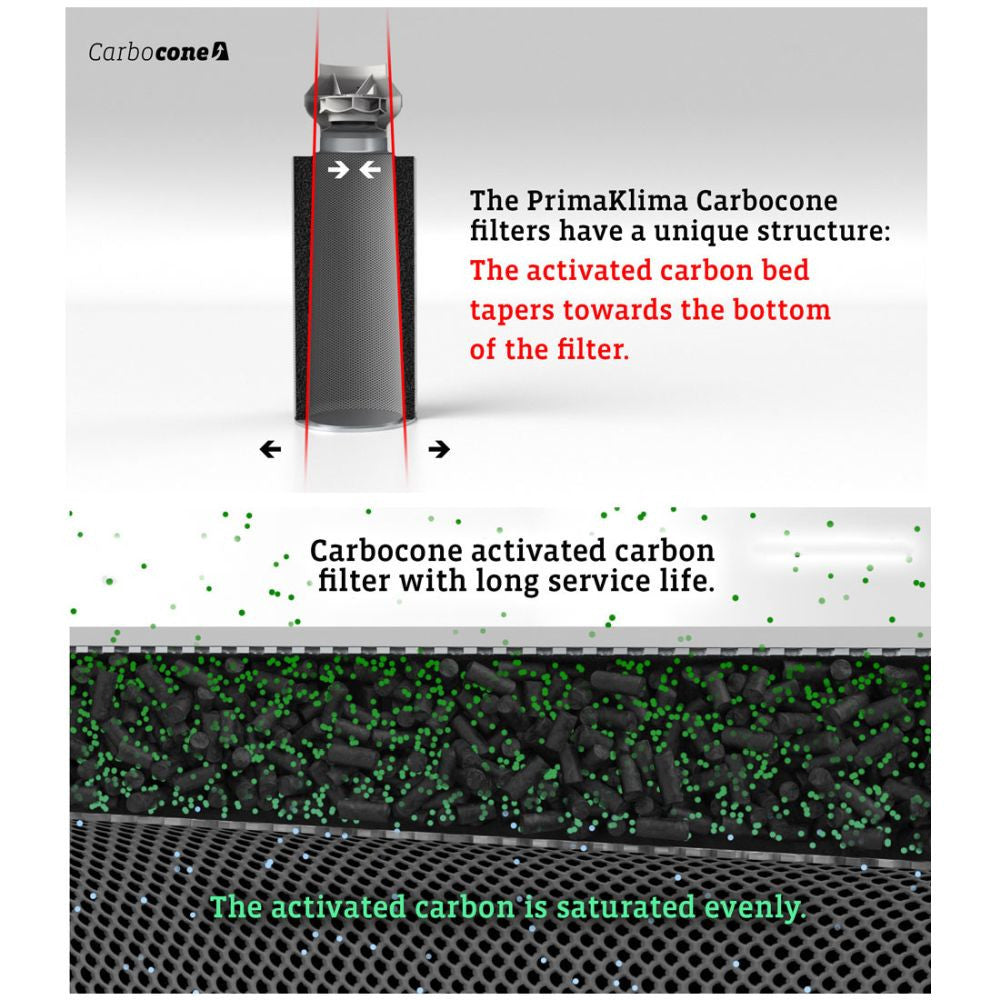

Improved patented conical design of the inner basket brings great benefits such as extending the service life, increasing filtration efficiency by up to 30% and even use of activated carbon.

Improved patented conical design of the inner basket brings great advantages such as extended service life, increased filter efficiency by up to 30% and even use of activated carbon. Highly effective filtration with activated carbon of the same quality as the Industry Line. Available with flange in many practical sizes.

Features and Benefits:

• 30% longer service life compared to conventional filters
• 30% better adsorption efficiency
• 100% pure activated carbon
• lifespan up to 3 years
• Effective adsorption of particles and reliable odor removal
• High-quality metallic printing elements
• With dust pre-filter
• activated carbon CTC-75 pellets


Specifications:

• flange: 160mm
• Length: 800mm without flange
• Diameter: 240mm
• Max. air flow: 1000m³/h
• Incl. pre-filter: K3703
• Weight: 9.7Kg
• Activated carbon: 6Kg


Patented system: EP2735354A1

Recommended fans: Prima Klima with 160 mm diameter
