Trolmaster Carbon-X Controller & Cable Set (CDA-1)

The TrolMaster Carbon-X system critically monitors CO2 levels in up to 13 separate zones/rooms. The system can display both high warnings (up to 30,000 ppm) and low warnings (5,000 ppm).

The TrolMaster Carbon-X system critically monitors CO2 levels in up to 13 separate zones/rooms. The system can have both high alarm levels (up to 30,000 ppm) and low alarm levels (5,000 ppm). The high and low alarm limits are user adjustable to comply with local regulations for supplemental indoor CO2 use.

The Carbon-X system can also control various devices such as fans, dampers, main CO2 valves and can also send a signal to the fire department via a connection to the fire/alarm panel in the building. Automatic CO2 shutdown is achieved by connecting the main CO2 solenoid valve in the building in series with one of the system control modules. The settings for each device connected to the system can be user selected and easily adjusted.

Each room monitored by the Carbon-X system also requires an audio-visual alarm to alert staff to the CO2 levels in the room and whether or not it is safe to be in that room.

The TrolMaster app can be used to remotely monitor the Carbon-X device and receive custom alerts/notifications when high CO2 levels are detected.

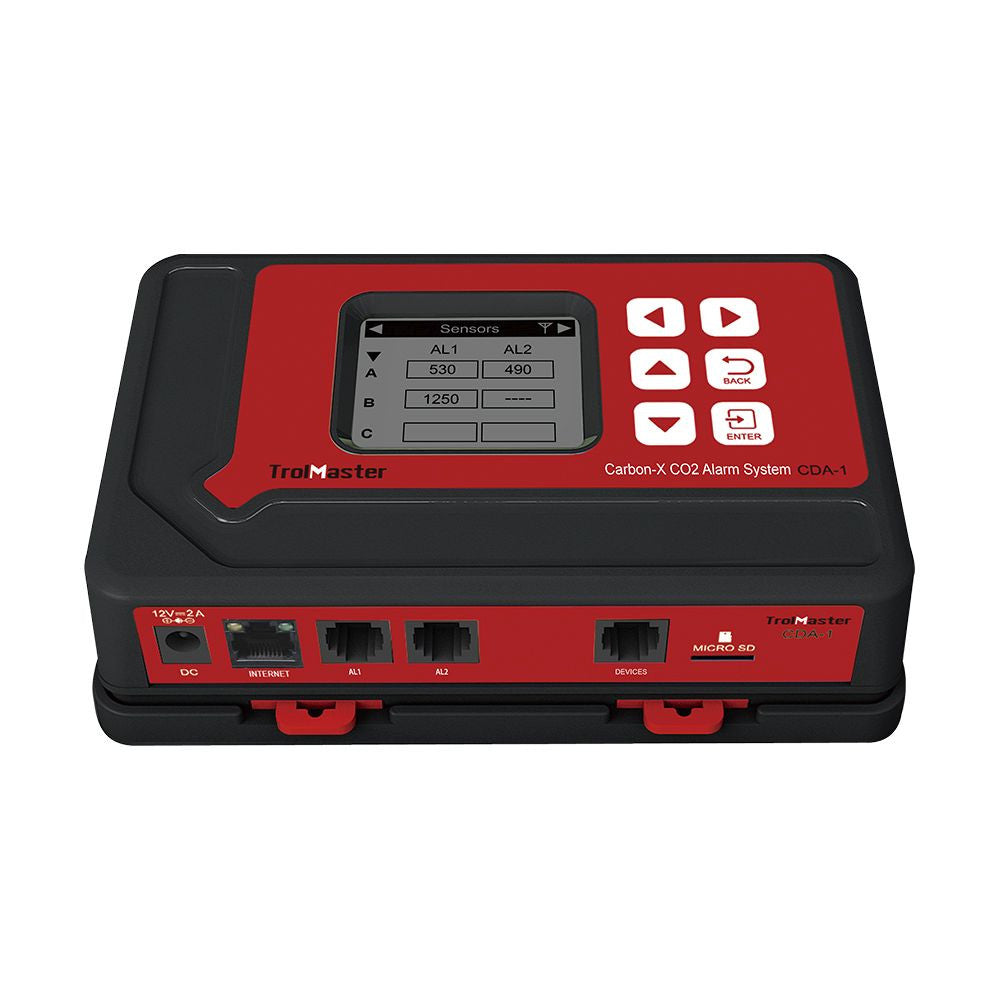

The CDA-1 is the brain of the system.

• Multiple zones
• Customizable

• Plug and Play
• connection to the app

The package contains:

• 1x CO2 alarm system (CDA-1)
• 2x16ft RJ12 cable
• 1x12V power supply

Technical specifications:

• Dimensions: 275x164x62 mm
• Weight: 1.08 kg
