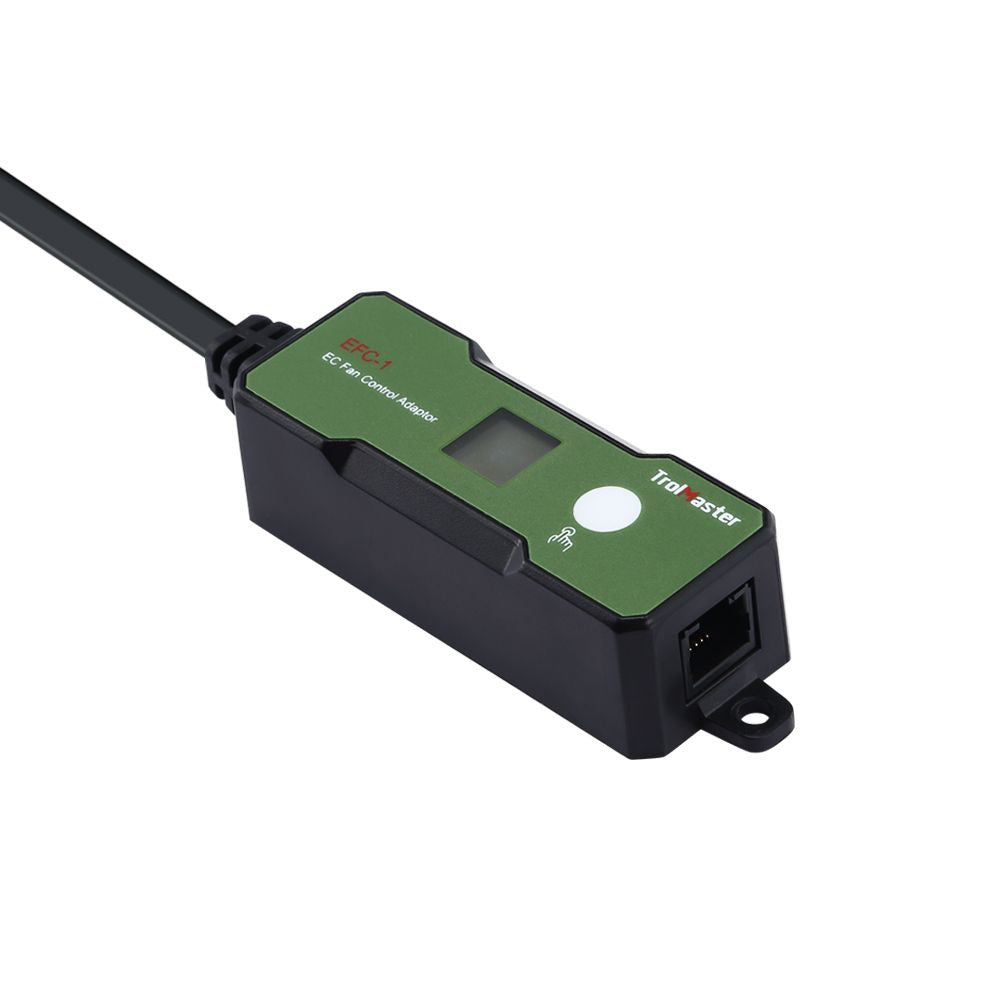

Trolmaster EC Fan Control Adapter (EFC-1)

The TrolMaster EFC-1 is specifically designed for use with the Tent-X control system to control the variable speed of the EC fan. The EFC-1 must select the output mode to control the EC fan in PWM or 0-10V mode.

The TrolMaster EFC-1 is specifically designed to be used with the Tent-X control system to control the variable speed of the EC fan. The EFC-1 needs to select the output mode to control the EC fan in PWM or 0-10V mode.

Each Tent-X fan can be connected to a corresponding EFC-1 for the exhaust air (F1) and supply air (F2). Each exhaust air (F1)/supply air (F2) line requires an EFC-1.

Main advantages:

• LCD display for PWN
• Addressing the 0-10V mode
• Easy connection to the main controller Tent-X and the EC fan
• Plug & Play

The package contains:

1x EC fan control adapter
