Trolmaster 240V Humidity Station (DSH-2E)

Moduly TrolMaster DSH-2 Pro humidity control devices allow the user to easily connect and control conventional humidification or dehumidification devices to the Hydro-X device. The picture is for illustrative purposes only. We supply the product in the EU version including an adapter for easy connection to the Czech network.

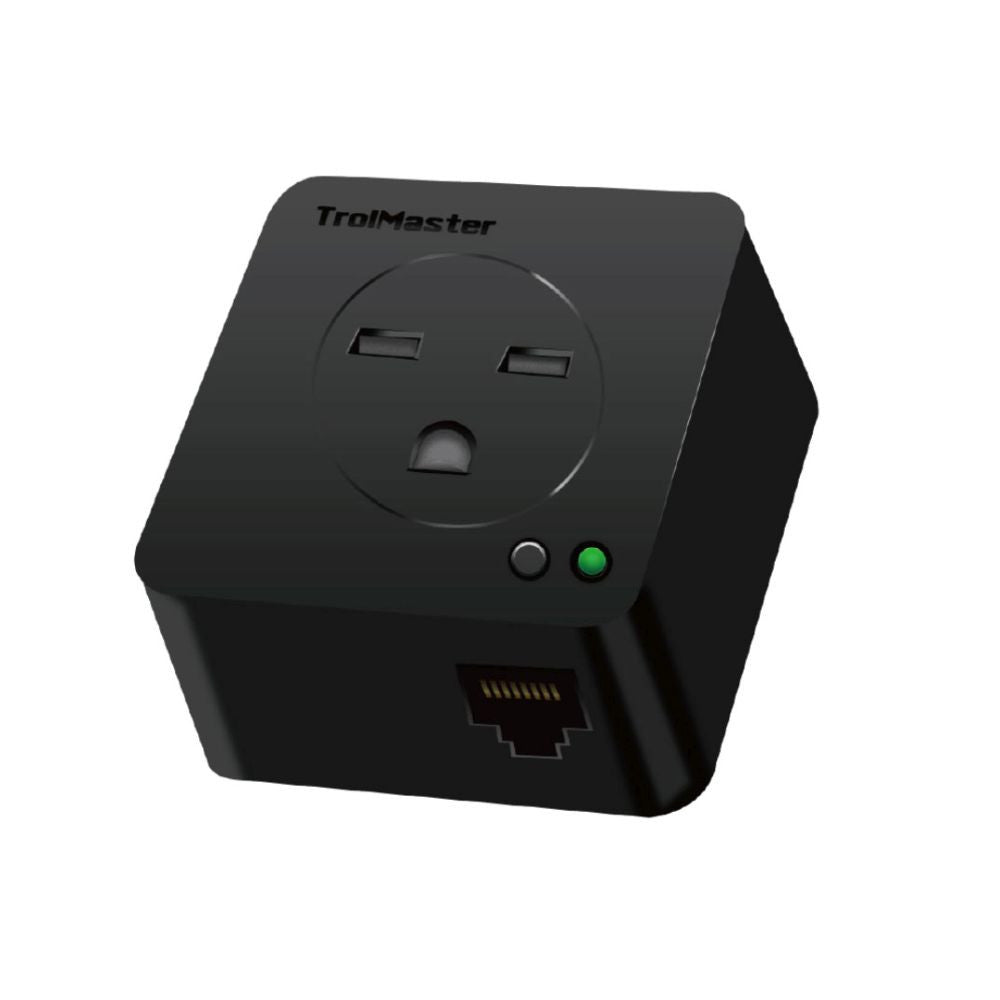

The picture is for illustration purposes only. We supply the product in the EU version including an adapter for easy connection to the Czech network.

The TrolMaster DSH-2 Humidity/Device Control Modules allow the user to easily connect and control conventional humidification or dehumidification devices with the Hydro-X device. This module allows control of any humidification or dehumidification device using the worldwide voltage standard (100-240 VAC, 50/60 Hz) up to 10 amps. * Use dehumidifiers with a power draw of less than 7 amps to avoid overloading.

Status LED:

* Fast green flashing: If the LED is flashing quickly, it means that the module is not addressed to the control unit OR that the module does not have a good connection to the control unit.
* Pressing the small button on the module addresses/connects the module during first installation.
* Slow Green Flashing: If you see a slow flashing green LED, it means the module is addressed and connected to the control unit and the module is currently powered off.
* Solid green: When the LED is solid (not flashing), it means the modules are addressed, connected, and currently powered on.
* Flashing red: When the LED changes to flashing red, it means that the module is overloaded. To reset the overload, disconnect the module from the power supply.
* By pressing and holding the button on the DSH-2 module, users can manually override and turn the module on and off.

The package contains:

• 1 x Device Station
• 1 x 16ft RJ12 cable
• 1 x 4ft RJ12 cable
• 1 x RJ12 T-Splitter
