Trolmaster 240V temperature device station (DST-2E)

The TrolMaster DST-2 temperature control modules allow the user to easily connect and control conventional heating or cooling devices to the Hydro-x system. This module allows controlling any heating or cooling device according to the world voltage standard (100-240 V AC, 50/60 Hz) with a capacity of up to 10 amps. The picture is for illustrative purposes only. We supply the product in the EU version including an adapter for easy connection to the Czech network.

Image is illustrative. The product is delivered in the EU version, including an adapter for a smooth connection to the Czech network.

The TrolMaster DST-2 temperature control modules allow the user to easily connect and control standard heating or cooling equipment to the Hydro-x system. This module allows the control of any heating or cooling equipment according to the worldwide voltage standard (100-240 VAC, 50/60 Hz) with a current of up to 10 amps.

Status LED:

• * Fast green flashing: If the LED is flashing quickly, it means that the module is not addressed to the control unit OR that the module does not have a good connection to the control unit.
• * Pressing the small button on the module addresses/connects the module during initial installation.
• * Slow Green Flashing: If you see a slow flashing green LED, it means the module is addressed and connected to the control unit and the module is currently powered off.
• * Solid green: When the LED is solid (not flashing), it means the modules are addressed, connected, and currently powered on.
• * Flashing Red: When the LED changes to flashing red, it means the module is overloaded. To reset the overload, disconnect the module from the power supply.
• * By pressing and holding the button on the DST-2 module, users can manually reset and turn the module on/off.

Main advantages:

• LED network status indicator
• RJ12 cable connection
• addressing
• Plug & Play

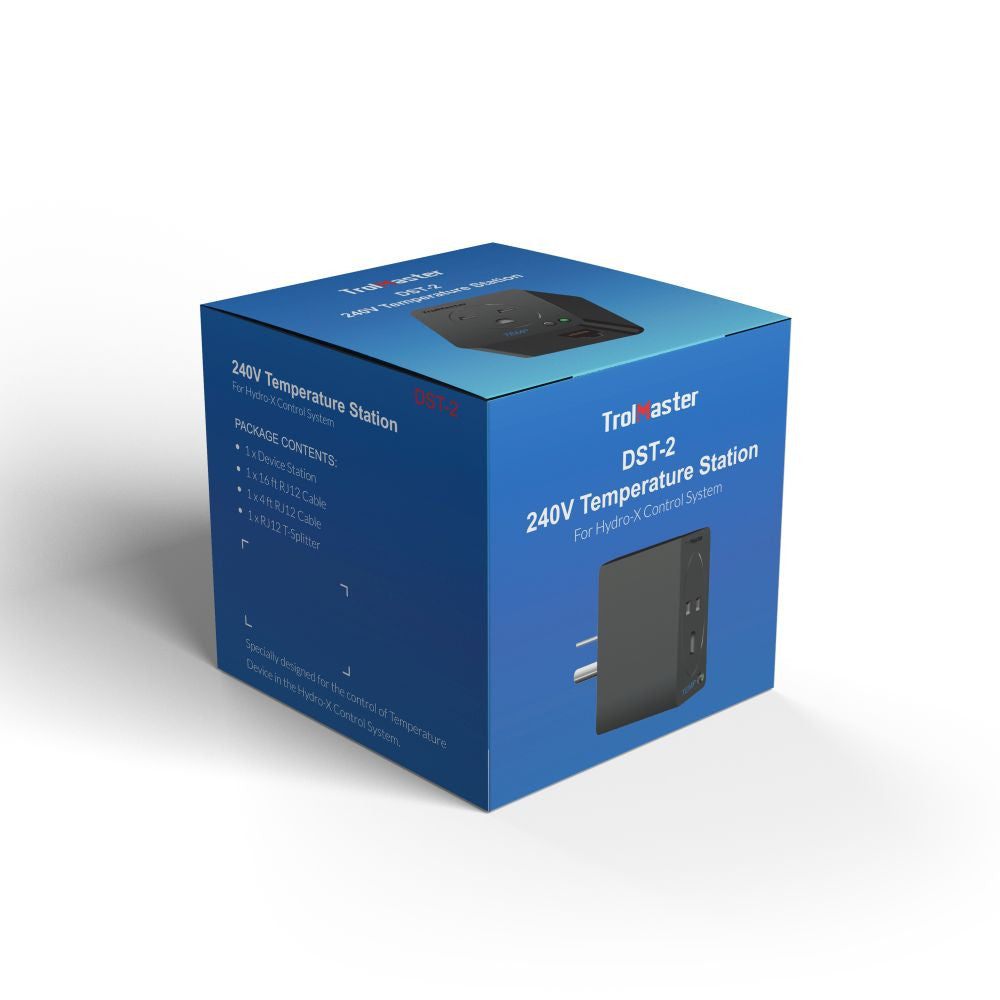

The package contains:

• 1 x device station
• 1 x 16ft RJ12 cable
• 1 x 4ft RJ12 cable
• 1 x RJ12 T-splitter

.
