Trolmaster 240V Timer Programmer Station (DSP-2E)

TrolMaster DSP-2 programmer module (timer module) functions as a multifunctional timer. The DSP-1 module allows the user to easily connect any device that needs to be controlled via the TIME function to the Hydro-x system. The DSP-2 module enables the control of any device according to the world voltage standard (100-240 V AC, 50/60 Hz) with a capacity of up to 10 amps. The product is supplied with an adapter to easily connect it to the Czech network.

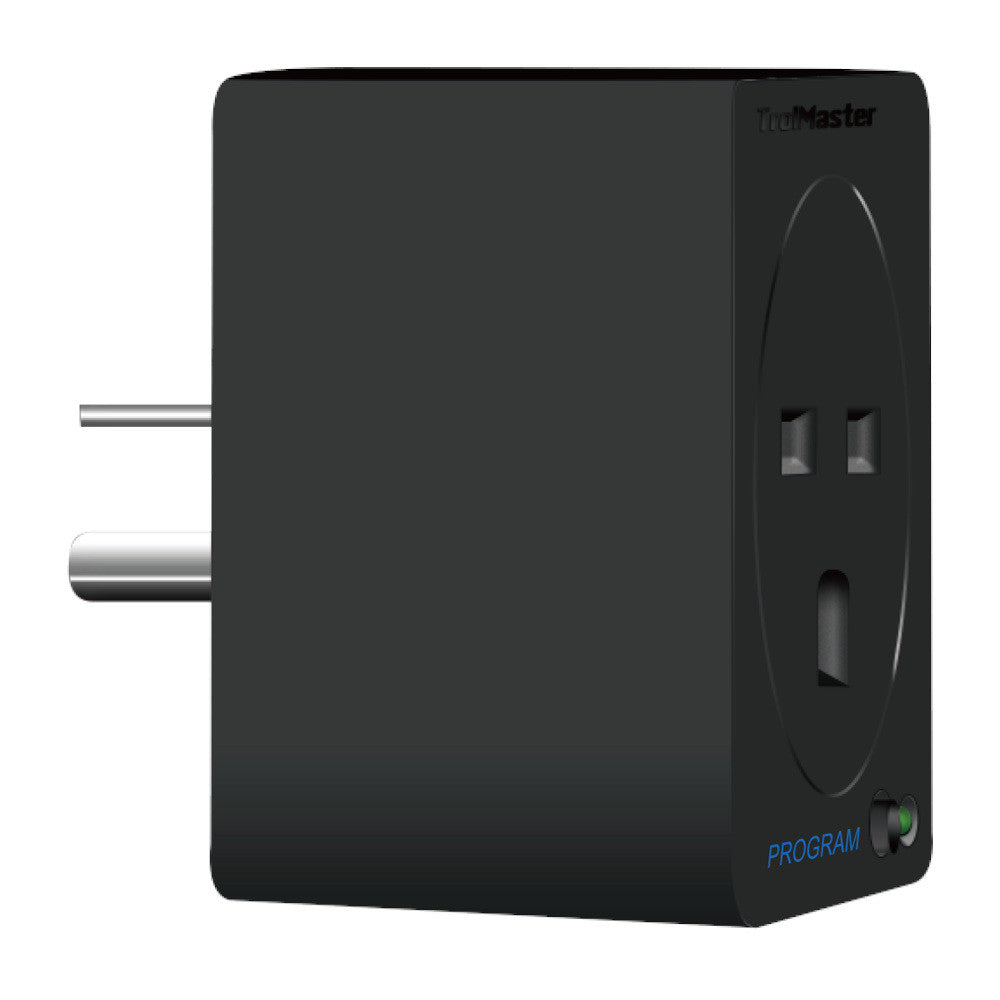

Image is for illustrative purposes. The product is supplied with an adapter to ensure a smooth connection to the Czech network.

The TrolMaster DSP-2 (Timer Module) acts as a multifunctional timer. The DSP-1 module allows the user to easily connect any device that needs to be controlled using the TIME function to the Hydro-x system. The DSP-2 module allows the control of any device according to the worldwide voltage standard (100-240 V AC, 50/60 Hz) with a power of up to 10 amps.

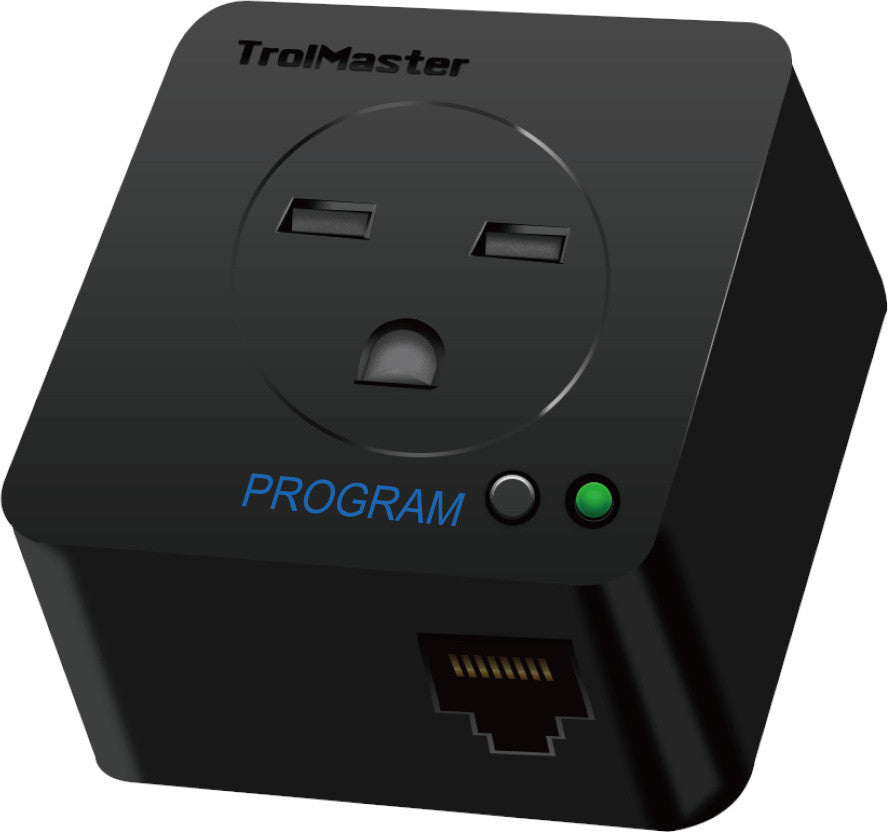

Status LED:

• * Fast green flashing: If the LED is flashing quickly, it means that the module is not addressed to the control unit OR that the module does not have a good connection to the control unit.
• * Pressing the small button on the module addresses/connects the module during initial installation.
• * Slow Green Flashing: If you see a slow flashing green LED, it means the module is addressed and connected to the control unit and the module is currently powered off.
• * Solid Green: If you see the LED solid green (not blinking), it means the modules are addressed, connected, and currently powered on.
• * Flashing Red: When the LED changes to flashing red, it means the module is overloaded. To reset the overload, disconnect the module from the power supply.
• * By pressing and holding the button on the DSP-2 module, users can manually re-tune and turn the module on/off.
