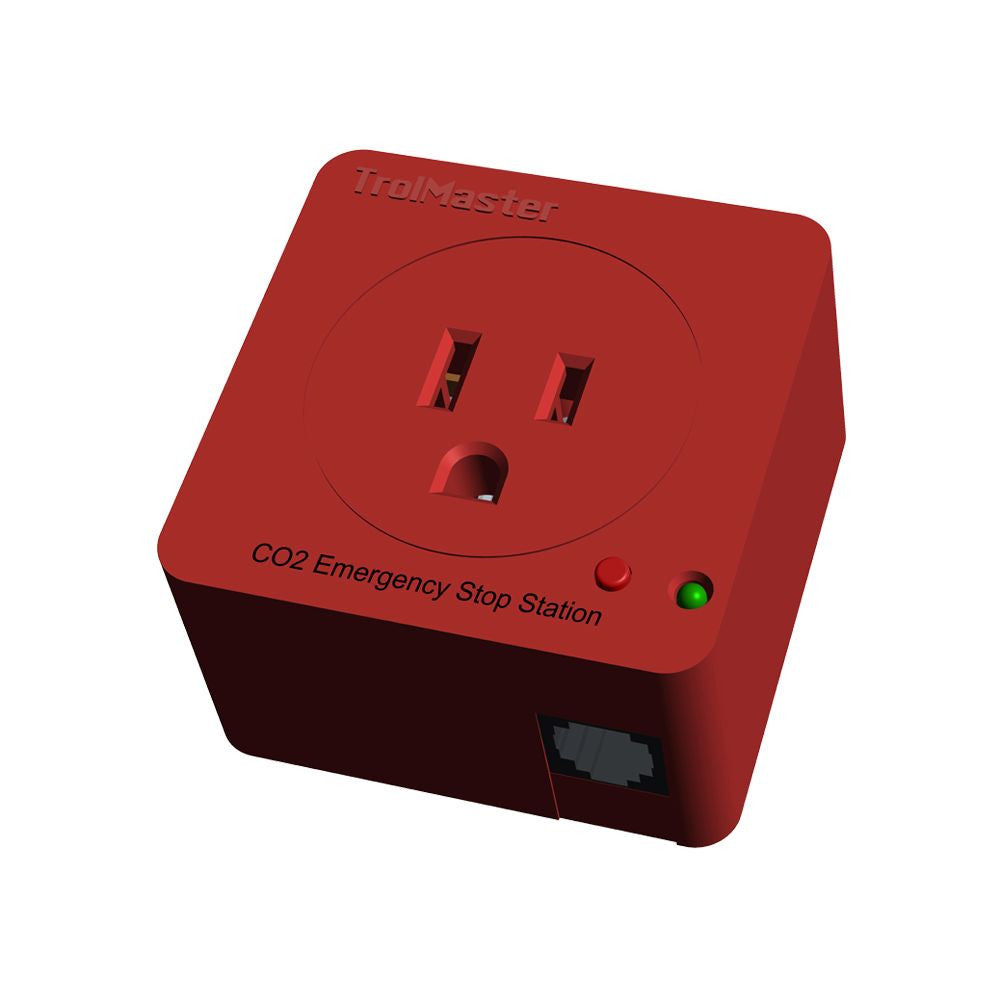

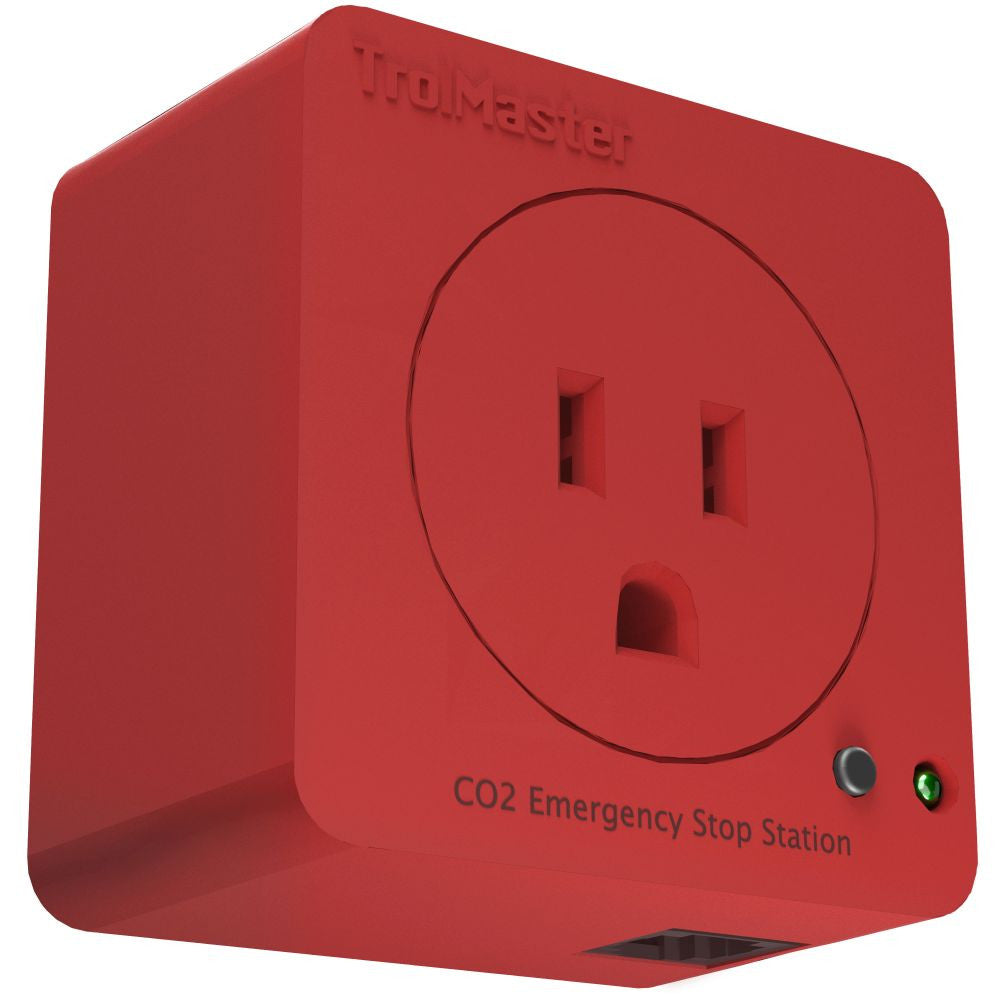

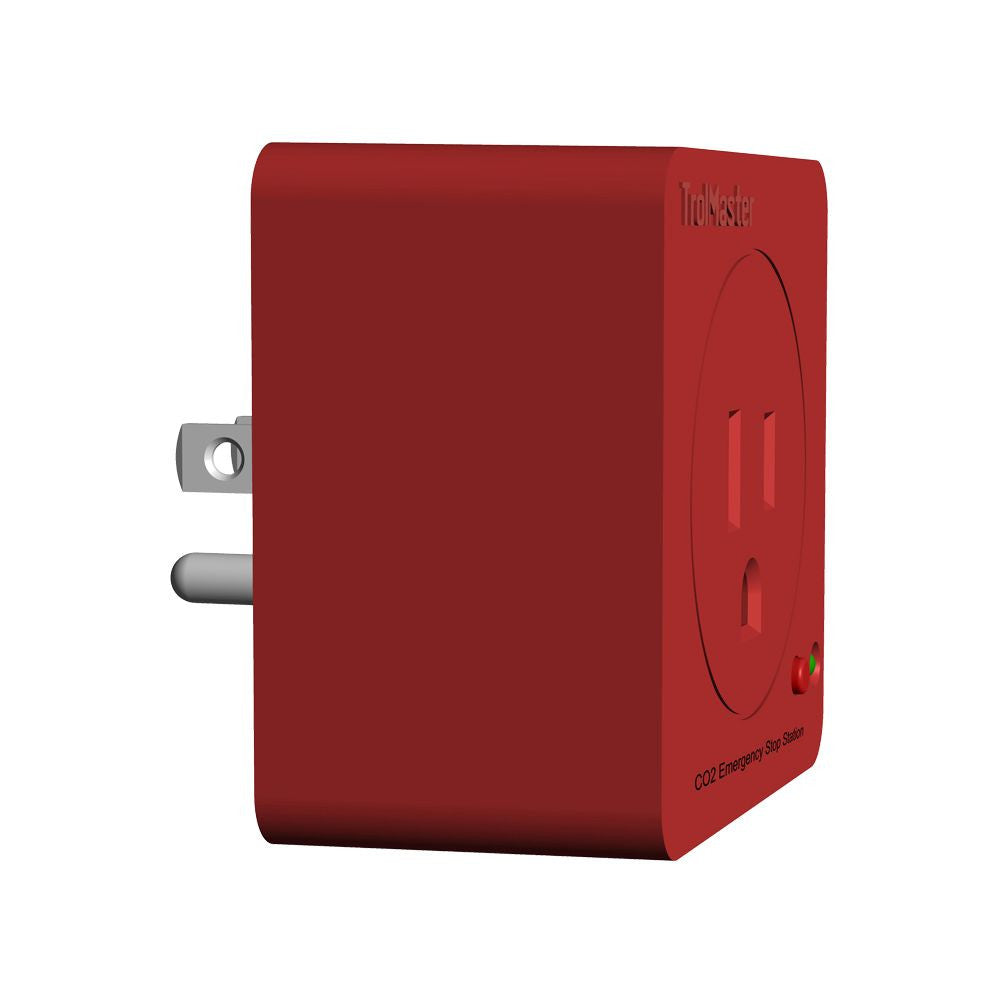

Trolmaster CO2 emergency stop station & cable set (DSE-1E)

The DSE-1 emergency CO2 shut-off unit provides an easy way to shut off the CO2 supply in the event of a fault or high CO2 levels. It is a 120V controlled socket that supplies the electromagnetic CO2 valves during normal operation. The product is supplied in the EU version and includes an adapter for easy connection to the Czech network. The image is for illustration purposes only.

Image is an illustration. The product is delivered in the EU version, including an adapter for easy connection to the Czech network.

The DSE-1 CO2 Emergency Shutdown Station provides an easy way to shut off the CO2 supply when a fault or high CO2 level is detected. It is a 120V controlled outlet that supplies power to the electromagnetic CO2 valves during normal operation. Carbon-X will automatically shut off power to the DSE-1 when a fault or high CO2 level is detected in any of the installed CO2 sensors. If the DSE-1 loses communication with the Carbon-X unit, power will also shut off.

LED status:

• * Fast green flashing: If the LED flashes quickly, it means that the module has not been addressed by the control unit OR that the module does not have a good connection to the control unit.
• * Pressing the small button on the module will address/connect the module during first installation.
• * Slow green flashing: If you see a slow flashing green LED, it means that the module is addressed and connected to the control unit and the module is currently turned off.
• * Steady Green: If you see the LED solid (not blinking), it means the modules are addressed, connected, and currently powered on.
• * Flashing Red: When the LED changes to flashing red, it means the module is overloaded. To reset the overload, disconnect the module from the power supply.

Main advantages:

• power status LED indicator
• RJ12 cable socket
• addressing
• Plug & Play

The package contains:

• 1 x emergency shutdown station
• 1 x 16ft RJ12 cable
• 1 x 4ft RJ12 cable
• 1 x RJ12 T-splitter
