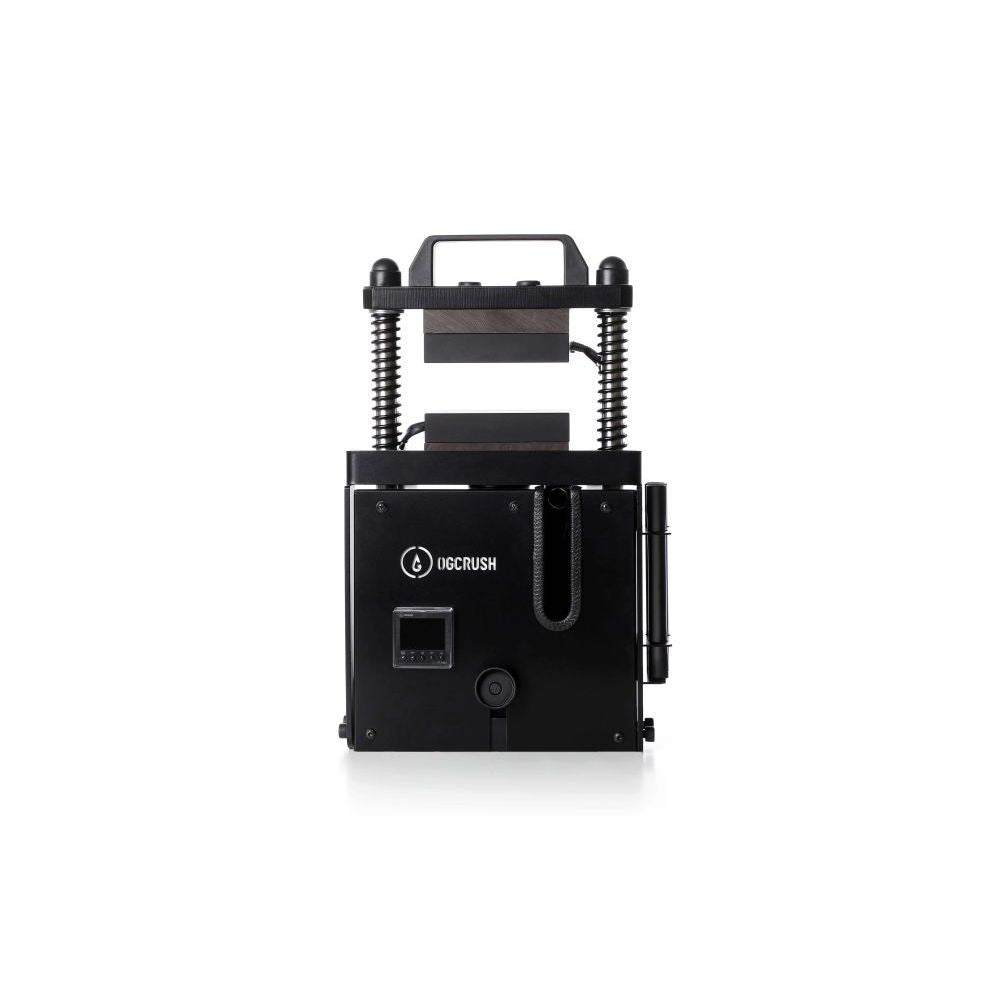

OG Crush Rosin Press Extractor OG5T

Universal hydraulic resin extractor with anodized double heating plates 76x127mm perfectly aligned for the best extraction experience anywhere.

function

• Manual Rosin Press with anodized double heating plates for the best extraction experience anywhere
• 76 x 127mm anodized double heating plates remain perfectly aligned during pressing
• Plate size suitable for most extraction bags and pre-press molds
• PID with precise temperature sensor
• Long service life
• Strong compact steel frame paired with a 5-ton hydraulic jack
• Strong spring
• Easily replaceable hydraulic jack
• Food-grade aluminum work surface for excellent taste and easy cleaning
• Optimal pressure for pressing 1 – 12 g flowers
• Integrated 5-ton hydraulic jack delivers over 1,000 PSI when pressing 330 mm2 rosin extraction filters
• Double insulation layers allow the Rosin heating plates to reach 200 °F / 93 °C in 8 – 10 minutes and protect the machine from heat loss
• Portable and compact, saves space and allows quick storage

specifications

• Temperature range: 0 – 399 °F / 0 – 204 °C
• Power: 500W
• Voltage: 220 V
• Total weight: 22 kg
• Packaging size: 559 x 40 x 348 mm
• Pressing area: 76 x 127 mm

Safety measures when replacing the original hydraulic jack

• Do not use a hydraulic jack with more than 5 tons
• Choose a lifter with similar height and size / diameter
• Place the head of the lever in the circle on the bottom plate
• It is not necessary to lock the lifter at the lower end

packaging contents

• 1 x All-in-one hydraulic rosin press

recommendations

• To avoid leakage, do not leave the vent valve open more than 720 degrees (2 full turns)
• Open the vent valve slowly with half a turn
• Do not use a hydraulic jack with more than 5 tons
• operation by one person
• Keep out of reach of children

Setting the PID controller

• Press the ◄ key to increase or decrease the value in hundreds, tens and ones
• Press the ▼ or ▲ button from 0 to 9 for the desired temperature
