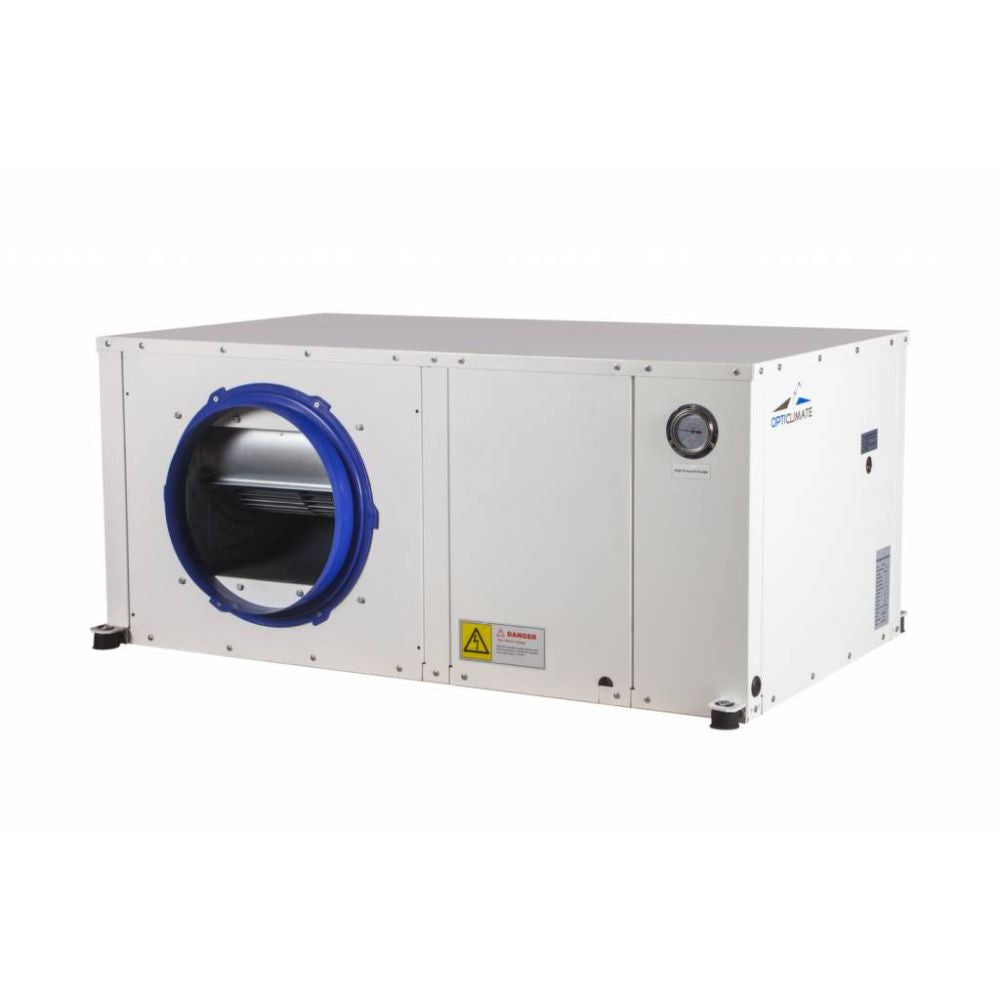

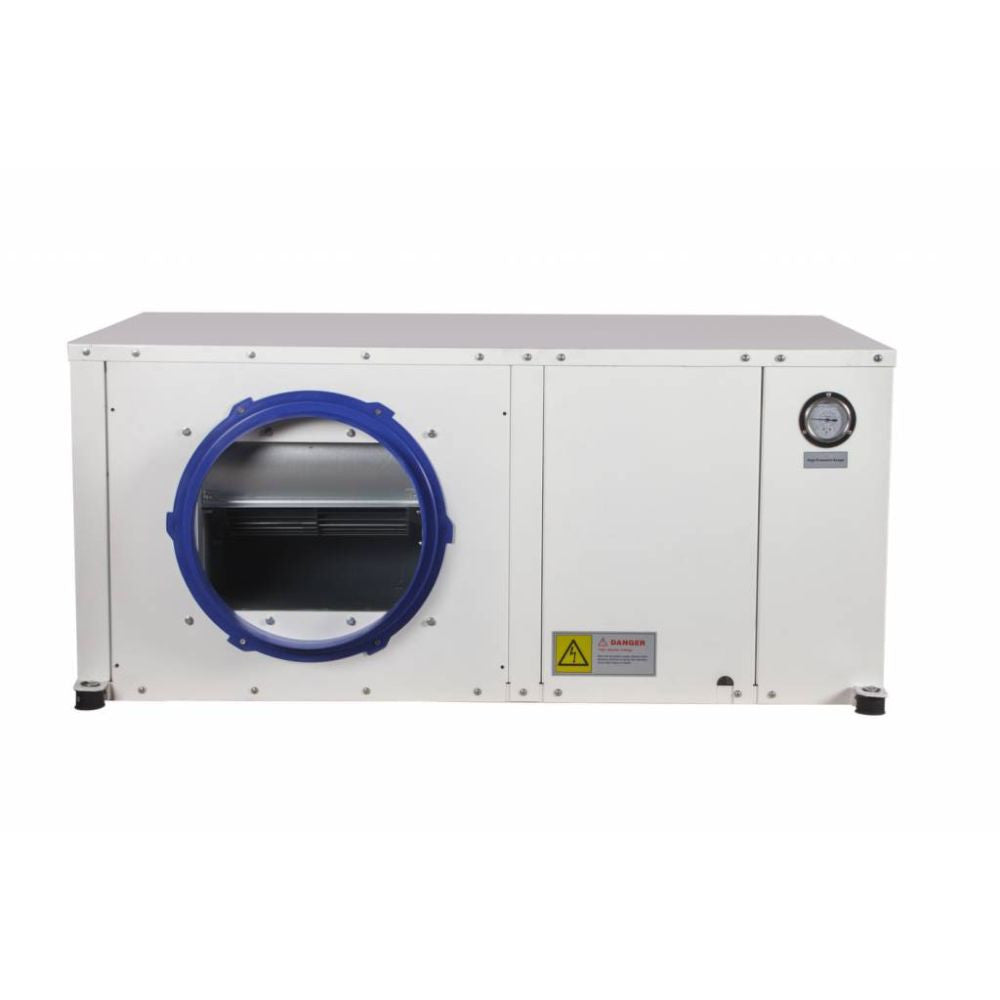

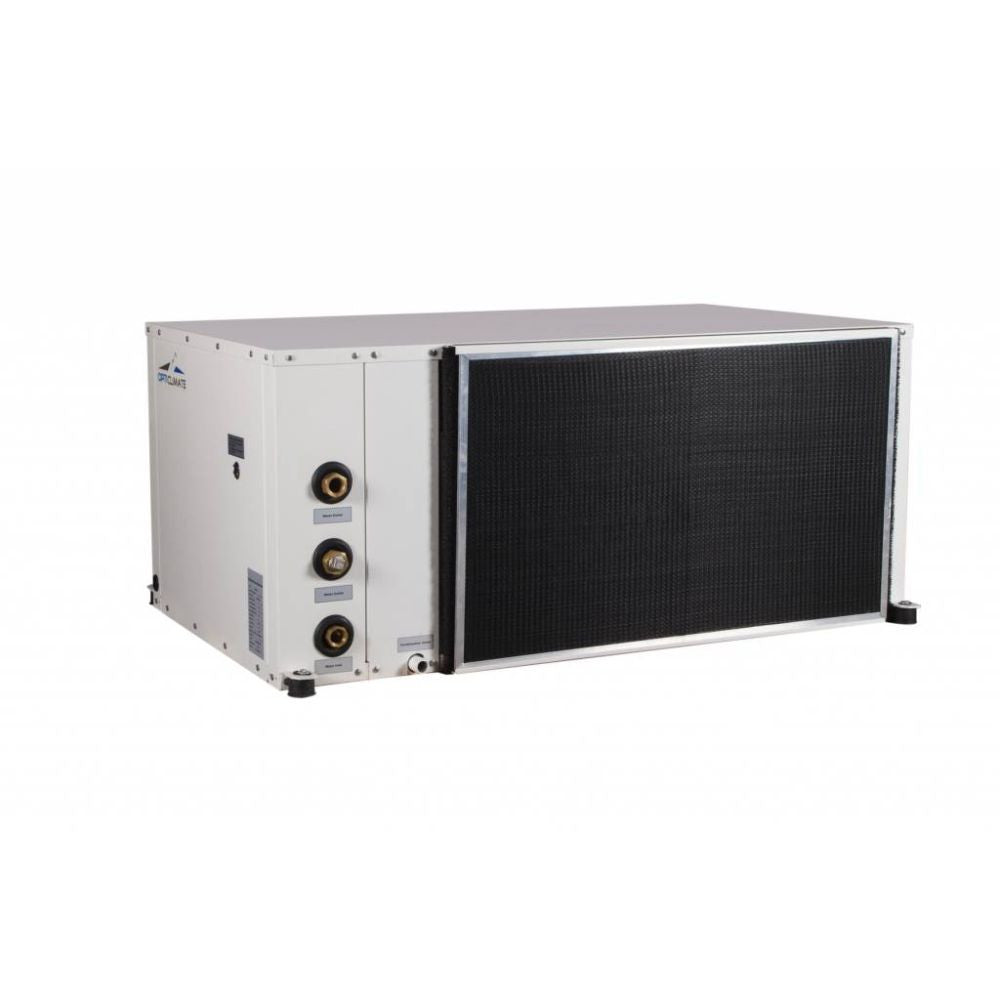

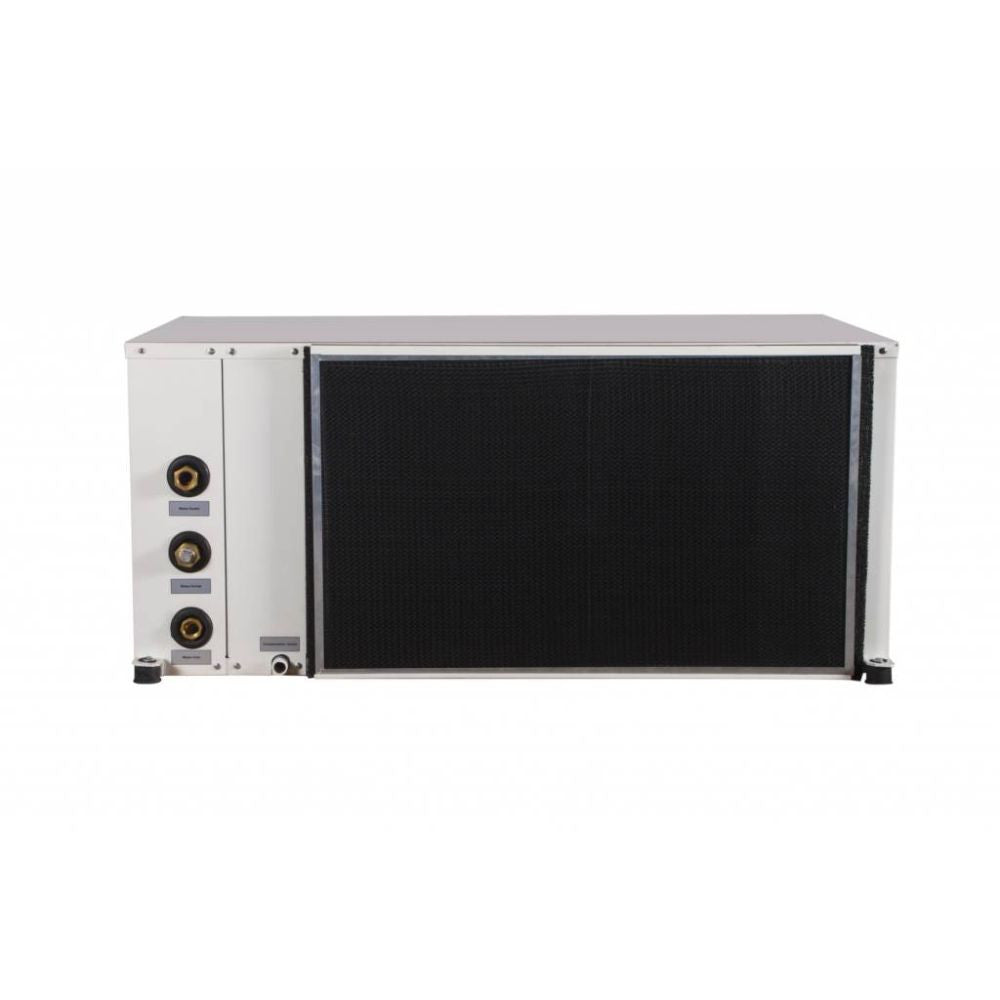

Opticlimate - 10000 PRO3

The OptiClimate 10000 PRO3 refrigerated air conditioning system has a cooling capacity of 10 kW, consumes 3 to 6 liters of water per minute and has heating elements with an output of 3x2000 W. The cooling can be connected to the appropriate version of the OptiClimate cooler or to its own water source.

OptiClimate 10000 PRO3 is a refrigerated air conditioner with a cooling capacity of 10 kW, a water consumption of 3 to 6 liters per minute and heating elements with a power of 3x2000 W.

• Name: OptiClimate 10000 PRO3
• Voltage: 230-400 V
• Cooling capacity: 10000 W
• Water consumption: 3.0-6.0 l/min***
• Power consumption: 2150W
• Phase: 1o3*
• Connection:
• D35 4.0 mm2 cable.
• 3 phases D20 2.5mm2 cable
• Heating elements: 3x2000W
• Dehumidification capacity: 170 l/24h**
• Dimensions: 115x56x50
• Weight: 120 kg

* For two-phase and three-phase connections, one heating element per connected phase.

** At 80% humidity and ambient temperature of 30 °C.

*** At a cooling water temperature of 6 °C to 20 °C.
