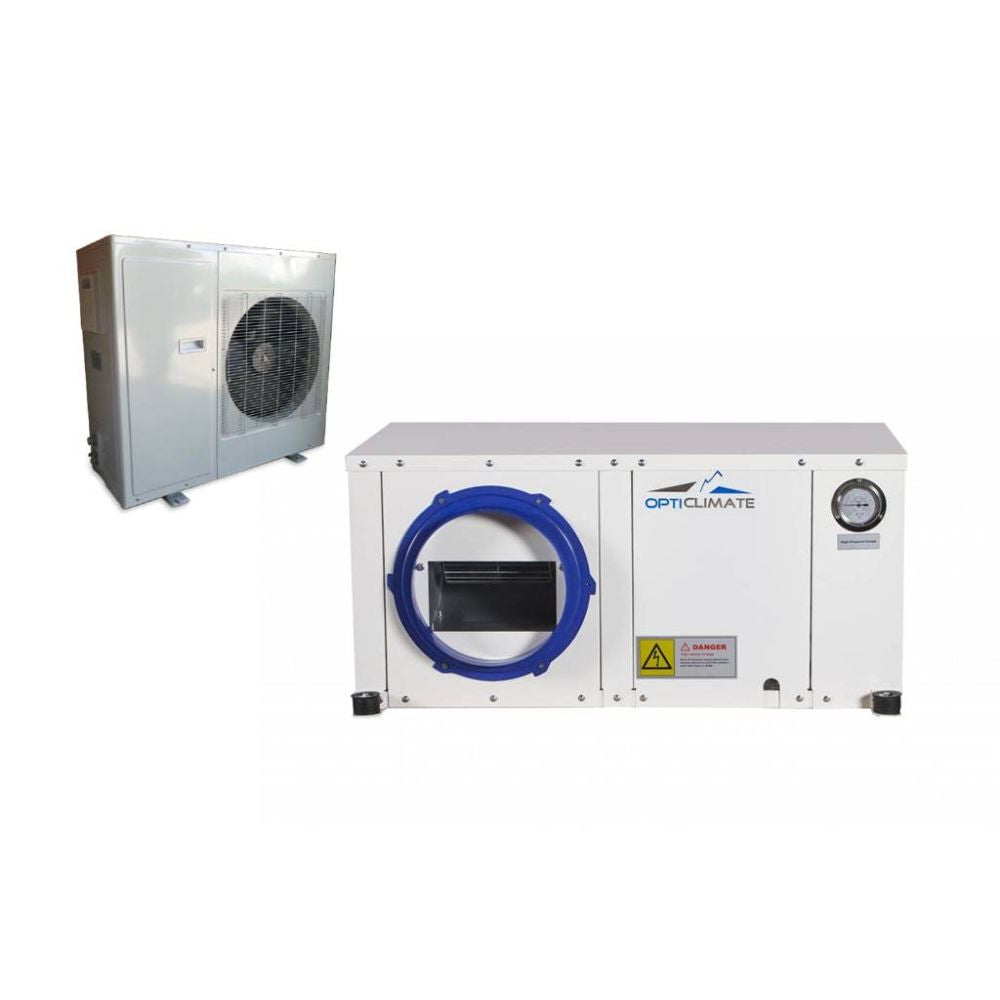

Opticlimate - 3500 PRO3 Split

OptiClimate 3500 PRO 3 Split air conditioning system with air cooling has a cooling capacity of 3.5 kW and a heating capacity of 2x1500 W.

OptiClimate 3500 PRO 3 Split air conditioning system with air cooling has a cooling capacity of 3.5 kW and a heating capacity of 2x1500 W.

The standard OptiClimate 3500 PRO3 split unit can bridge a distance of up to 15 meters between the indoor and outdoor units. The OptiClimate split units are supplied as standard with a quick-connector with a length of 8 meters of refrigerant hose, which consists of a set of two hoses. If a longer refrigerant hose is required, it can be ordered up to a maximum distance of 15 meters. For example, if a 15-meter refrigerant hose is required for the OptiClimate 3500 PRO3 split unit, you should order this refrigerant hose 7 times (for an additional 7 meters).

• Name: OptiClimate 3500 PRO3 Split.
• Voltage: 230V
• Cooling capacity: 3500W
• Power consumption: 820W
• Phase: 1o2*
• Connection:
• D16 2.5 mm2 cable.
• 3 phases D10 2.5mm2 cable
• Heaters: 2x1500W
• Dehumidification capacity: 55 l/24h**
• Dimensions of the interior unit: 100x50x42
• Weight of the interior unit: 57 kg
• Dimensions of the outdoor unit: 55x36x49
• Weight of the outdoor unit: 16 kg

* For two-phase and three-phase connections, one heater per connected phase.

** At 80% humidity and ambient temperature of 30 °C.
