Opticlimate - 3500 PRO3 Split EX

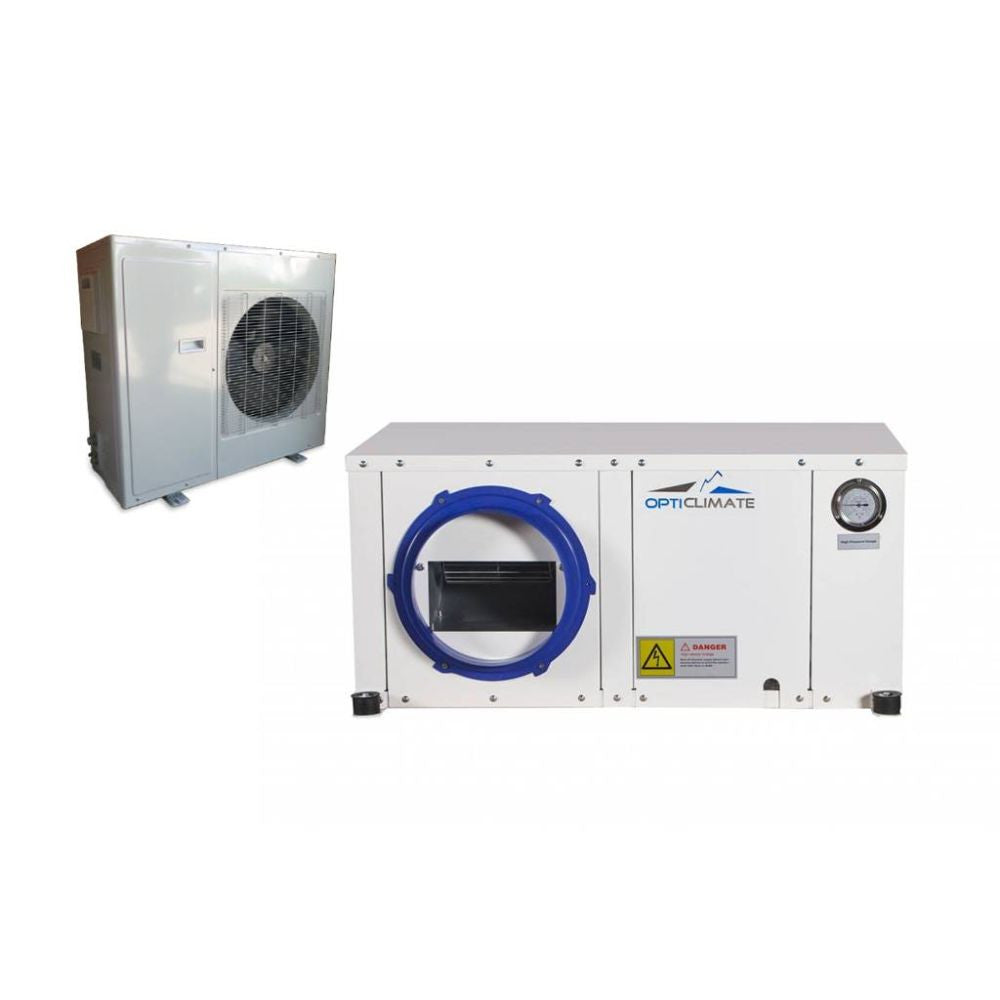

OptiClimate 3500 PRO3 Split EX air-cooled air conditioner. The OptiClimate split units are also available in the EX (Extended Reach) model. The EX model can bridge distances of up to 30 meters between the indoor and outdoor units. It is supplied with a 15 meter long cooling pipe with quick connection.

Vzduchem cooled OptiClimate 3500 PRO3 Split EX air conditioner. The OptiClimate Split units are also available in EX (Extended Reach) model. The EX model can bridge a distance of up to 30 meters between the indoor and outdoor unit. It is supplied with a 15 meter long cooling hose with quick connector.

The OptiClimate 3500 PRO3 Split EX (Extended Reach) unit can bridge a distance of up to 30 meters between the indoor and outdoor units. The OptiClimate Split EX units are supplied as standard with a 15 meter long cooling hose with quick connector, which consists of a set of two hoses. If a longer cooling hose is required, it can be ordered up to a maximum distance of 30 meters. For example, if a 30 meter long cooling hose is required for the OptiClimate 3500 PRO3 Split EX unit, you should order this cooling hose 15 times (for an additional 15 meters).

• Name: OptiClimate 3500 PRO3 Split.
• Voltage: 230V
• Cooling capacity: 3500W
• Power consumption: 820W
• Phase: 1o2*
• Connection:
• D16 2.5 mm2 de cable.
• 3 phases D10 2.5mm2 de cable
• Radiator: 2x1500W
• Dehumidification capacity: 55 l/24h**
• Dimensions indoor unit: 100x50x42
• Weight of indoor unit: 57 kg
• Dimensions extended unit: 55x36x49
• Weight inner unit: 16 kg

* For two-phase and three-phase connections, one radiator per connected phase.

** At 80% humidity and ambient temperature of 30 °C.
