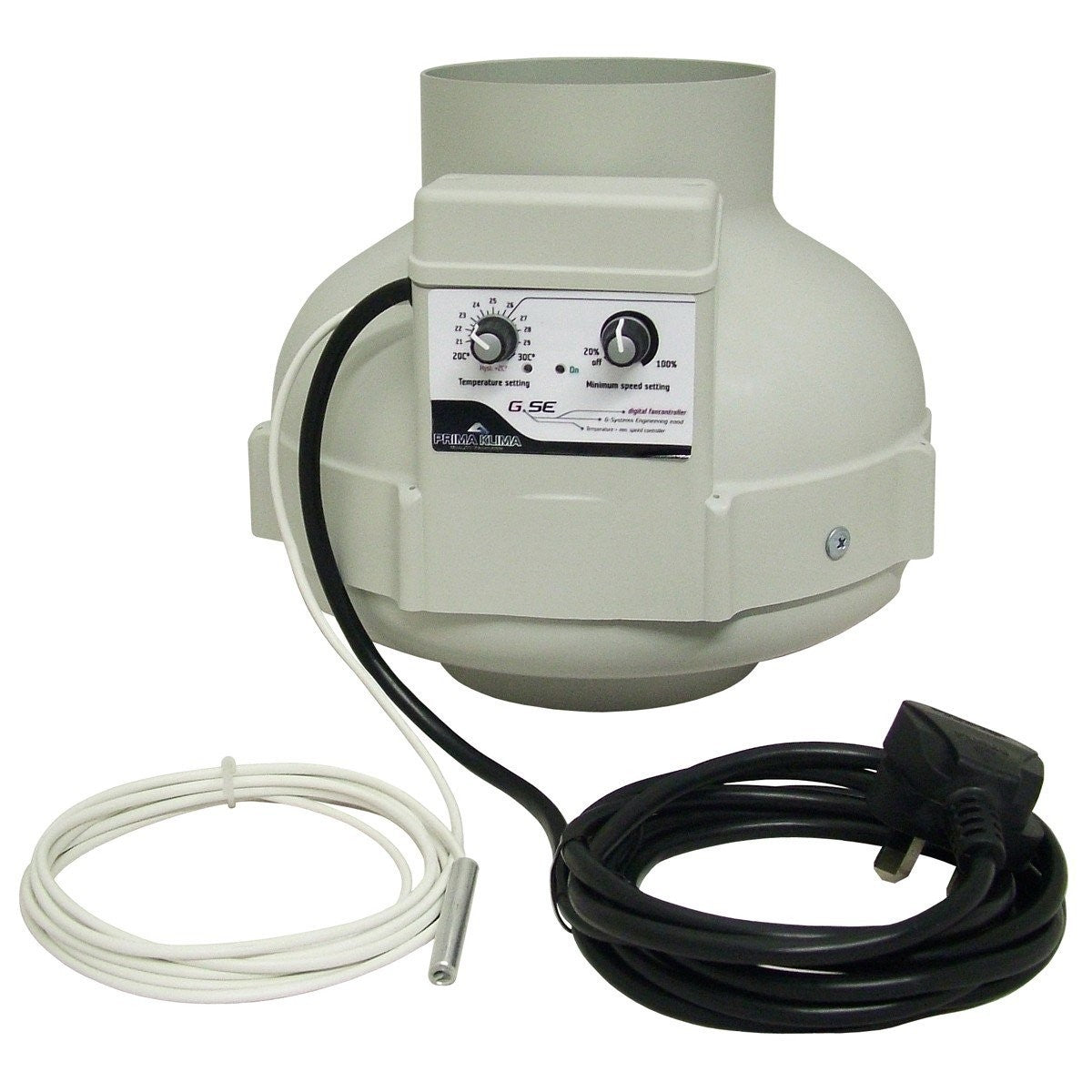

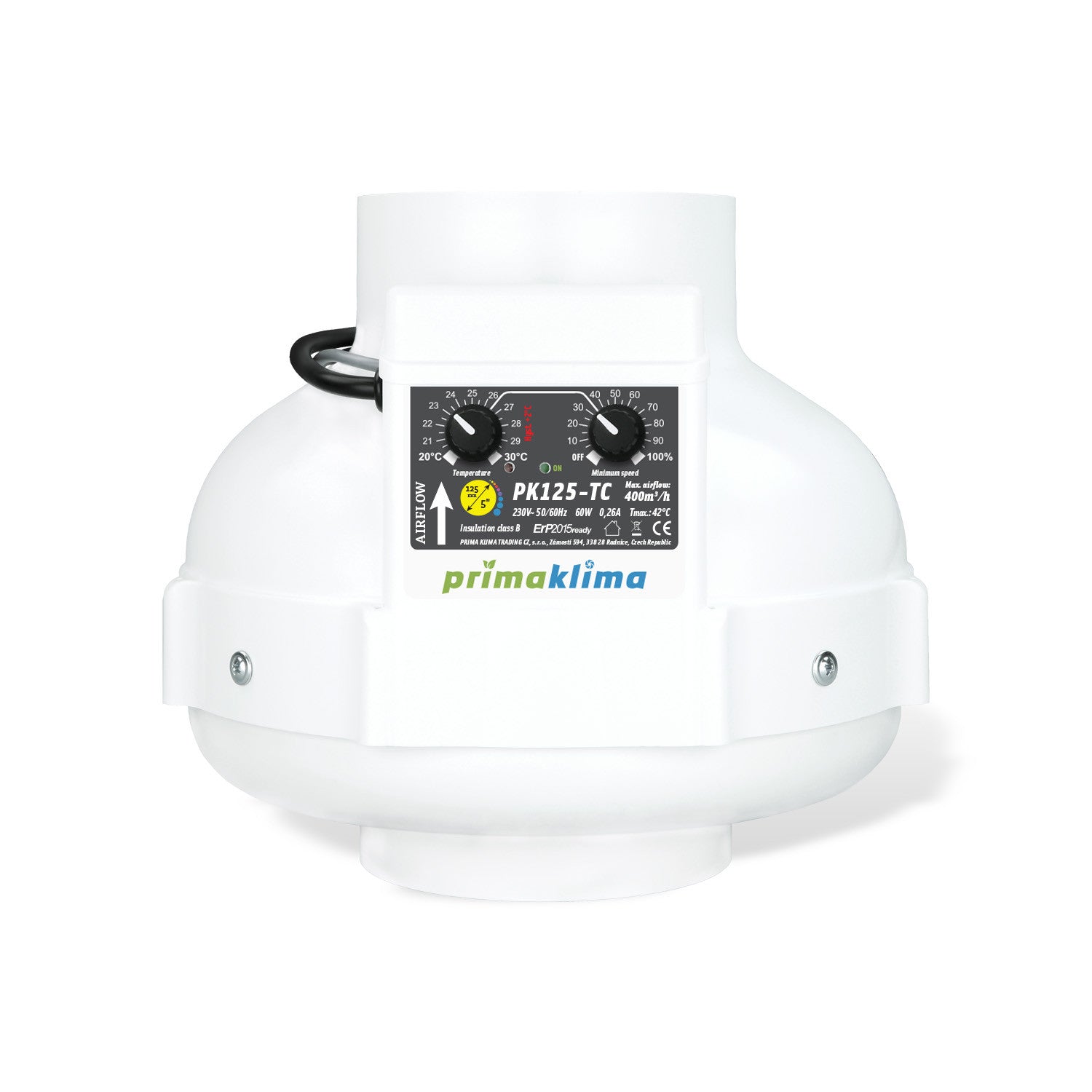

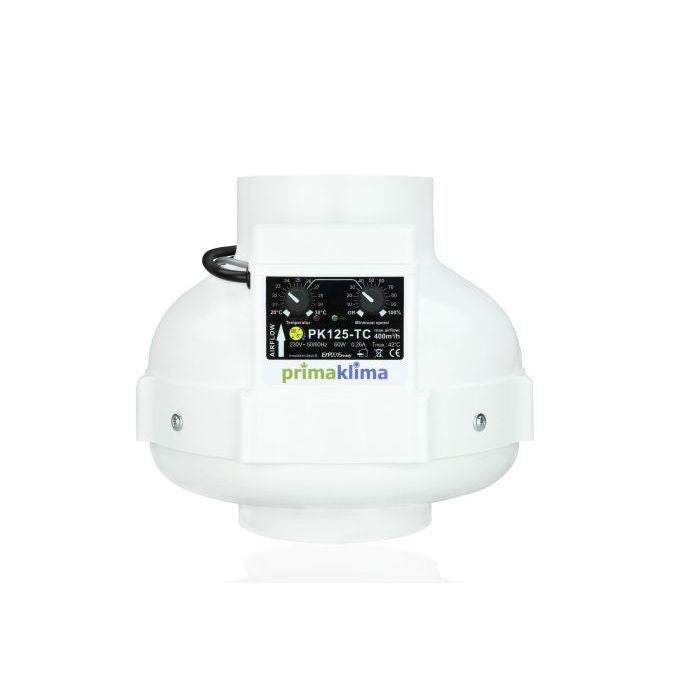

Prima Klima duct fan PK125-TC 125 mm - 400 m3/h, temperature controlled

The Prima Klima TEMP CTRL fan is equipped with a temperature sensor and the speed can be easily and automatically regulated.

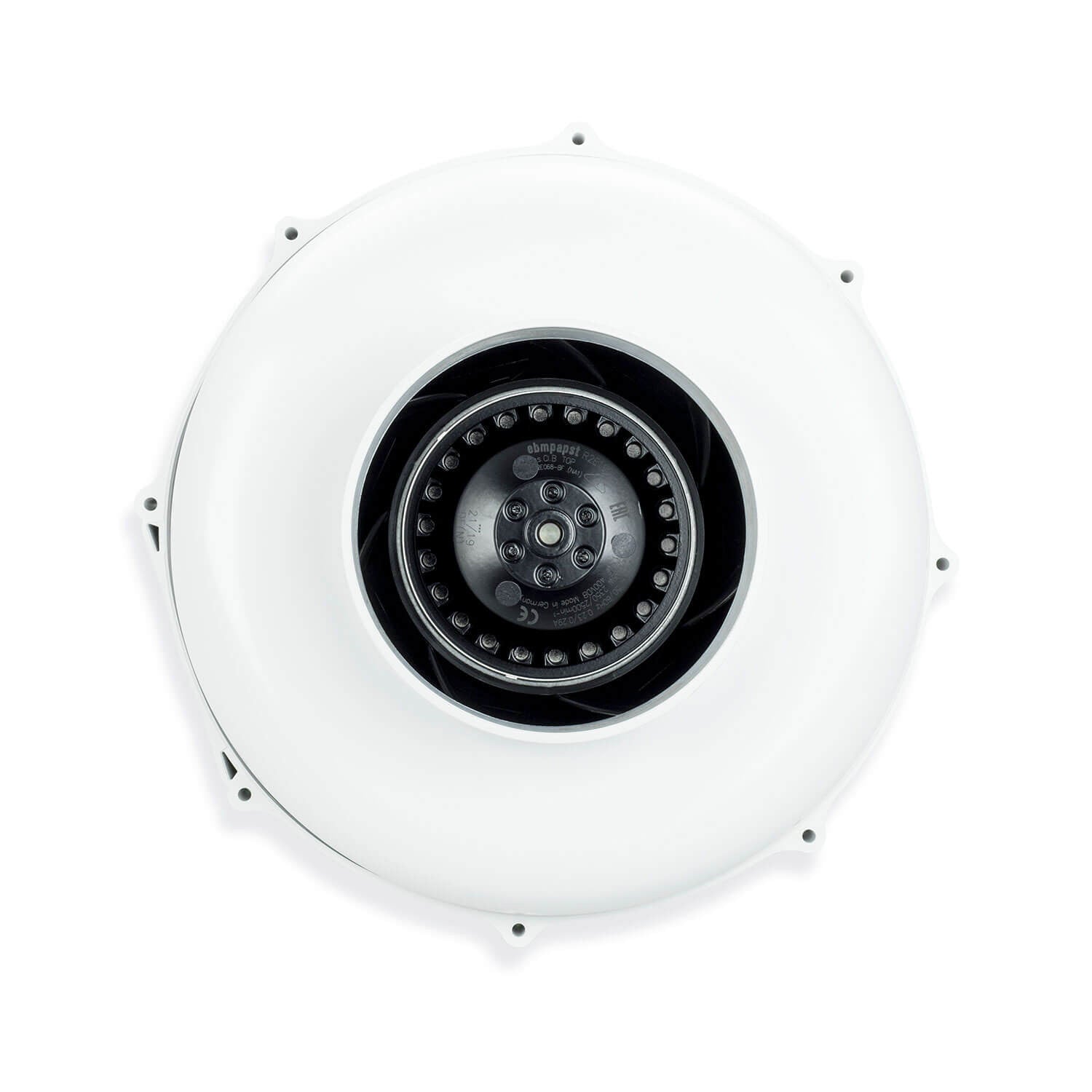

Temperature-controlled, highly efficient tube fan with an AC motor from ebm-papst and backward-curved blades. The fan has been optimally adapted to the housing, which is made of high-impact, non-flammable polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally quiet motor operation.

Characteristics:

• ebm-papst AC Motor
• Backward curved blades
• Low energy consumption
• Low noise emissions
• Adjustable temperature and speed control
• Aerodynamically optimized shape
• Impact-resistant and robust protection
• connection and control system in the housing

Technical specifications:

• flange: 125 mm
• Max. air flow: 400 m³/h
• Power: 60 W
• Voltage: 230V, 50/60Hz, 0.26A
• Tmax: 50 °C
• Dimensions: 244 x 220 mm (w x h)
• Weight: 2.3 kg
