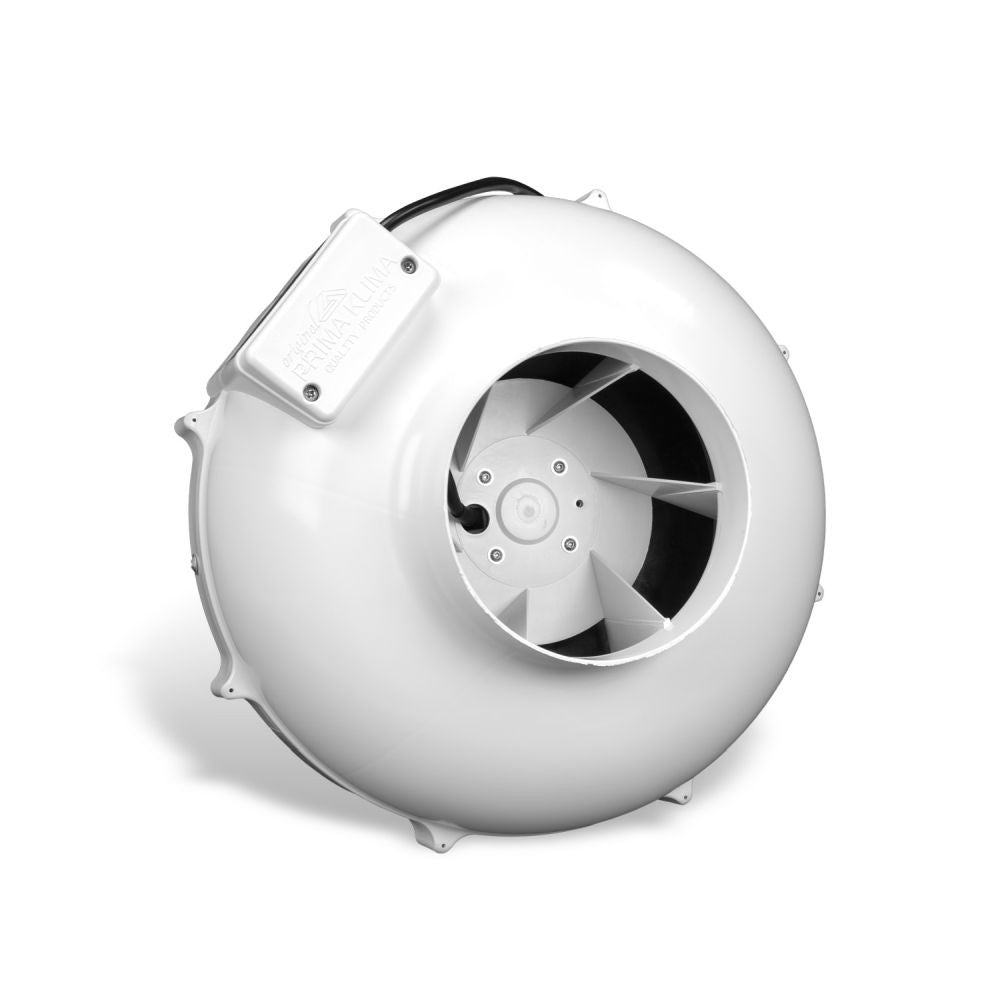

Prima Klima duct fan PK150-L 150 mm - 760 m3/h, 1-speed

Plastic radial fan Prima Klima PK150-L with AC motor from ebm-papst, suitable for pipes with a diameter of 150 mm. Maximum air flow capacity 760 m3/h. Simple pipe fan without regulation.

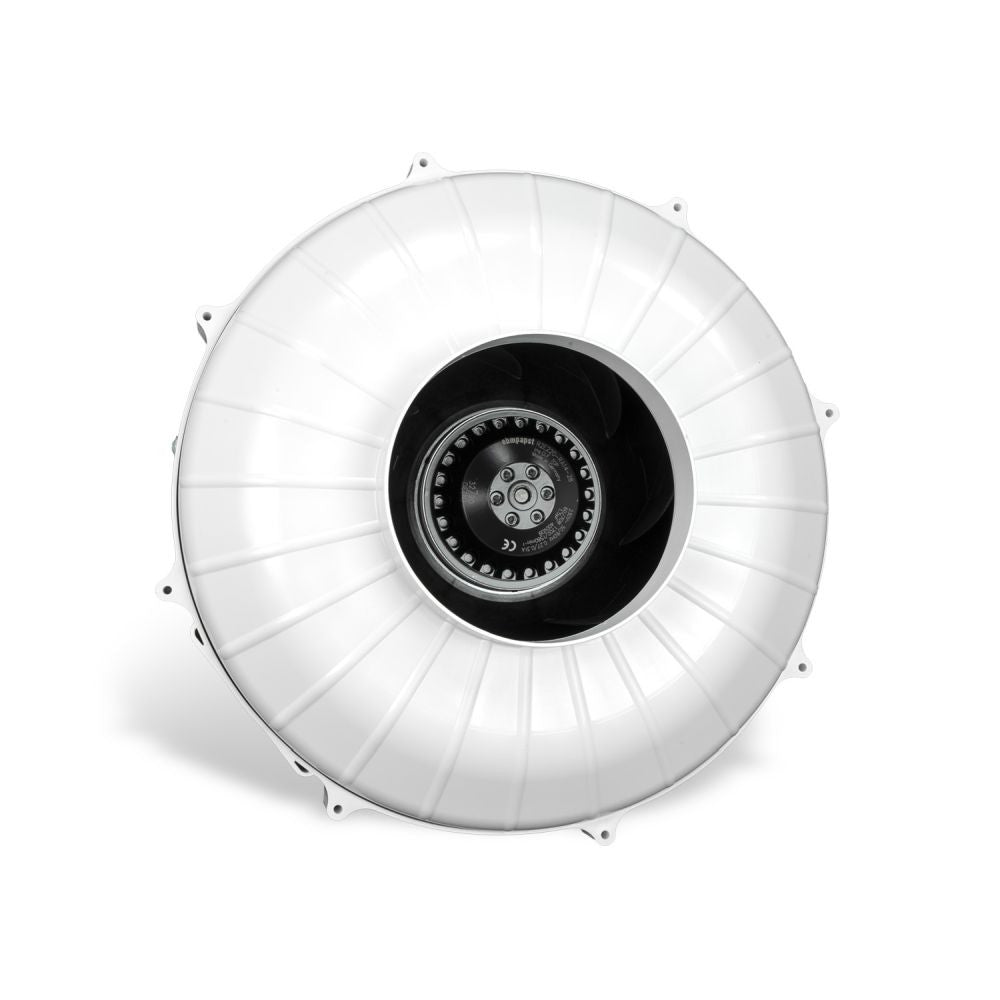

High-performance duct fan with an AC motor from ebm-papst and backward-curved blades. The AC motor has been optimally adapted to the housing construction. The housing is made entirely of shock- and flame-resistant polyamide (nylon). Maintenance-free ball bearings with a long service life ensure that the motor runs particularly smoothly.

Characteristics:

• ebm-papst AC Motor
• Backward curved blades
• Aerodynamically optimized shape
• Shockproof and robust housing
• Integrated connection and control system in the housing

Technical specifications:

• flange: 150 mm
• Max. air flow: 760 m³/h
• Power: 110 W
• Voltage: 230V, 50/60Hz, 0.48A
• Temperature range: max. 50 °C
• Dimensions: 338 x 233 mm (WxH)
• Weight: 3.3 kg
