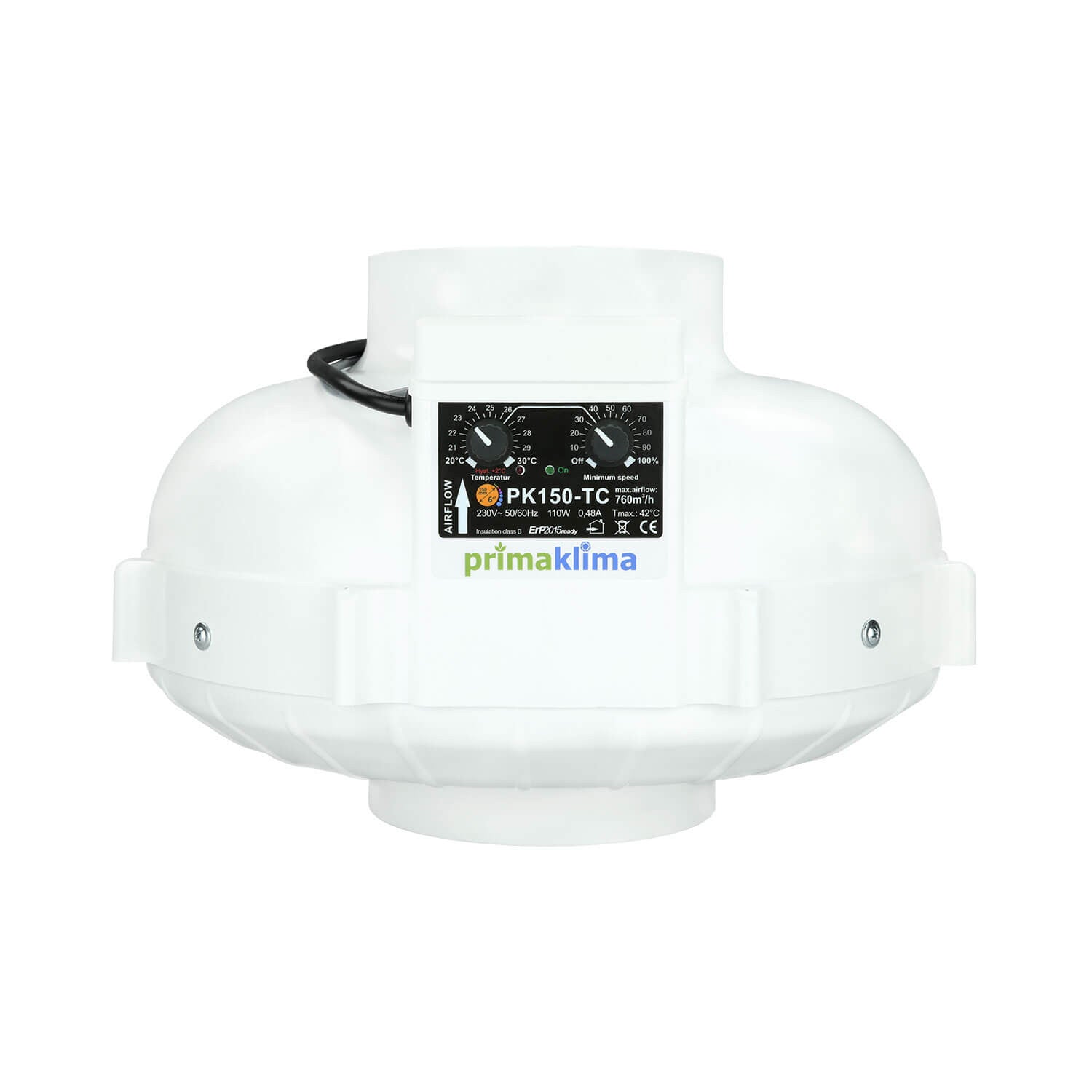

Prima Klima tube fan PK150-TC 150 mm - 760 m3/h, temperature controlled

The Prima Klima TEMP CTRL fan is equipped with a temperature sensor and the speed can be easily and automatically regulated.

Thermally controlled, highly efficient duct fan with an ebm-papst AC motor with backward curved blades. The fan has been optimally adapted to the housing, which is made of high-impact, non-flammable polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally smooth motor operation.

Characteristics:

• ebm-papst AC motor
• Backward curved impeller
• Low energy consumption
• Low noise emissions
• Adjustable temperature and speed control
• Aerodynamically optimized shape
• Impact-resistant and durable protection
• connection and control system in the housing

Technical specifications:

• flange: 150 mm
• Max. air flow: 760 m³/h
• Power: 110 W
• Voltage: 230V, 50/60Hz, 0.48A
• Tmax: 50 °C
• Dimensions: 338 x 233 mm (WxH)
• Weight: 3.3 kg
