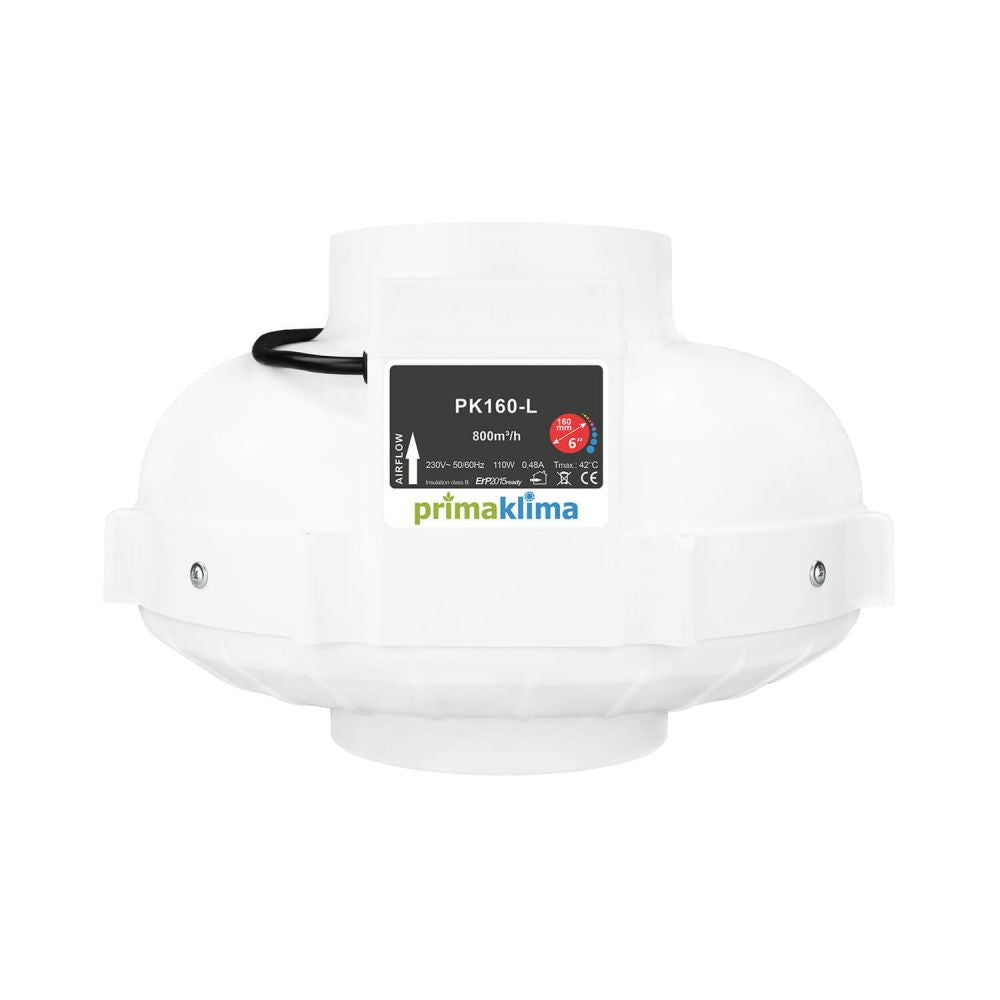

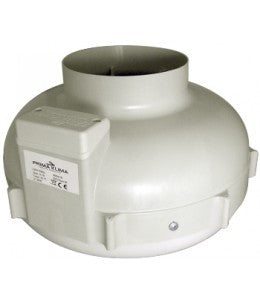

Prima Klima duct fan PK160-L 160 mm - 800 m3/h, 1-speed

Plastic radial fan Prima Klima PK160-L with AC motor from ebm-papst fits in pipes with a diameter of 160 mm. Maximum air output 280 m3/h. Simple pipe fan without control.

High-performance duct fan with an AC motor from ebm-papst with backward-curved blades. The AC motor is optimally adapted to the housing design. The housing is made entirely of shock- and flame-resistant polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally smooth motor operation.

Characteristics:

• ebm-papst AC Motor
• Backward curved blades
• Aerodynamically optimized shape
• Shockproof and robust housing
• Integrated connection and control system in the housing

Technical data:

• flange: 160 mm
• Max. air flow: 800 m³/h
• Power: 110 W
• Voltage: 230V, 50/60Hz, 0.48A
• Tmax: 50 °C
• Dimensions: 340 x 232 mm (WxH)
• Weight: 3.3 kg
