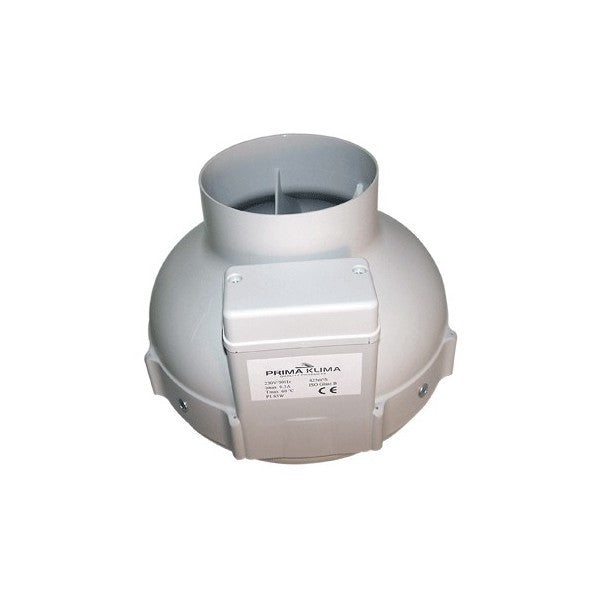

Prima Klima duct fan PK200-A 200 mm - 800 m3/h, 1-speed

Plastic radial fan Prima Klima PK200-A with AC motor from ebm-papst suitable for pipes with a diameter of 200 mm. Maximum air flow rate of 800 m3/h. Simple pipe fan without regulation.

High-performance duct fan with an ebm-papst AC motor and backward-curved blades. The AC motor has been optimally adapted to the housing construction. The housing is made entirely of shock- and flame-resistant polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally quiet motor operation.

Features:

• ebm-papst AC motor
• Backward curved impeller
• Aerodynamically optimized shape
• Shockproof and durable housing
• Integrated connection and control system in the housing

Technical specifications:

• flange: 200 mm
• Max. air flow: 800 m³/h
• Power: 155 W
• Power consumption: 230 V, 50/60 Hz, 0.68 A
• Tmax: 50 °C
• Dimensions: 340 x 248 mm (w x h)
• Weight: 3.4 kg
