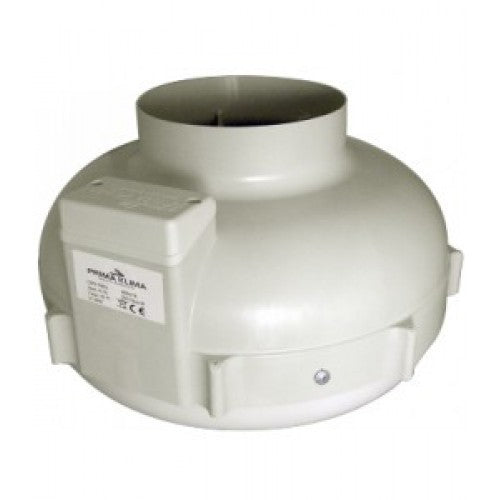

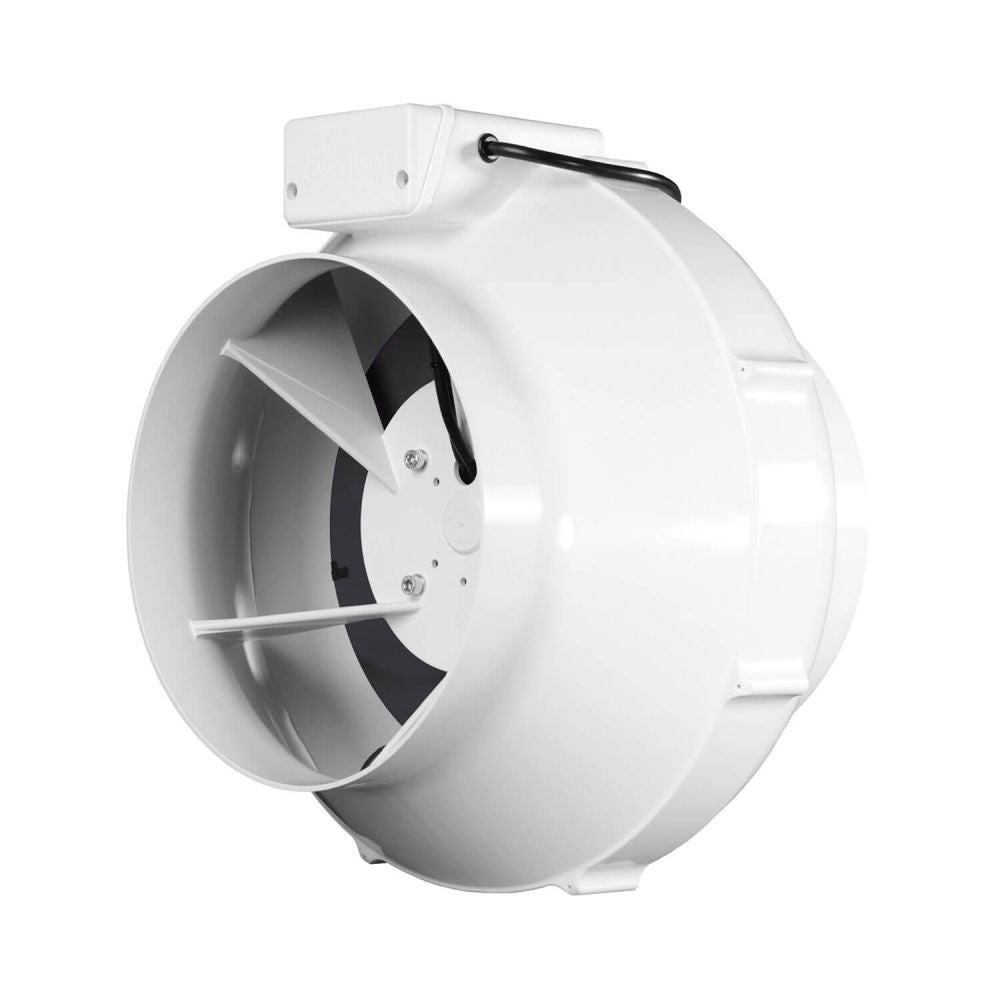

Prima Klima duct fan PK250-L1 250 mm - 1300 m3/h, 1-speed

Plastic radial fan Prima Klima PK250-L with AC motor from ebm-papst fits in pipes with a diameter of 250 mm. Maximum air flow capacity 1300 m3/h. Simple pipe fan without control.

High-performance tube fan with an ebm-papst AC motor with backward-curved blades. The AC motor has been optimally adapted to the housing construction. The housing is made entirely of high-strength polyamide (nylon), which is shock and fire resistant. Maintenance-free ball bearings with a long service life ensure that the motor runs particularly smoothly.

Characteristics:

• ebm-papst AC motor
• Backward curved blades
• Aerodynamically optimized shape
• Shock and fire resistant housing
• Integrated connection and control system in the housing

Technical specifications:

• flange: 250 mm
• Max. air flow: 1300 m³/h
• Power: 210 W
• Voltage: 230V, 50/60Hz, 0.93A
• Tmax: 50 °C
• Dimensions: 378 x 276 mm (WxH)
• Weight: 4.8 kg
