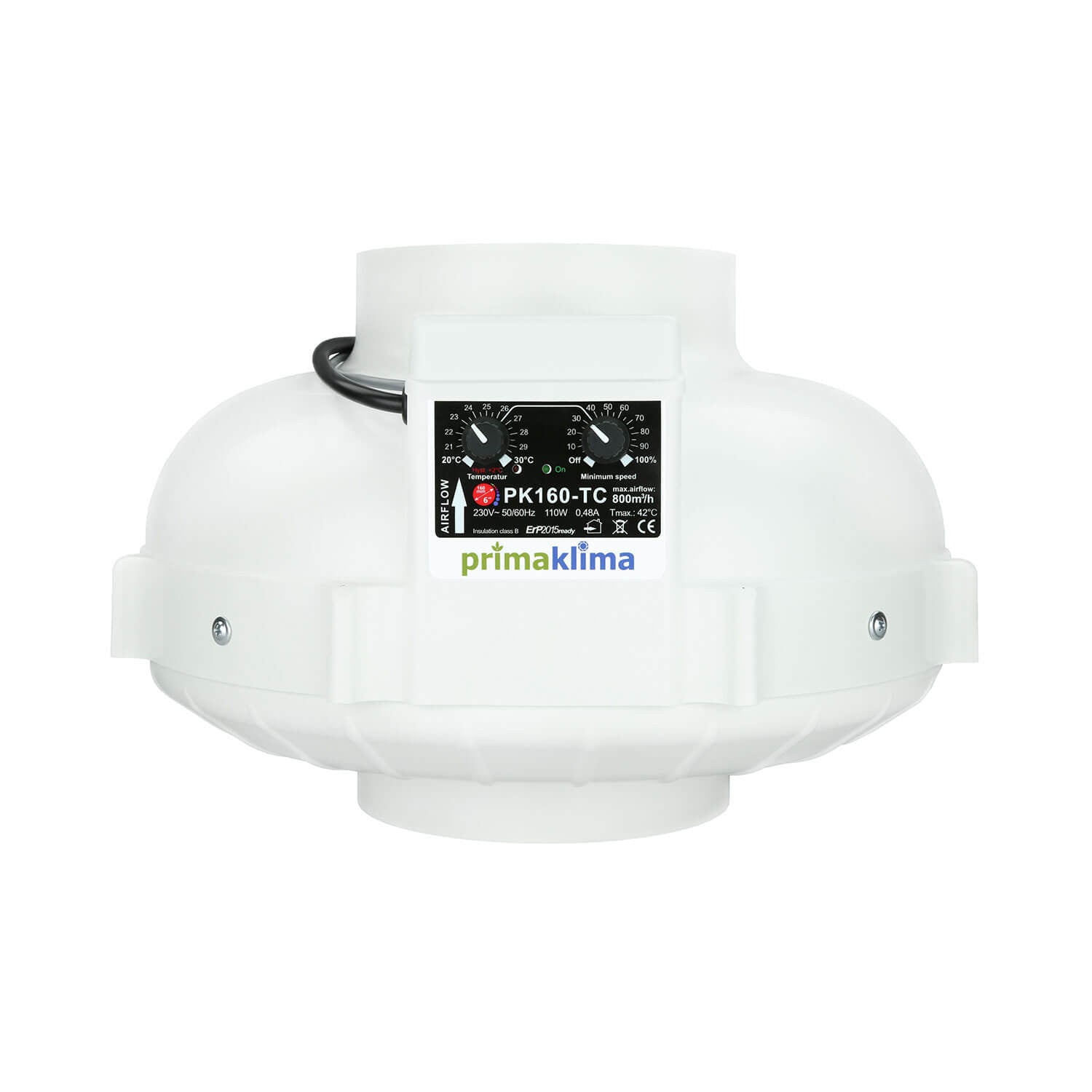

Prima Klima tube fan PK160-TC 160 mm - 800 m3/h, temperature controlled

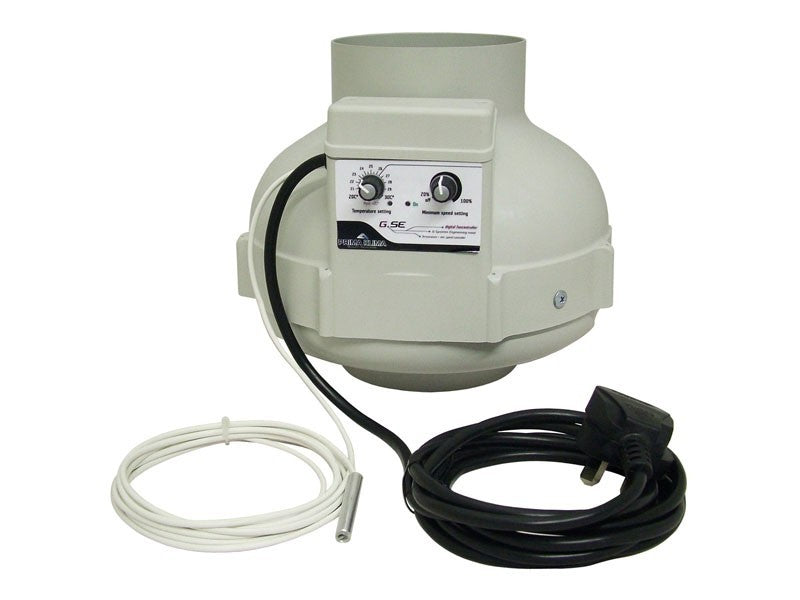

The Prima Klima TEMP CTRL fan is equipped with a temperature sensor and the speed can be easily and automatically regulated.

Temperature-controlled, highly efficient duct fan with an ebm-papst AC motor with backward-curved fan blades. The fan has been optimally adapted to the housing, which is made of high-impact, non-flammable polyamide (nylon). Maintenance-free ball bearings with a long service life contribute to an exceptionally quiet motor operation.

Characteristics:

• ebm-papst AC Motor
• impeller with backward-curved fan blades
• Low energy consumption
• Low noise emissions
• Adjustable temperature and speed control
• Aerodynamically optimized shape
• Impact-resistant and robust housing
• connection and control system in the housing

Technical data:

• flange: 160 mm
• Max. air flow: 800 m³/h
• Power consumption: 110 W
• Voltage: 230V, 50/60Hz, 0.48A
• Tmax: 50 °C
• Dimensions: 340 x 232 mm (WxH)
• Weight: 3.3 kg
