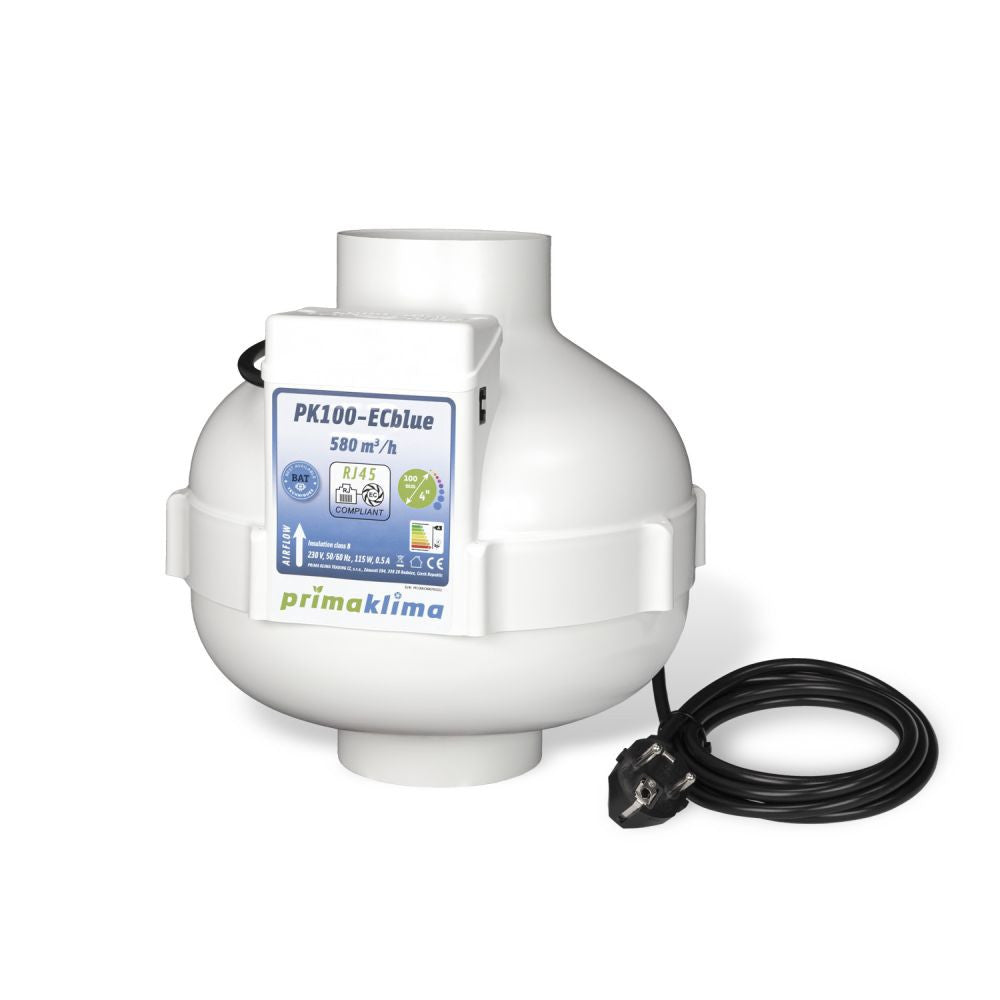

Prima air conditioning fan PK100-ECblue 100 mm - 580 m3/hour, EC motor

High-performance inline duct fan with first-class EC motor from ebm-papst with very low energy consumption thanks to EC technology. The external controller ECTC-1M is connected via an RJ45 connection.

Function and advantages:

• Premium ebm-papst motor

• Adjustment of temperature and speed with the digital controller Prima Klima ECTC-1M.
• Radial fan with backward-curved blades
• Low energy consumption
• Low noise emissions
• Aerodynamically optimized shape
• Impact-resistant and durable lid made of flame-retardant polyamide (nylon)
• Connection and control system integrated in the lid

Prima Klima PK100-ECblue is a small but highly efficient fan with a premium motor from ebm-papst and very low energy consumption . The device is quiet and energy efficient thanks to EC technology . The cover is made entirely of polyamide (nylon), which is heat-resistant and shock-proof . With the included angle brackets, the fan can be easily and safely attached to the wall or ceiling .

Recommended accessory - ECTC-1M Digital Controller.

• flange: 100 mm
• Max. air flow: 580 m³/h
• Power: 0-115 W
• AC Input: 230V 50/60Hz 0.5A
• Max. temperature: 50 °C
• Dimensions: 244 mm x 241 mm (w/h)
• Weight: 2.4 kg
