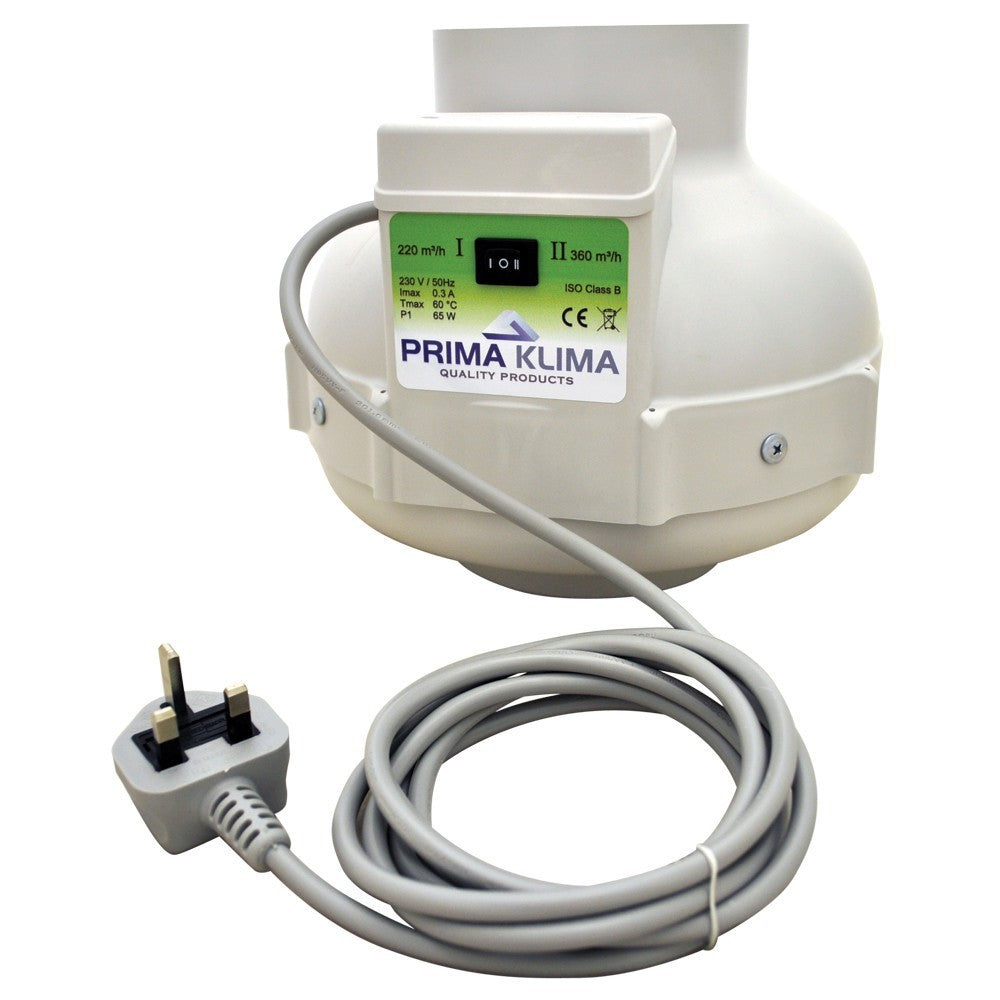

Prima Klima duct fan PK125-2 125 mm - 220/420 m3/hr, 2-speed

Reliable 2-speed fan from Prima Klima with an AC motor from ebm-papst and backward-curved blades.

Double fan, highly efficient tube fan with an AC motor from ebm-papst and backwards curved blades. The fan has been optimally adapted to the housing, which is made of high-impact, non-flammable polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally quiet motor operation.

Characteristics:

• ebm-papst AC motor
• Backward-curved fan wheels
• Adjustable temperature and speed control
• Aerodynamically optimized shape
• Impact-resistant and robust housing
• connection and control system in the housing

Technical specifications:

• flange: 125 mm
• Max. air flow: 220 / 400 m³/h
• Power: 63 W
• Supply: 230 V, 50/60 Hz, 0.29 A
• Tmax: 50 °C
• Dimensions: 244 x 220 mm (WxH)
• Weight: 2.2 kg
