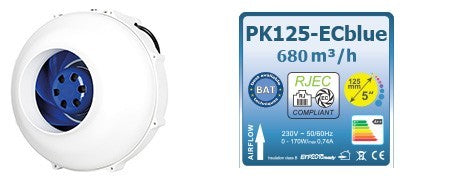

Prima Klima pipe fan PK125-ECblue 125 mm - 680 m3/hour, EC motor

Highly efficient inline duct fan with first-class EC motor from ebm-papst with very low energy consumption thanks to EC technology. The external controller ECTC-1M is connected via an RJ45 connection. Temperature and speed setting with the digital controller Prima Klima ECTC-1M.

Features and Benefits:

• Premium ebm-papst motor
• Adjustment of temperature and speed via the digital controller Prima Klima ECTC-1M.
• impeller with backward-curved blades
• Low energy consumption
• Low noise emissions
• Aerodynamically optimized shape
• Shock- and fire-resistant lid made of polyamide (nylon)
• Connection and control system integrated in the lid

Very efficient fan with premium ebm-papst motor and very low energy consumption. The device is quiet and energy efficient thanks to EC technology. The cover is made entirely of polyamide (nylon), which is heat-resistant and shock-proof. The fan can be easily and safely attached to the wall or ceiling using the angle brackets provided.

Recommended accessory - ECTC-1M Digital Controller.

• flange: 125 mm
• Max. air flow: 680 m³/h
• Power: 0-170 W
• AC input: 230 V 50/60 Hz 0.74 A
• Max. temperature: 42 °C
• Dimensions: 244 mm x 244 mm (W/H)
• Weight: 2.42 kg (2.98 kg with packaging)
