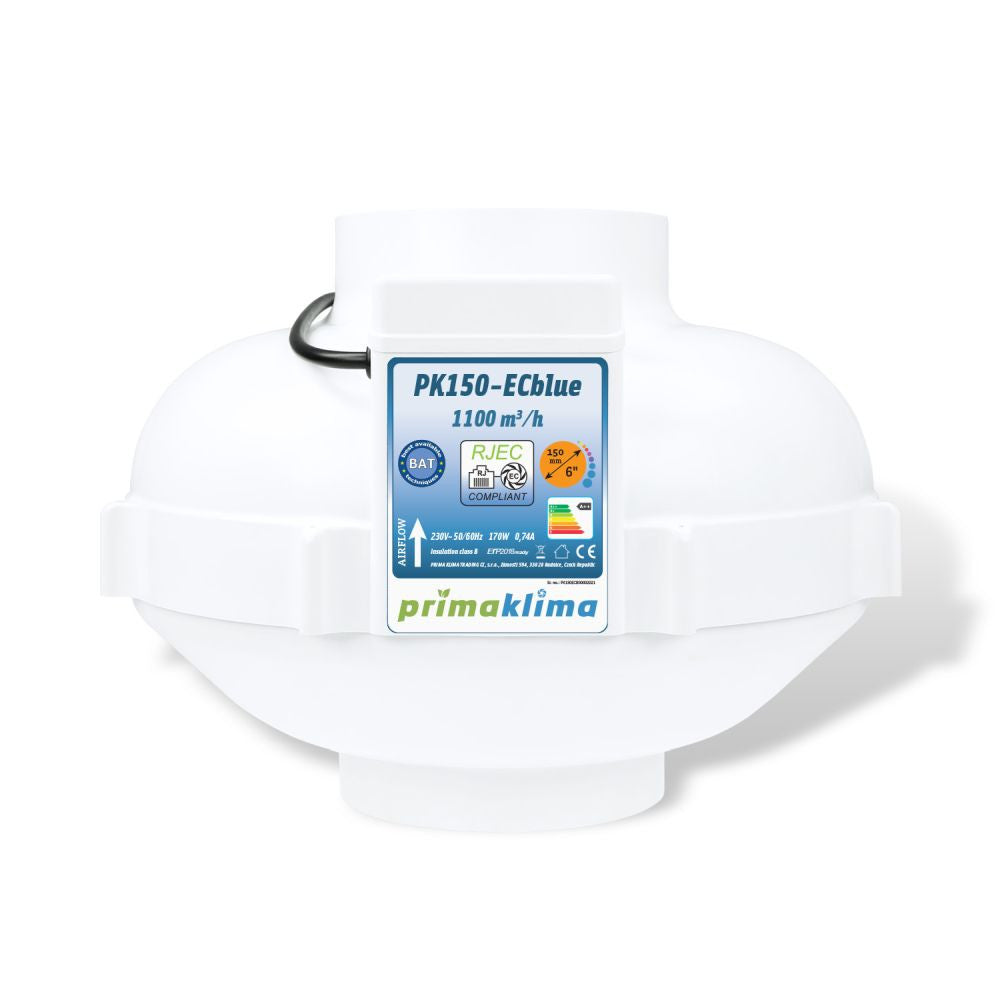

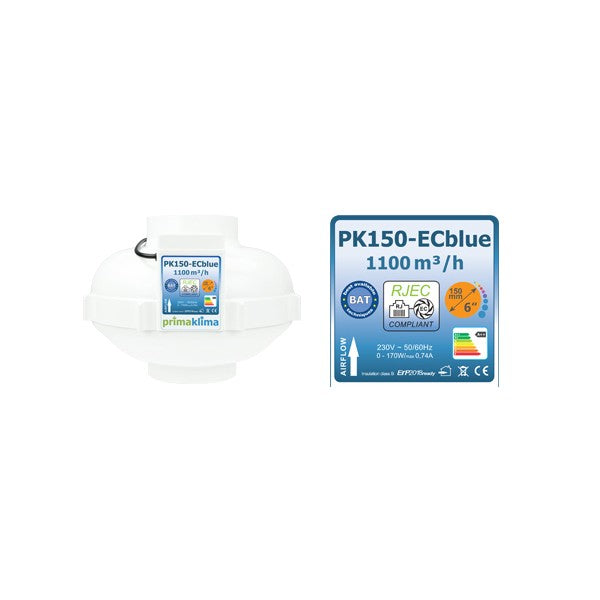

Prima Klima pipe fan PK150-ECblue 150 mm, 1100 m3/hour, EC motor

Highly efficient inline duct fan with first-class EC motor from ebm-papst with very low energy consumption thanks to EC technology. The external controller ECTC-1M is connected via an RJ45 connection. Temperature and speed setting with the digital controller Prima Klima ECTC-1M.

Features and Benefits:

• Premium ebm-papst motor
• Adjustment of temperature and speed with the digital controller Prima Klima ECTC-1M.

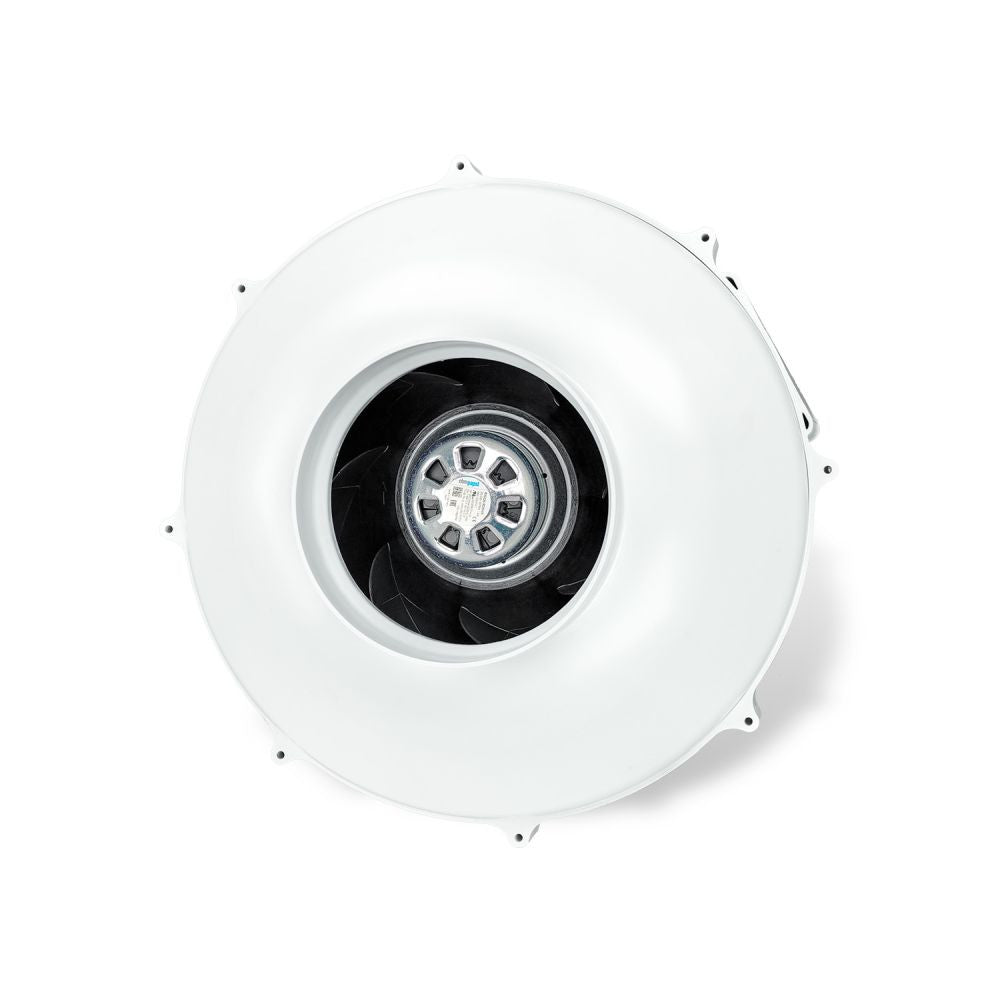

• Backward curved blades on the impeller
• Low energy consumption
• Low noise pollution
• Aerodynamically optimized shape
• Impact-resistant and durable housing made of non-flammable polyamide (nylon)
• Connection and control system integrated in the housing

Very efficient fan with premium motor from ebm-papst and very low energy consumption. The device is quiet and energy efficient thanks to EC technology. The housing is made entirely of polyamide (nylon), which is heat-resistant and shock-proof. The fan can be easily and safely attached to the wall or ceiling using the angle brackets provided.

Recommended accessory - ECTC-1M digital controller.

• flange: 150 mm
• Max. air flow: 1100 m³/h
• Power: 0-170 W
• AC Input: 230V 50/60Hz 0.74A
• Max temperature: 42 °C
• Dimensions: 338 mm x 243 mm (w/h)
• Weight: 3.30 kg (4.22 kg with packaging)
