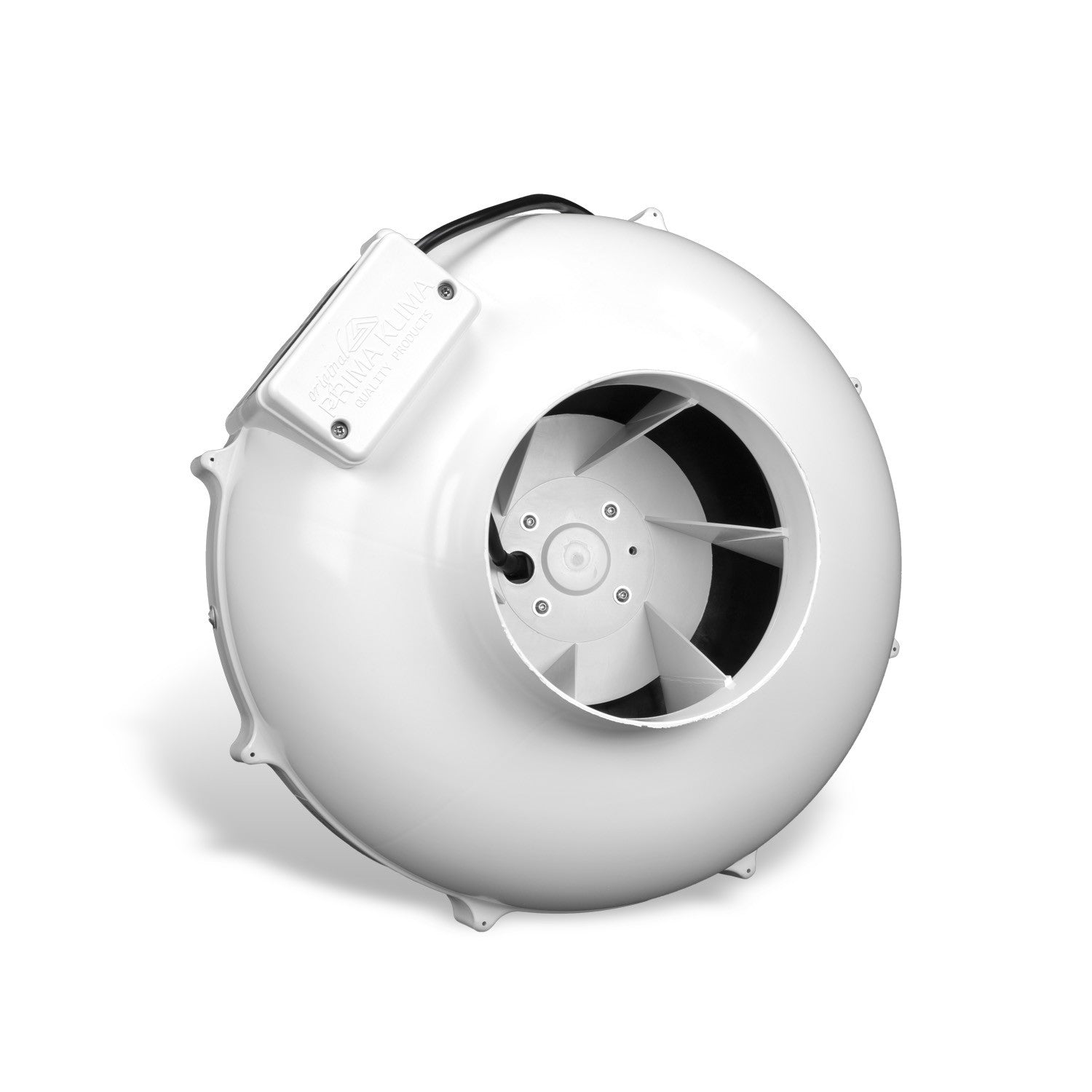

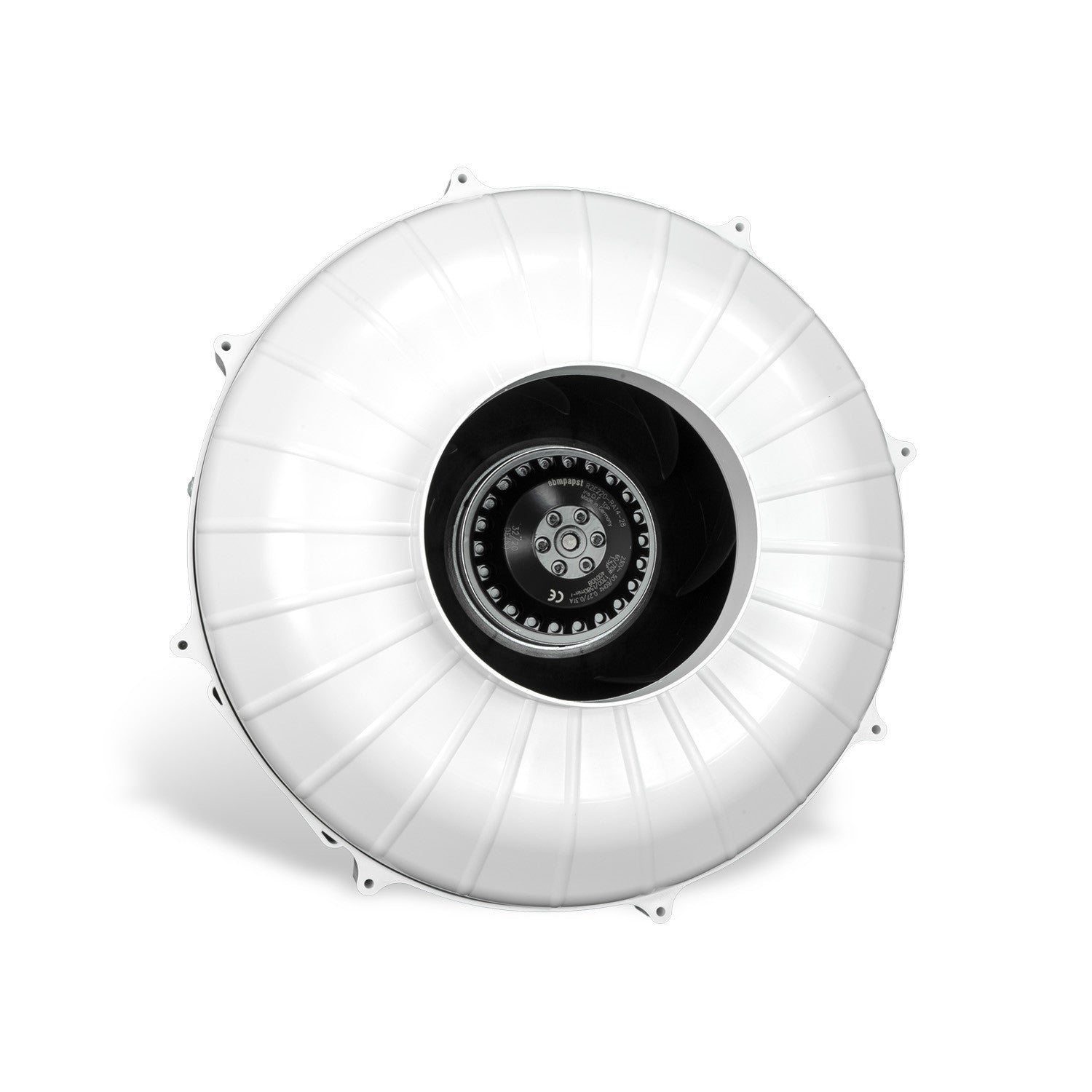

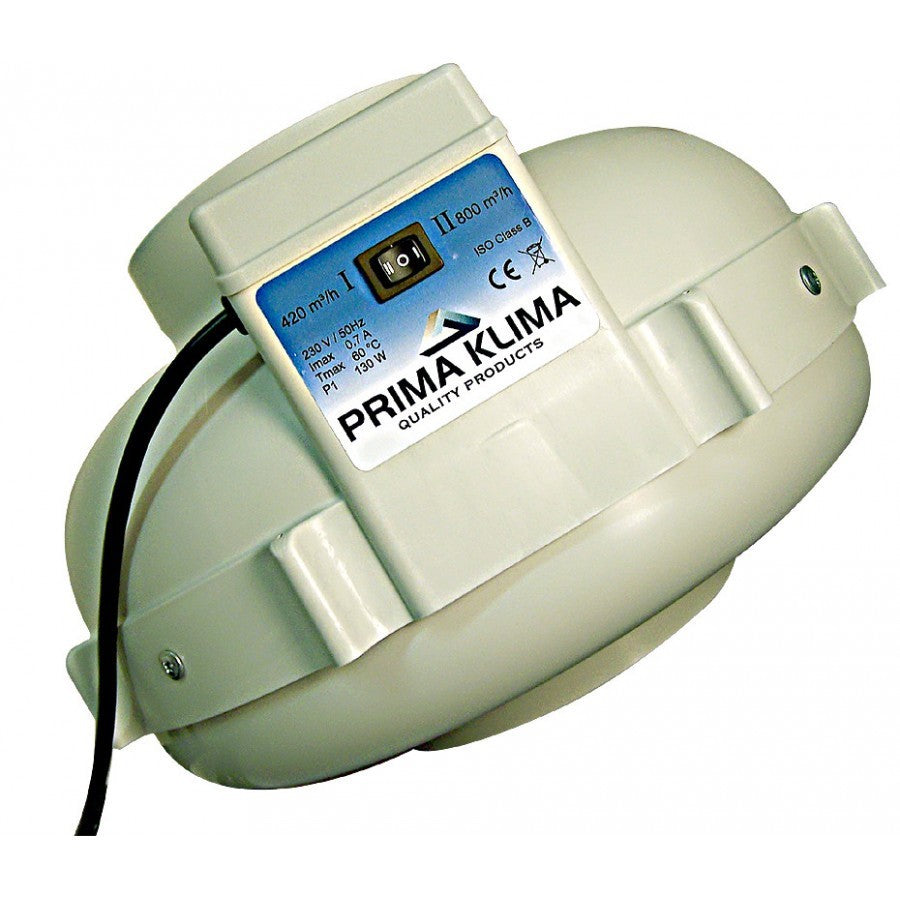

Prima Klima duct fan PK160-2 160 mm - 420/800 m3/hr, 2-speed

Reliable 2-speed fan from Prima Klima with an AC motor from ebm-papst and backward-curved blades.

High efficiency manoeuvrable fan for ducts, equipped with an ebm-papst AC motor with backward curved blades. The fan has been optimally adapted to the cover, which is made of high-impact, non-flammable polyamide (nylon). Maintenance-free ball bearings with a long service life ensure an exceptionally smooth motor operation.

Characteristics:

• ebm-papst AC motor
• Backward curved blades on the impeller
• Adjustable temperature and speed control
• Aerodynamically optimized shape
• Impact-resistant and durable housing
• connection and control system in the housing

Technical specifications:

• flange: 160 mm
• Max. air flow: 420 / 800 m³/h
• Power: 108 W
• Voltage: 230V, 50/60Hz, 0.47A
• Tmax: 50 °C
• Dimensions: 340 x 232 mm (WxH)
• Weight: 3.3 kg
