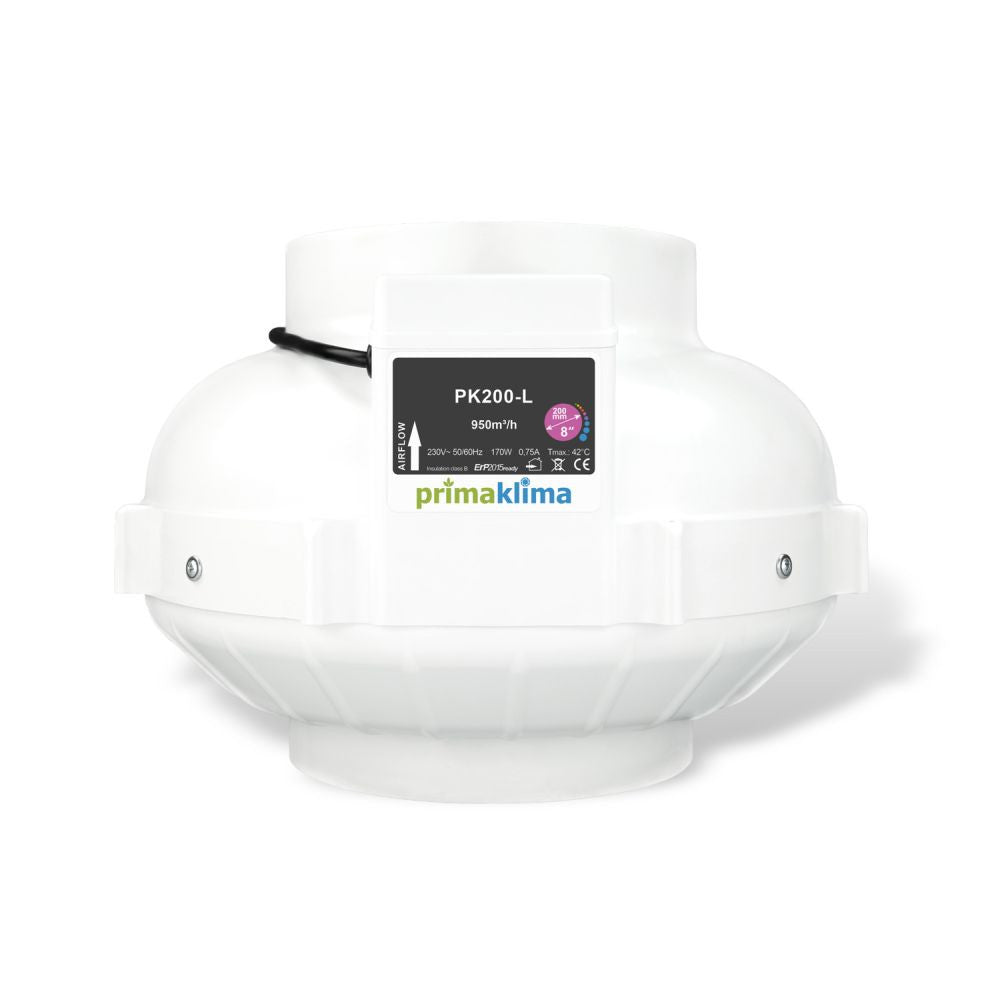

Prima Klima duct fan PK200-L 200 mm - 950 m3/h, 1-speed

Plastic radial fan Prima Klima PK200-L with AC motor from ebm-papst fits in pipes with a diameter of 200 mm. Maximum air output 950 m3/h. Simple pipe fan without regulation.

High-performance tube fan with an AC motor from ebm-papst and backward-curved blades. The AC motor has been optimally adapted to the housing design. The housing is made entirely of shock- and flame-resistant polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally smooth motor operation.

Characteristics:

• ebm-papst AC Motor
• Backward curved impeller
• Aerodynamically optimized shape
• shock- and fireproof housing
• Integrated connection and control system in the housing

Technical specifications:

• flange: 200 mm
• Max. air flow: 950 m³/h
• Power: 170 W
• Voltage: 230V, 50/60Hz, 0.75A
• Tmax: 50 °C
• Dimensions: 340 x 248 mm (WxH)
• Weight: 3.8 kg
