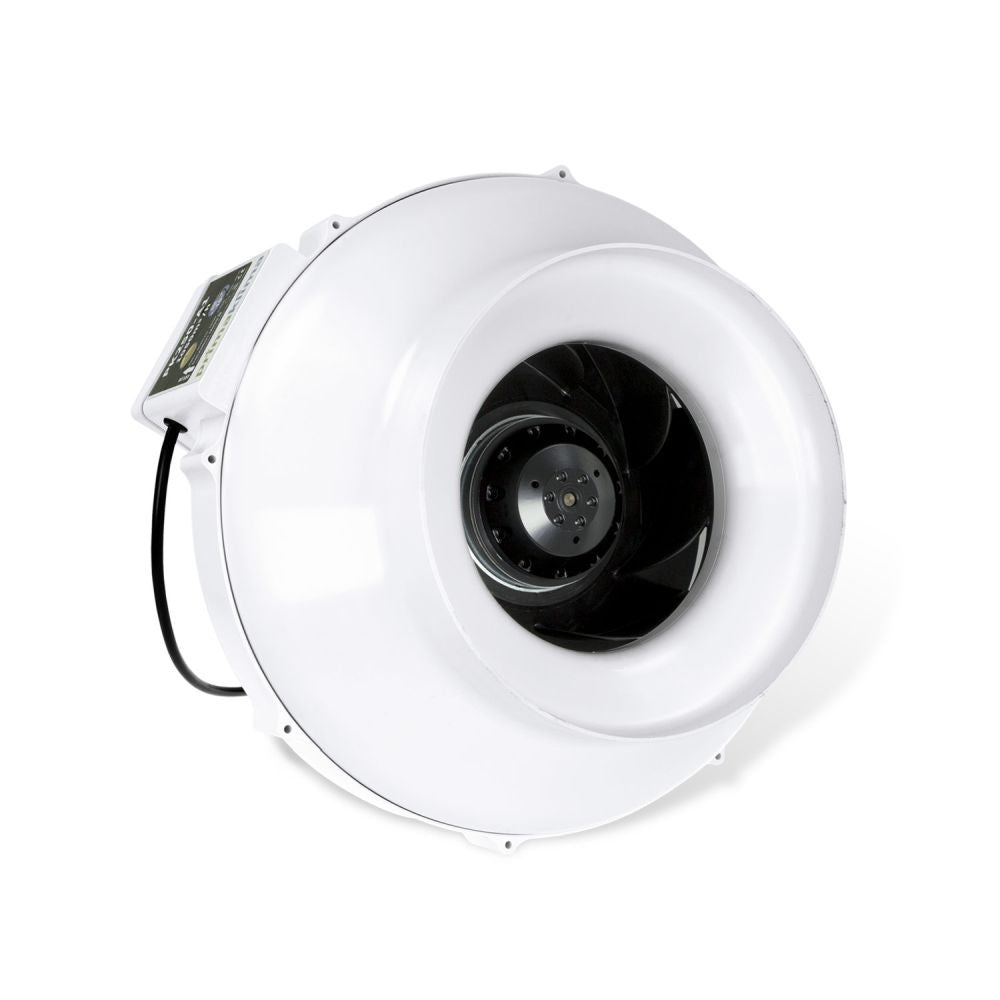

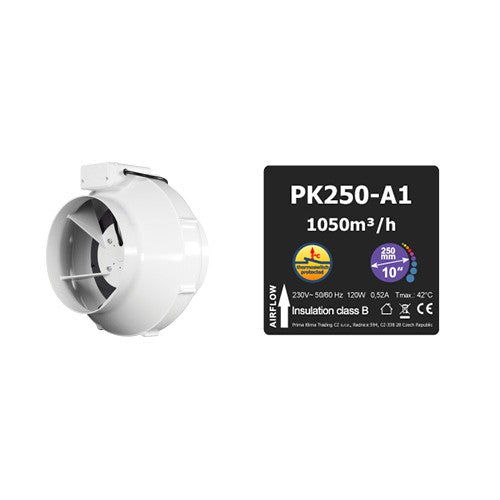

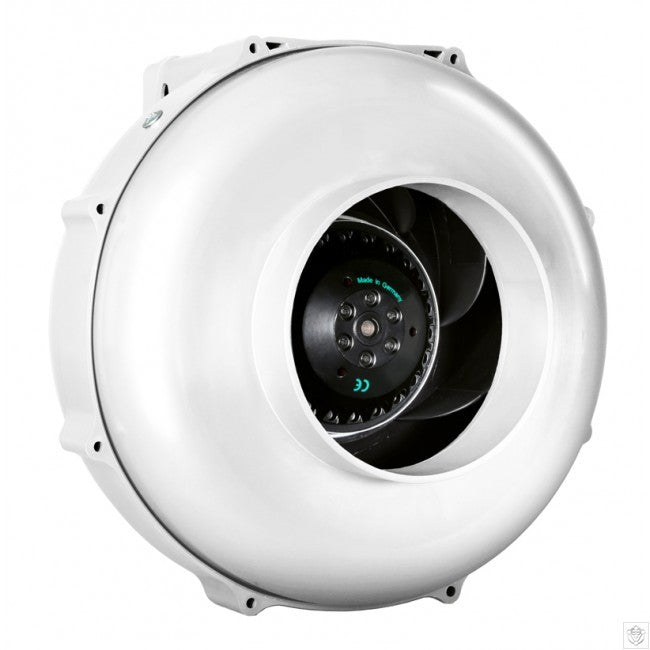

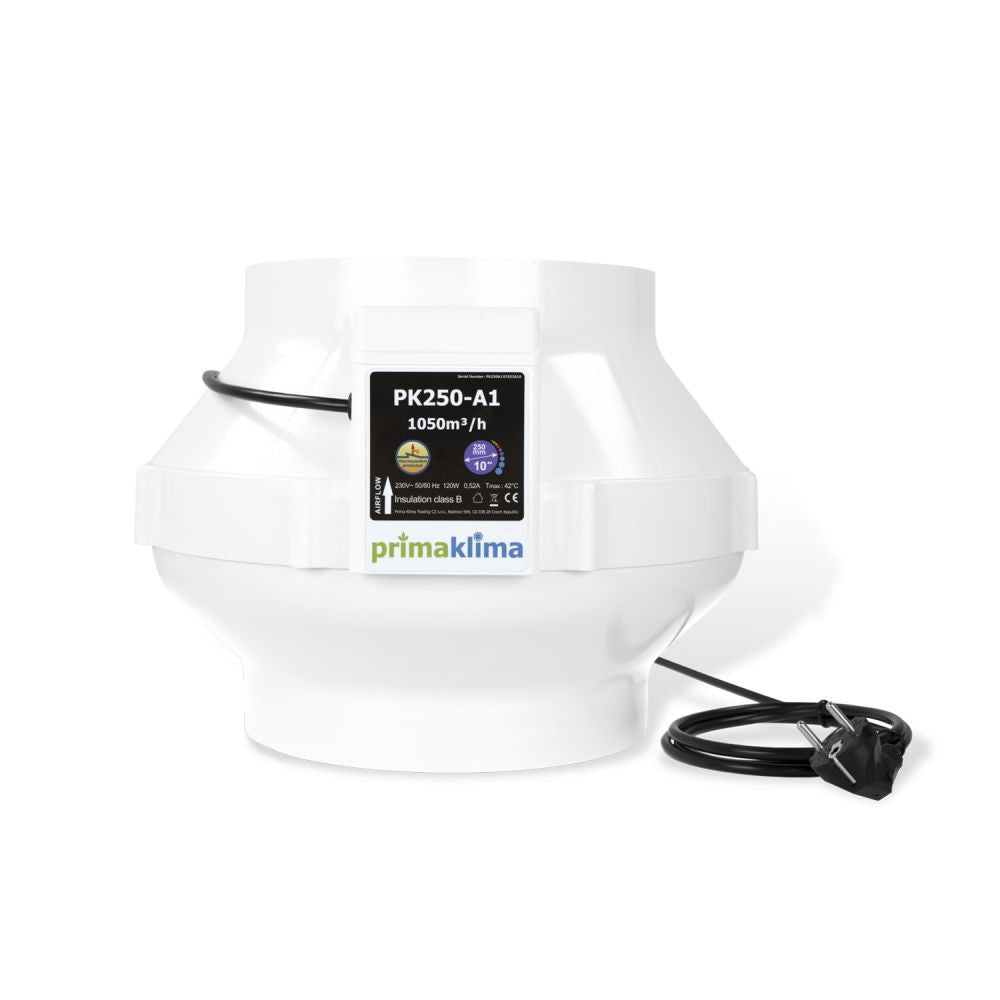

Prima Klima duct fan PK250-A1 250 mm - 1050 m3/h, 1-speed

Plastic radial fan Prima Klima PK250-A with AC motor ebm-papst fits in pipes with a diameter of 250 mm. Maximum air flow rate 1050 m3/h. Simple pipe fan without regulation.

High-performance tube fan with an ebm-papst AC motor with backward-curved blades. The AC motor has been optimally adapted to the housing construction. The cover is made entirely of shock- and flame-resistant polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally quiet motor operation.

Characteristics:

• ebm-papst AC motor
• Radial fan with backward-curved blades
• Aerodynamically optimized shape
• shock- and fireproof housing
• Integrated connection and control system in the housing

Technical data:

• flange: 250 mm
• Max. air flow: 1050 m³/h
• Power: 120 W
• Voltage: 230V, 50/60Hz, 0.52A
• Tmax: 50 °C
• Dimensions: 378 x 276 mm (w x h)
• Weight: 4.8 kg
