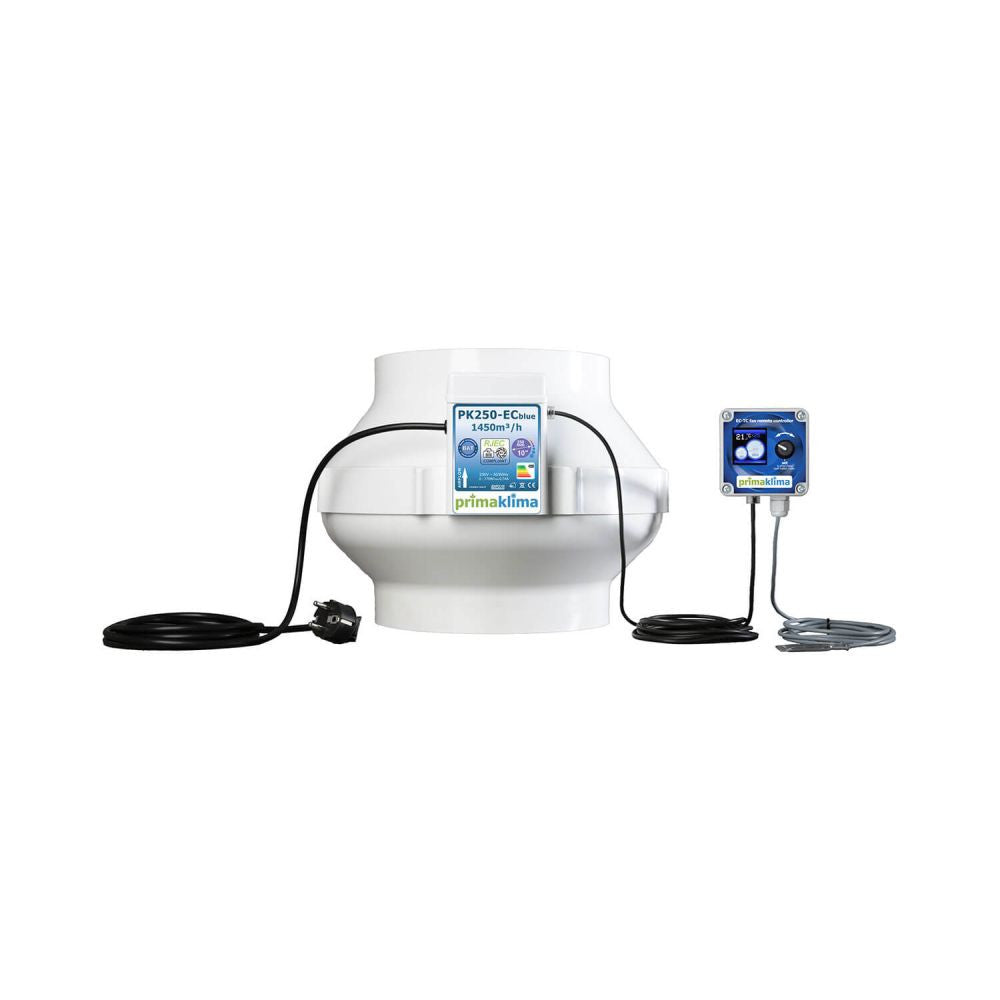

Prima Klima pipe fan PK250-ECblue 250 mm - 1450 m3/hour, EC motor

Highly efficient inline duct fan with first-class EC motor from ebm-papst with very low energy consumption thanks to EC technology. The external controller ECTC-1M is connected via an RJ45 connection. Temperature and speed setting with the digital controller Prima Klima ECTC-1M.

Features and Benefits:

• Premium ebm-papst motor
• Adjustment of temperature and speed via the digital controller Prima Klima ECTC-1M.

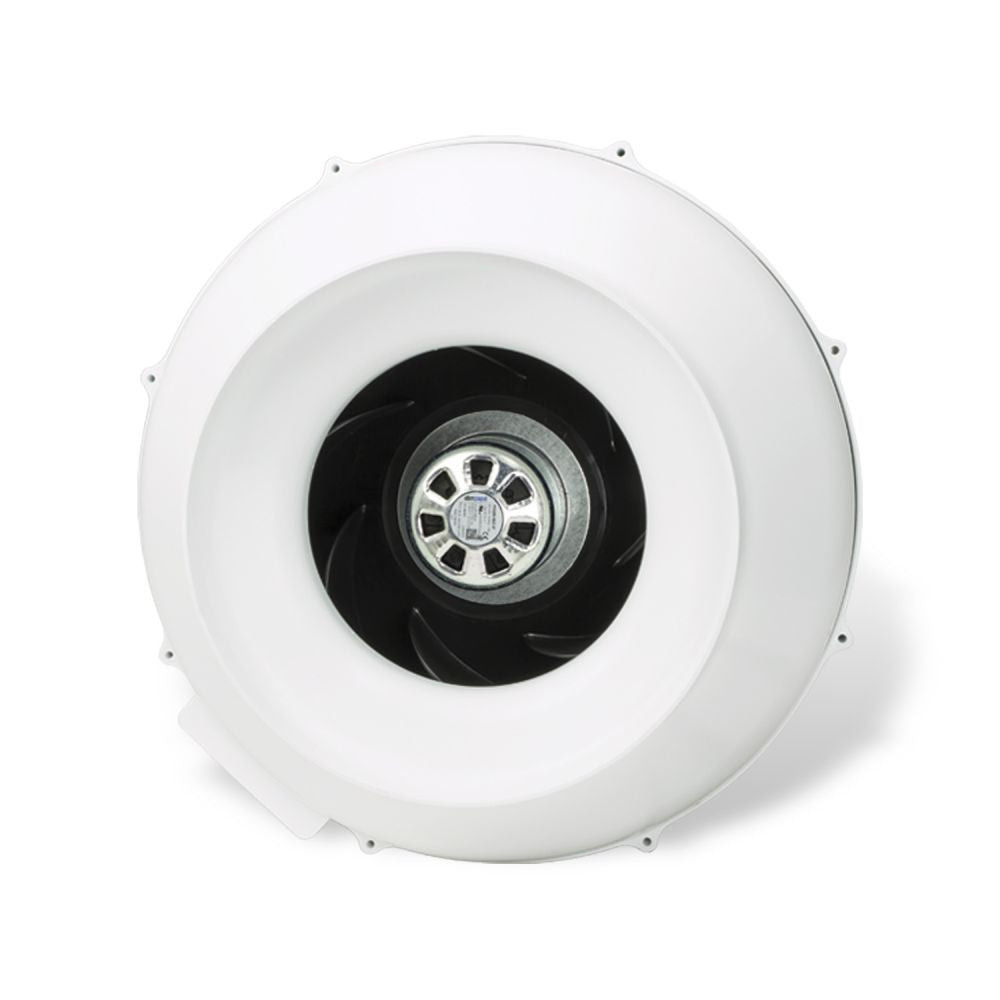

• Radial fan with backward-curved blades
• Low energy consumption
• Low noise emissions
• Aerodynamically optimized shape
• Impact-resistant and durable housing made of flame-retardant polyamide (nylon)
• Connection and control system integrated in the housing

Highly efficient fan with premium motor from ebm-papst and very low energy consumption. The device is quiet and energy efficient thanks to EC technology. The housing is made entirely of polyamide (nylon), which is heat-resistant and shock-proof. The fan can be easily and securely attached to the wall or ceiling using the angle brackets provided.

Recommended accessory - ECTC-1M Digital Controller.

• flange: 250mm
• Max. air flow: 1450m³/h
• Power: 0-170W
• AC input: 230V 50/60Hz 0.74A
• Max. temperature: 42°C
• Dimensions: 369 mm x 276 mm (W/H)
• Weight: 3.80 kg (5.08 kg with packaging)
