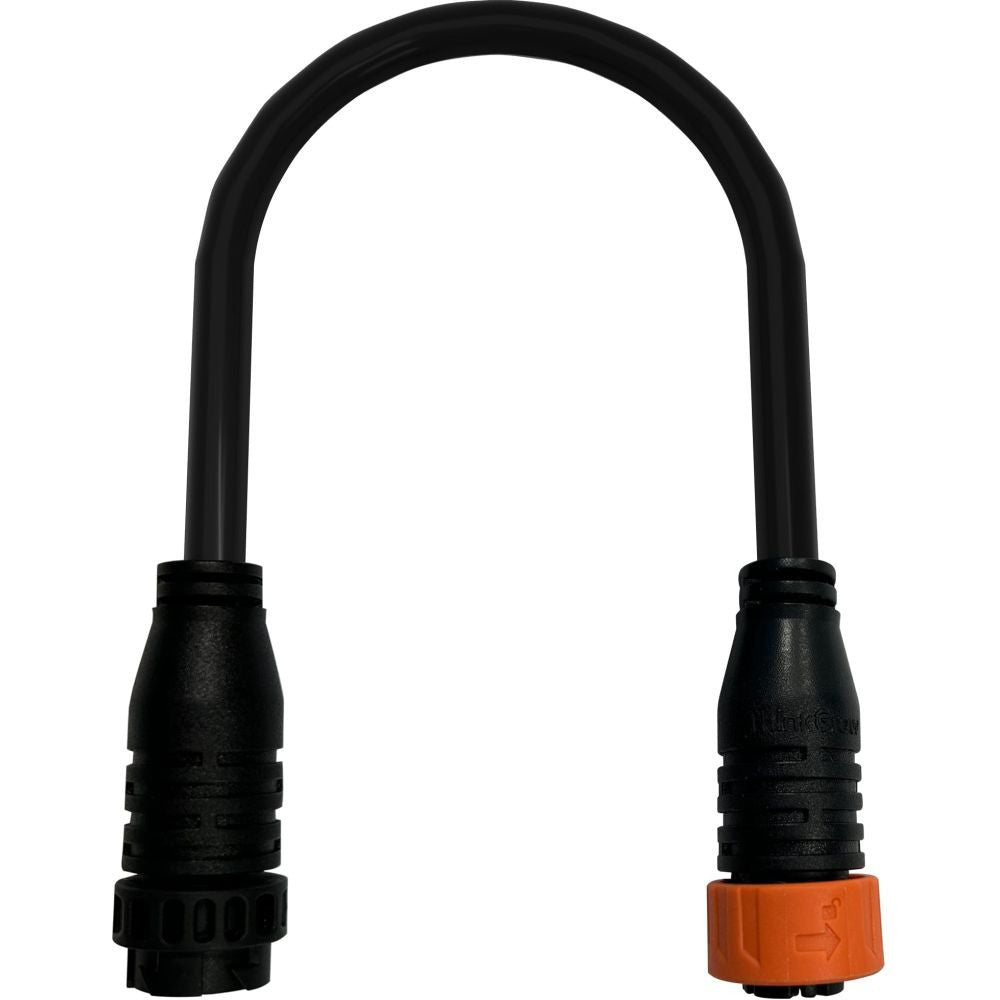

ThinkGrow Model One LED 1ft AWG #18 Daisy Chain Cord (TDC-2)

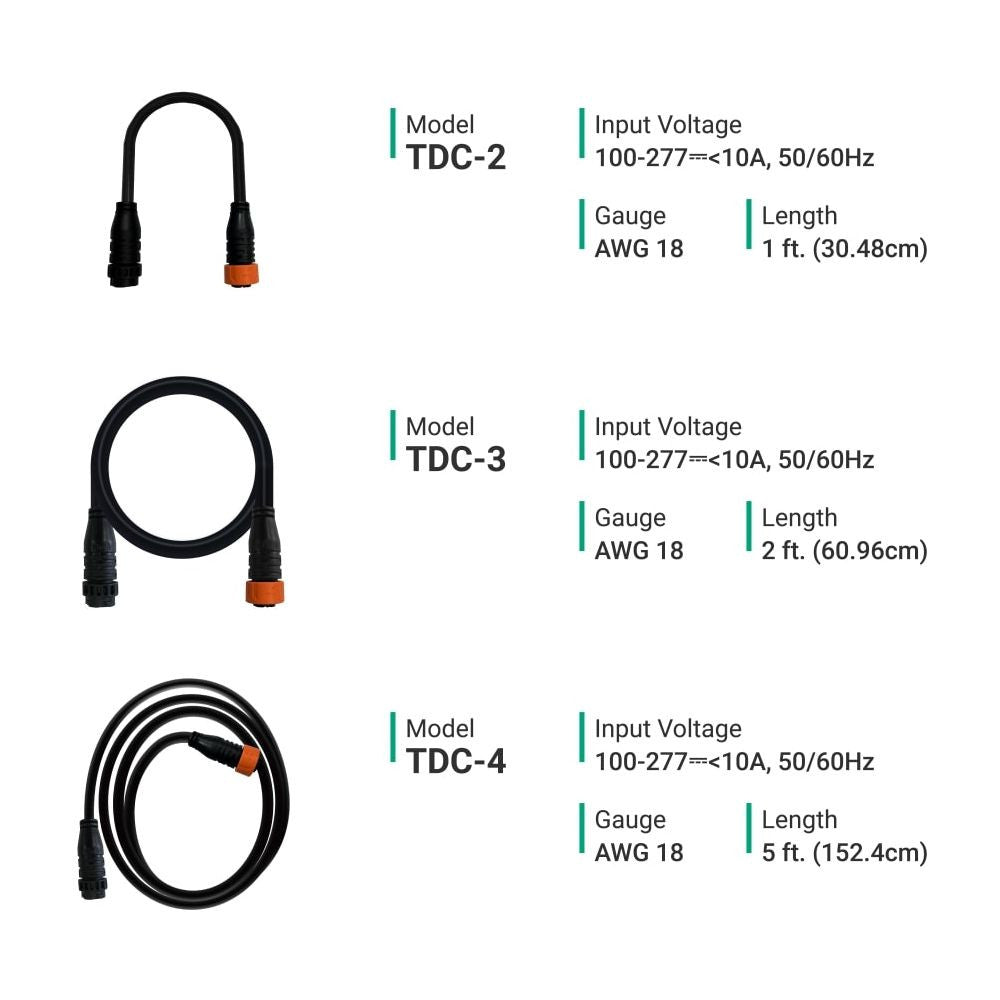

This daisy chain power cable is specially designed for the new Thinkgrow Model One system to connect the LED drivers together. Length: 30 cm. This daisy chain power cable is specifically designed for the new Thinkgrow Model One system to connect the LED drivers together. The Model One system can reduce the number of outlets and cables required by combining multiple LED drivers into a single power cable. Each "group" of Model One drivers must be connected to power using one of the TDC-1 cables and one of the EC-120 or EC-240 power cables (120 or 240 volts). The TDC-1 power cable is used to connect to the main power source and transmit data from the HCS lighting controller to the LED drivers. The TDC-2/3/4 are used to transmit power and control signal from one LED driver to the next LED driver. Package Contents: 1x 1ft AWG #18 Daisy Chain Cable for Model One LED System Specification: AWG: 18 Length: 30cm. Amp: 10A. Input voltage: 100-277V~, 50/60Hz. Temperature range: 32-104℉.
