Trolmaster Expander Station 4 pro control of multiple devices (4RS-1)

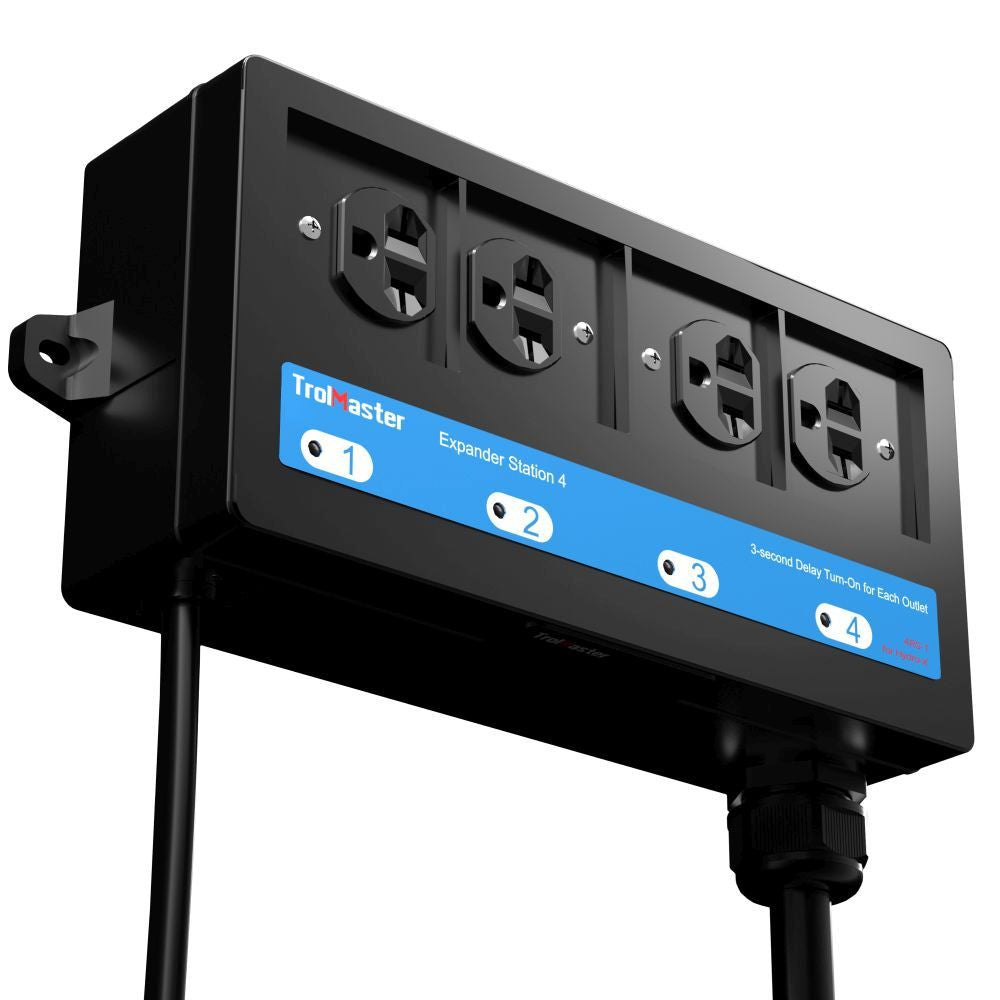

The 4RS-1 is a universal 4-outlet expansion module. It can be used with any TrolMaster device module in a "plug and play" style to expand the number of devices that can be controlled with the Hydro-X system.

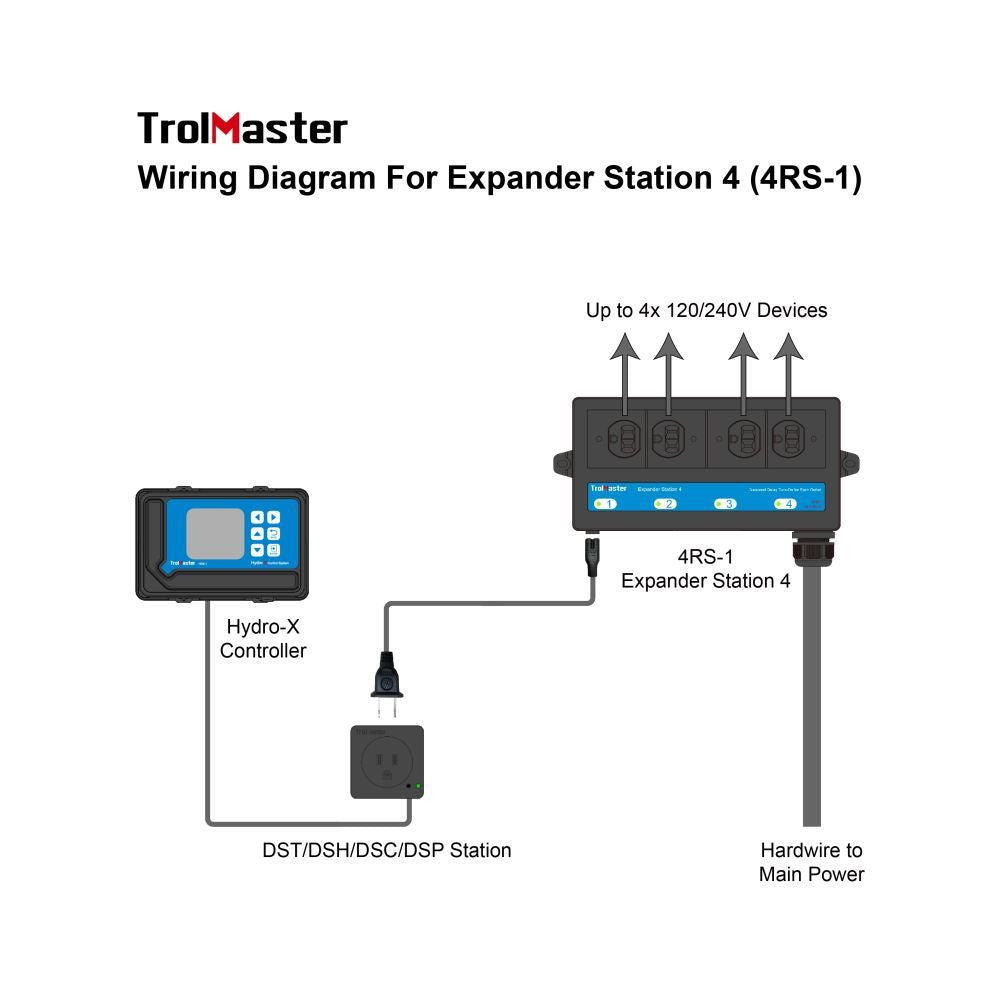

4RS-1 is a universal 4 drawer expansion module. It can be used with any Trolmaster "plug-in" style module to expand the number of devices that can be controlled using the Hydro-X system. The single 120-240V "trigger" wire in the 4RS-1 module connects to your device/control module. When the device module is activated by the Hydro-X device, the 4RS-1 trigger wire will turn on each socket on the 4RS-1 with a 3 second delay between activation. This minimizes high start-up (start-up current) and allows safe control of up to 4 devices. 4RS-1 must be installed with a 120/240V circuit (up to 50 and at 240V). Three wire terminals in the device allow for 6 AWG wires to be connected, making the connection to the power supply.

* This plug is not listed on the UL or ETL
