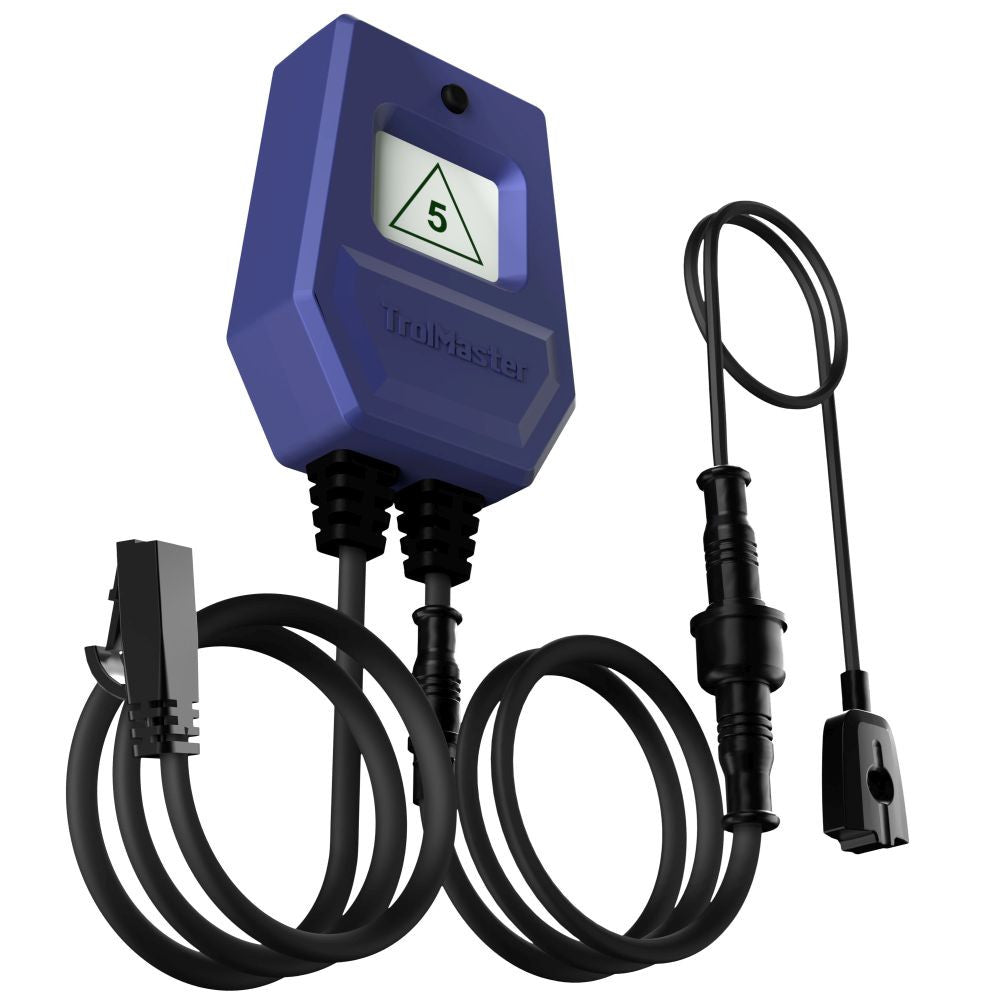

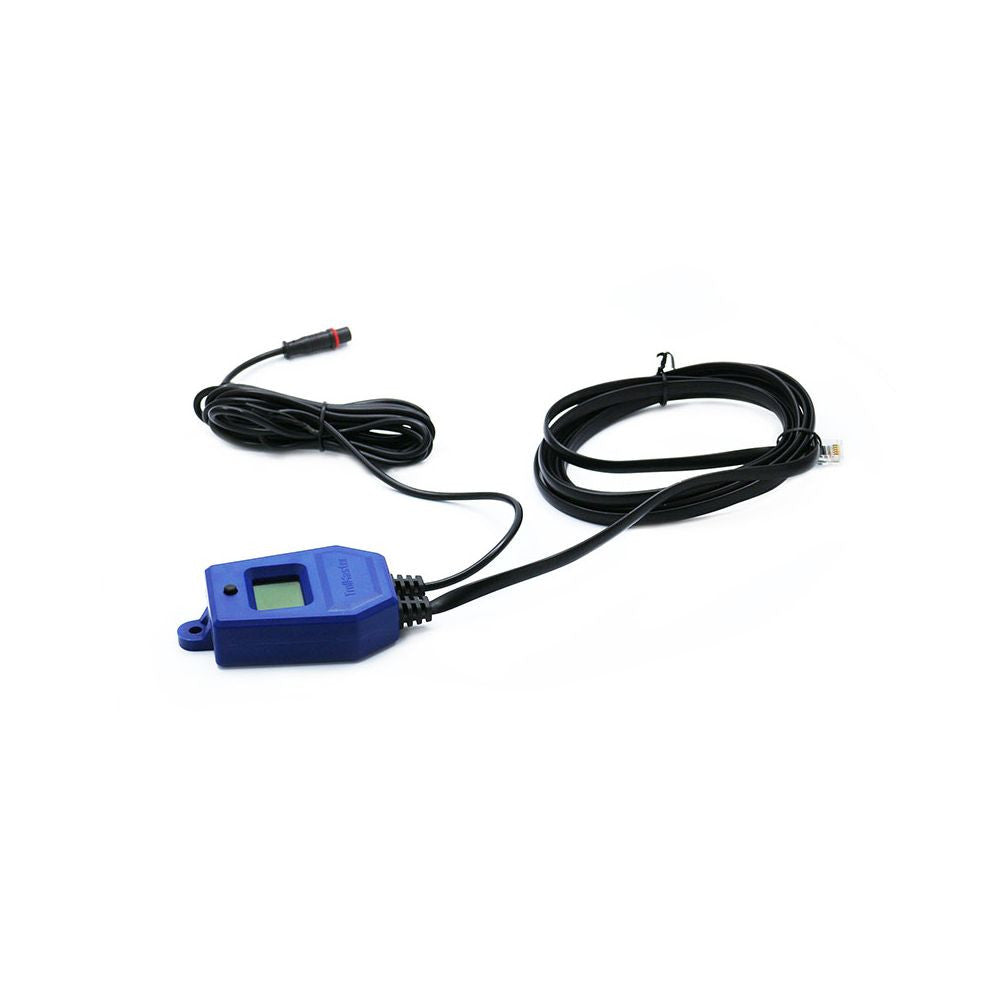

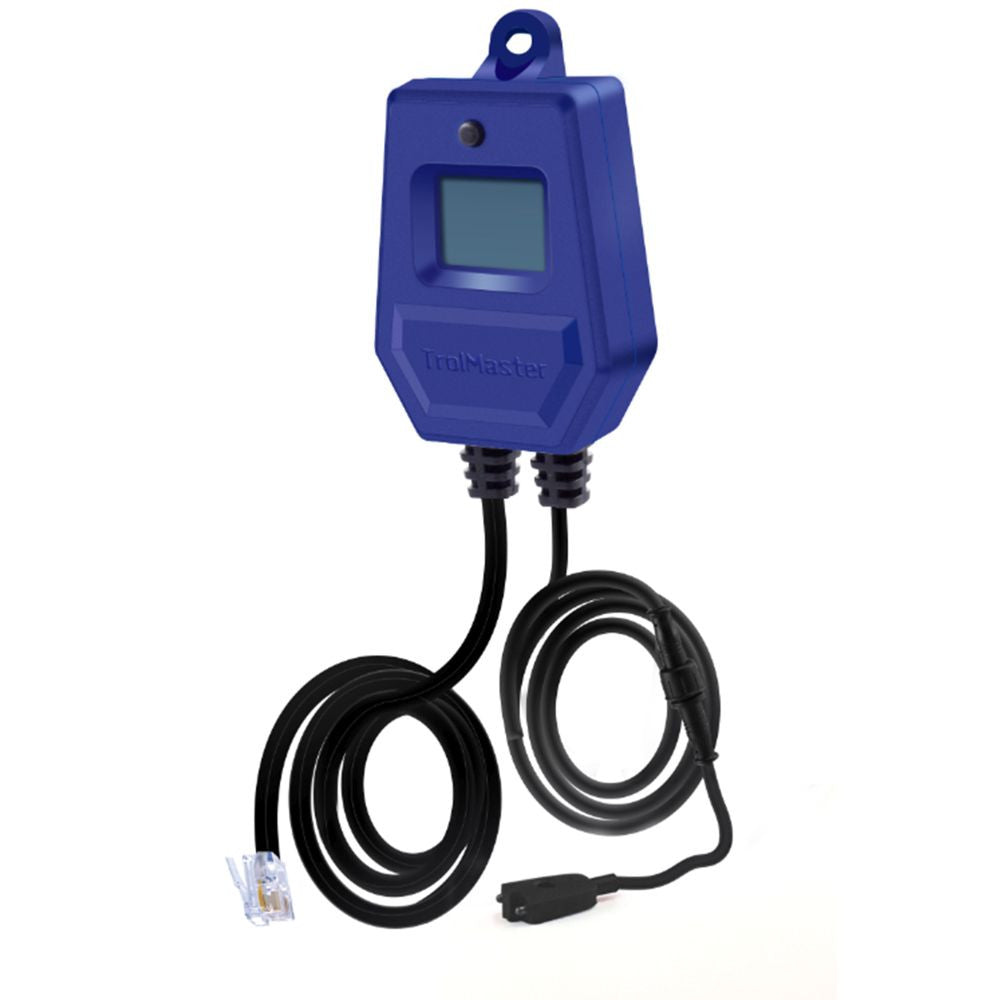

Trolmaster Water Detector Monitor (WD-1)

The WD-1 water detector can be used in two ways. Firstly, it can be used as a leak detector to easily monitor floors or rooms for the presence of water. Secondly, the WD-1 can be used as a water monitoring monitor.

Water detector WD-1 can be used in two ways. First, it can be used as a leak detector for simple monitoring of the soil or room for the presence of water. In the second way, the WC-1 can be used as a monitor for water control. In this way, the water detector is placed in a location where water drainage is accumulated (or where the water enters the growing medium). Each output (magnet or pump) on the Aqua-X system can be "assigned" to a specific WD-1. Each time the magnet or pump associated with the WD-1 is activated by the Aqua-X system, the WD-1 must sense water during the adjustable delay time. If no water is detected (pump or magnet failure), the Aqua-X will send a user alarm with a notification of "irrigation failure". Up to 25 WD-1 devices can be connected to one Aqua-X device. One water detector is located at the bottom of the nutrient tank and one at the top of the tank. When the liquid level falls below the lower sensor, the Aqua-X activates the solenoid or pump and the tank is filled to the top of the sensor. Municipal water or water with nutrients. The Reverse Osmosis/RO water may have such low dissolved solids that the water detector is unable to detect water leaks from RO. ul> li> 1 x Water Detector

1 x Touchspot

1 x rj12 T-Splitter

1 x 16ft RJ12 cable
