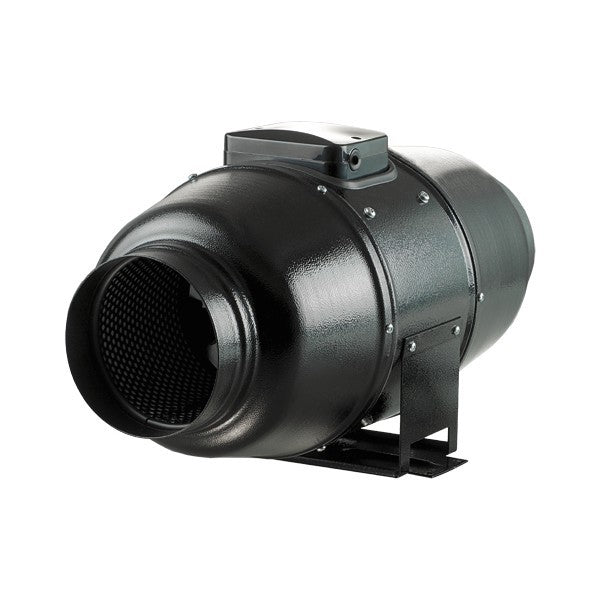

Dalap AP Quiet 100 mm, 170/240 m3/hr

Quiet TT AP duct fan with a diameter of 100 mm and a capacity of 170/240 cubic metres per hour. Two-speed motor with ball bearings.

Low-profile duct fan Dalap AP 100 QUIET with a diameter of 100 mm and ball bearings.

The fan cover with high aerodynamic performance is made of high quality steel. The motor with impeller and terminal box is attached to the fan housing with screws to ensure quiet and vibration-free operation. The special shape of the impeller's blades increases the airflow speed and provides higher pressure and capacity compared to the standard model. This fan has an external electrical junction box for easier installation on the power supply.

The single-phase motor with ball bearings has two speeds that can be switched with an external switch (not included). The motor is equipped with an automatic restart. Protection class IPX4. The service life of the motor is approximately 40,000 hours.

The Dalap AP 100 Quiet fan fully meets the requirements for high pressure and yet low noise. The fan is used in rooms with high humidity, such as bathrooms, kitchens, offices, greenhouses, garden centers, etc. Due to its technical parameters, it is suitable for extraction in pipes up to 12 meters. This pipe fan is compatible with all round pipes with a diameter of 100 mm in our range.

It is not recommended to control the fan with an external speed controller below 80% of its power as this may cause motor damage.

PARAMETER

Sound pressure level (noise) 24/29 dB/3 m

color black

CE certification mark

Weight 4.6 kg

frequency 50/60 Hz

Maximum temperature 60 °C

Installation Between Pipes

voltage 220/240 V

speed 2030/2630 rpm

current 0.10/0.11 A

diameter 100 mm

air flow 170/240 m³/h

power 24/26 W

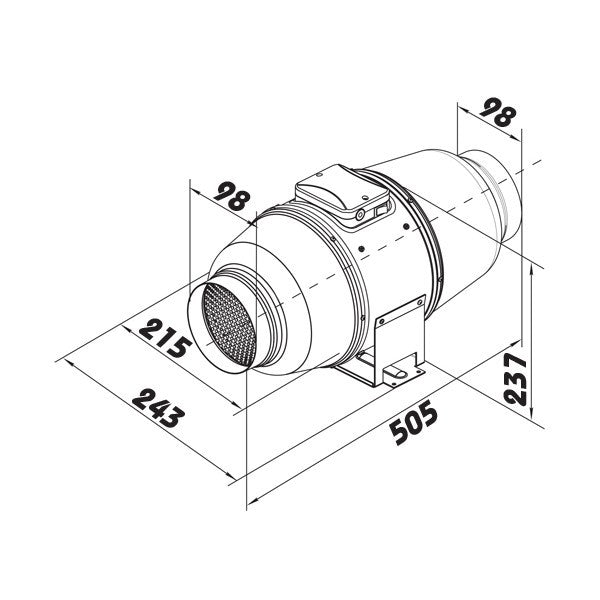

Dimensions See picture

protection class IP X4

lifespan 40,000 hours

Heat resistance No
