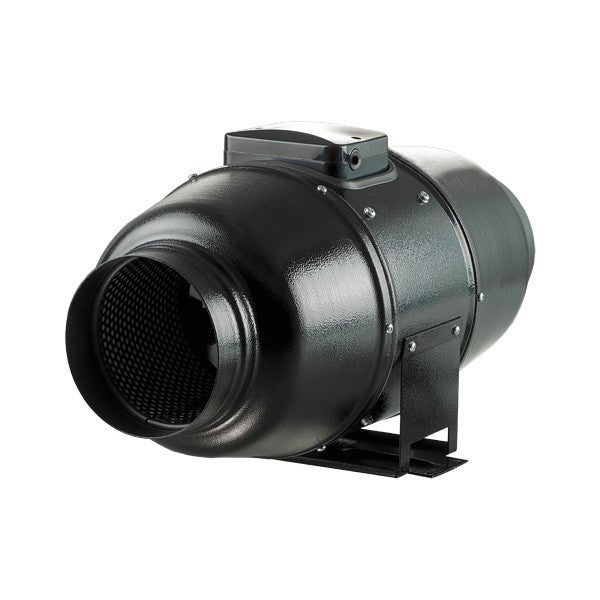

Dalap AP Quiet 150 mm, 405/555 m3/hr

Silenced duct fan TT AP with a diameter of 150 mm and a capacity of 405/555 cubic meters per hour. Two-stage motor with ball bearings.

smoked TT -AP duct fan with a diameter of 150 mm and an output of 405/555 cubic meters per hour. Two-speed motor with ball bearing.

The extremely silent fan for the TT Stille/Dalap AP 150 is compatible with all types of air pipes with a diameter of 150 mm. It is suitable for pipes with a higher pressure loss. TT Stille AP sound fans combine quality parameters and wide options for axial and radial fans.

Main advantages of the soundproof fan TT Silent/Dalap AP 150, 405/555M3/H
strong> • Two-speed motor with thermal fuse
Service life up to 40,000 hours of operation & nbsp;
span> • Semi-radial metal blades guarantee increased airflow condition : Initial; "> • External steel cover is coated with black polymer & nbsp;
> • Extremely quiet operation without vibration & nbsp;
;
span> • =" Background-color: Initial; "> • Maximum air capacity (performance) 405/555M3/H & nbsp;
style =" background-color: initial; "> • 1970 / 2645 revolutions per minute & nbsp;
> span> • Optimal course with pipeline up to a maximum length of 17 meters & nbsp;
• Weight 6.1 kg IP x4 & nbsp;
What is the best way to use TT Stummy/Dalap AP-Pipe fans?
All piping is designed for wide use in kitchens, apartments, offices, growing areas and greenhouses. They will also do their job in workshops, basements and other rooms to require active ventilation. The TT AP 125 soundproof fan can be attached to the wall or ceiling thanks to the mounting plate. A 2-phase motor and ball bearings guarantee maximum performance in both horizontal and vertical positions. The speed of the fan can be set either fixed before the fan starts or using an external switch, which is not included and must be purchased. Detailed instructions on wiring and use can be found in the Czech instructions.
